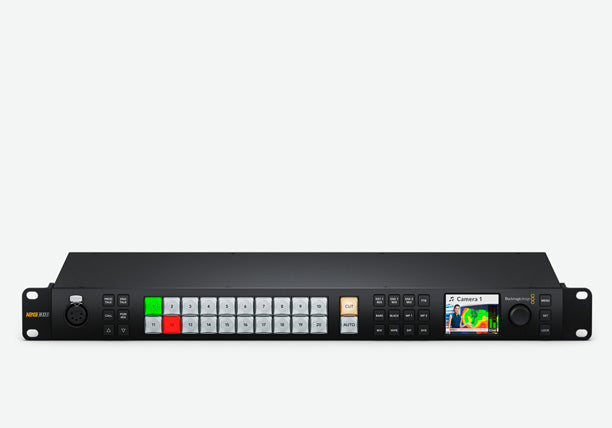

Blackmagic Design ATEM 2 M/E Constellation 4K
A 2 M/E Ultra HD live switcher with 20 standards converted 12G-SDI inputs, eight chroma keyers and a SuperSource.
SKU: BLA-SWATEMSCN2/2ME2/4K
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM 2 M/E Constellation 4K is a high performance live production switcher that delivers serious processing power for Ultra HD broadcasts. With 20 standards converted 12G-SDI inputs, 12 aux outputs and two independent mix effects rows, it is built for larger multi camera shows that demand flexibility and headroom.
Eight ATEM Advanced Chroma Keyers, two DVEs and a SuperSource processor let you build sophisticated layered graphics and effects. A built in 48 channel Fairlight audio mixer and integrated front control panel make it a complete production system in a compact rack mount chassis.
Key Features
- 20 standards converted 12G-SDI inputs supporting 1.5G to 12G rates
- 12 x 12G-SDI aux outputs for flexible routing
- 2 M/E rows with 8 ATEM Advanced Chroma Keyers
- 2 DVEs plus 1 SuperSource processor
- 2 configurable multiview outputs
- Built in 48 channel Fairlight audio mixer with EQ and dynamics
- USB-C webcam output for direct streaming
Ideal For
- Multi camera concerts and live events in Ultra HD
- Sports and esports broadcasts
- Large houses of worship
- Studio and OB van installations
- Corporate and conference production
Specifications
- 20 x 12G-SDI inputs with standards conversion
- 12 x 12G-SDI aux outputs
- 2 M/E rows, 8 chroma keyers, 2 DVEs, 1 SuperSource
- Supports HD up to 2160p60 Ultra HD
- 48 channel Fairlight audio mixer
- USB-C webcam output at 720p or 1080p
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 20 x 12G-SDI with standards conversion |
| SDI Aux Outputs | 12 x 12G-SDI |
| SDI Rates | 1.5G, 3G, 6G and 12G |
| M/E Rows | 2 mix effects rows |
| Keyers | 8 ATEM Advanced Chroma Keyers |
| DVEs | 2 DVEs |
| SuperSource | 1 processor |
| Multiviews | 2 configurable outputs |
| HD Formats | 720p, 1080i and 1080p |
| Ultra HD Formats | 2160p up to 2160p60 |
| Audio Mixer | 48 channel Fairlight with 6 band EQ and dynamics |
| Streaming Output | USB-C webcam at 720p or 1080p |
| Talkback | 5-pin XLR headset |
Two M/E in Ultra HD
Two independent mix effects rows with 20 standards converted 12G-SDI inputs give you the power for complex Ultra HD productions up to 2160p60. Mixed format sources are converted automatically at each input.
Advanced Keying and Effects
Eight ATEM Advanced Chroma Keyers, two DVEs and a SuperSource processor let you build rich layered graphics and effects. There is plenty of headroom for sophisticated live shows.
48 Channel Fairlight Audio
A built in 48 channel Fairlight mixer provides 6 band parametric EQ plus compressor, limiter, expander and gate. You get full broadcast grade audio control without any external hardware.
