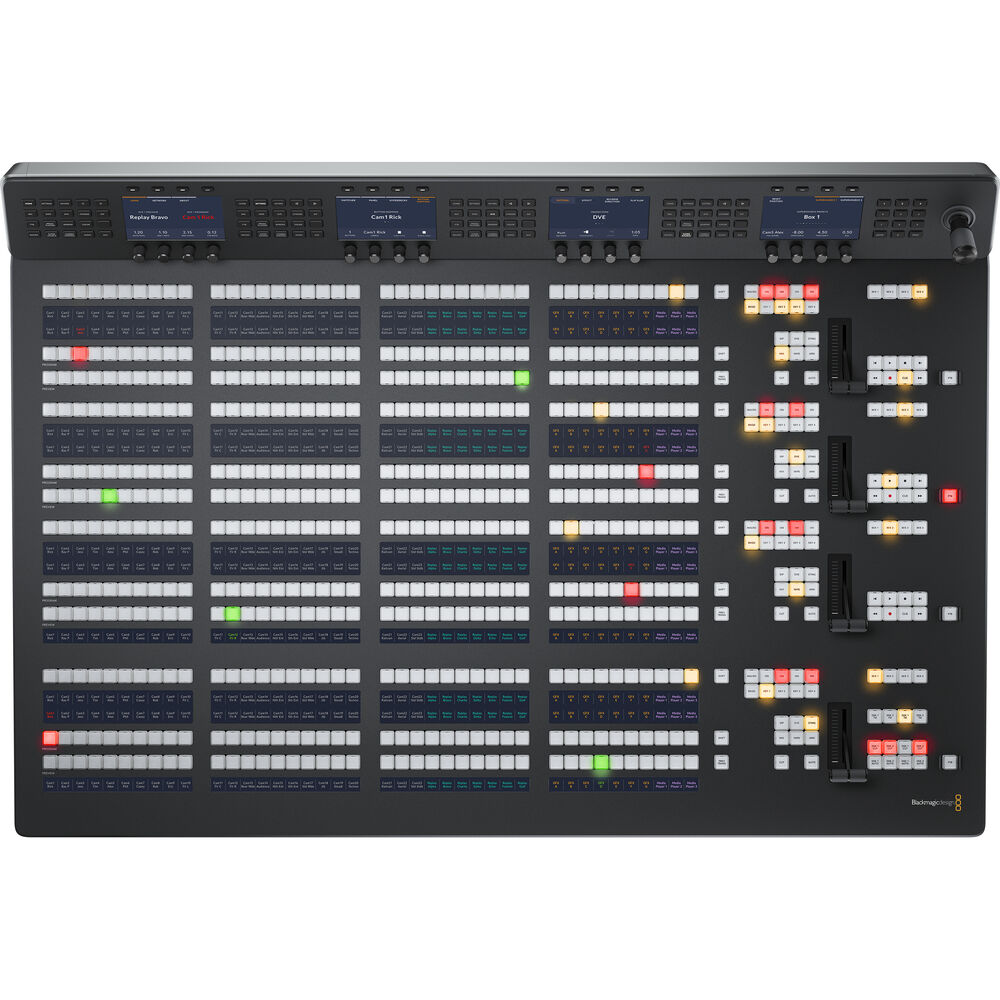

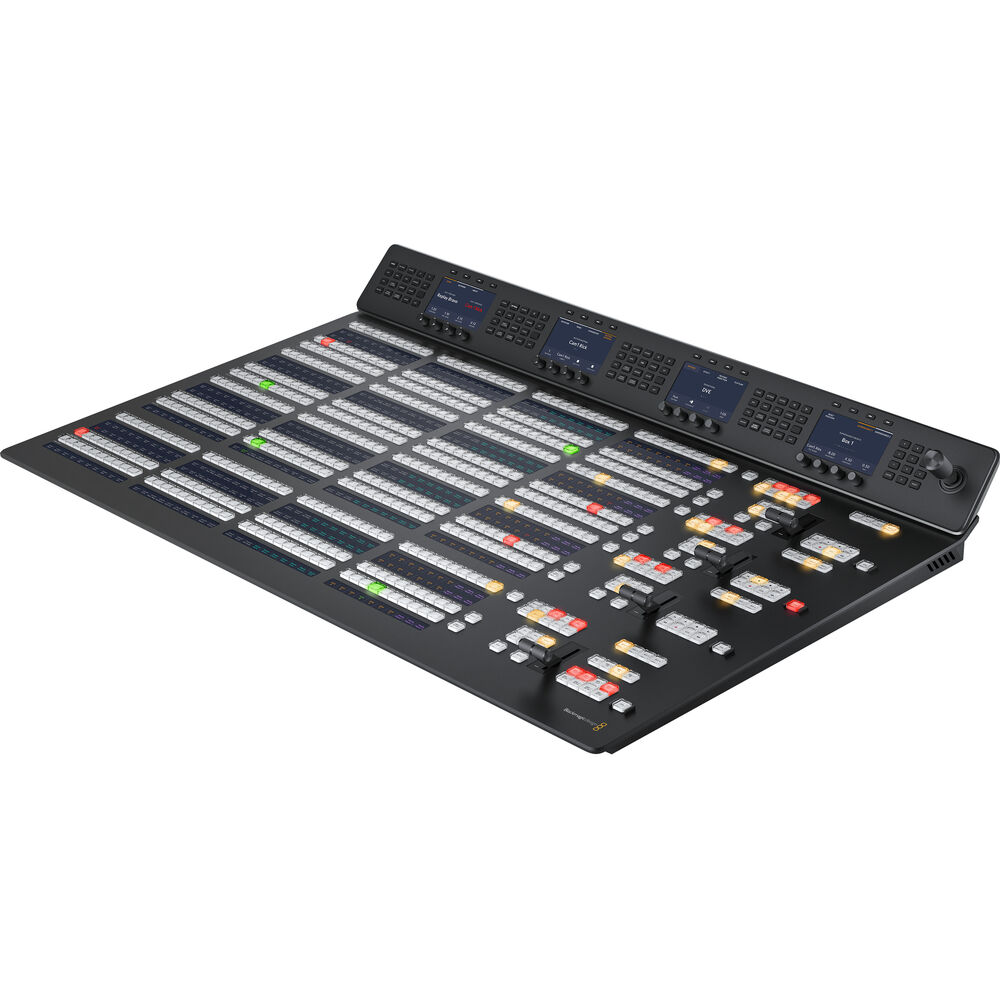

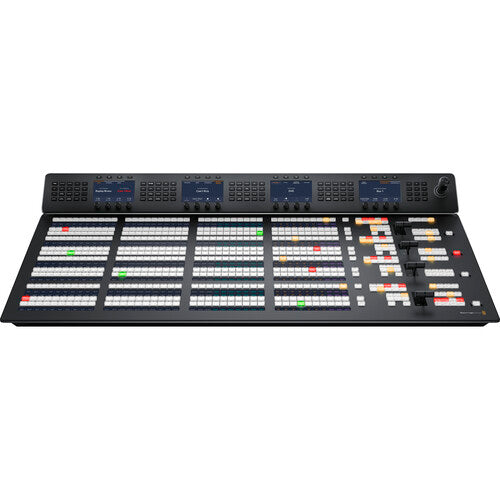

Blackmagic Design ATEM 4 M/E Advanced Panel 40
Flagship four M/E hardware control panel for ATEM switchers, with 40 input buttons per row and four macro banks.
SKU: BLA-SWPANELADV4ME40
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM 4 M/E Advanced Panel 40 is the top of the range hardware control surface for ATEM live production switchers, with four full M/E rows and 40 input buttons on each row. It is engineered for the most demanding broadcast operations, giving operators direct, single press control over an enormous number of sources and layers.
Four independent system control LCDs, 24 labelling LCDs for every button on every row and four banks of 40 macro buttons make even the most complex live shows fast, organised and repeatable.
Key Features
- Four M/E rows with 40 input buttons per row
- Four independent system control LCDs, one per row
- 24 LCDs for custom labelling of every button on every row
- Professional 3-axis joystick and weighted T-bar fader
- Four banks of 40 dedicated macro buttons
- 20 on-air indicators and dedicated DSK transition selectors
- Redundant dual power supplies for reliable live operation
Ideal For
- Major broadcast networks and master control rooms
- Large outside broadcast trucks and flyaway kits
- Stadium and arena multi camera production
- High end sports and entertainment galleries
- Premium production facilities and rental fleets
Specifications
- 4 M/E rows, 40 input buttons per row, 80 shifted crosspoints per row
- 4 system control LCDs and 24 button labelling LCDs
- 3-axis joystick, T-bar fader and 4 banks of 40 macro buttons
- 4x 10/100/1000 BASE-T Ethernet with loop output, USB-C for firmware
- Dual 100 to 240V AC redundant power, 250W
- Operating temperature 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Product type | ATEM 4 M/E Advanced hardware control panel |
| M/E rows | 4 |
| Input buttons | 40 direct per row, 80 shifted per row |
| System control LCDs | 4, one per row |
| Button labelling LCDs | 24, every button on every row |
| Fader bar | 1 weighted T-bar |
| Joystick | Professional 3-axis |
| Macro buttons | 4 banks of 40 |
| On-air indicators | 20 |
| Network | 4x 10/100/1000 BASE-T Ethernet with loop output |
| Firmware port | USB-C |
| Power | Dual 100 to 240V AC redundant, 250W |
| Operating temperature | 0 to 40 degrees Celsius |
| Warranty | 1 year limited |
Four Full M/E Rows
Four independent M/E rows, each with 40 input buttons, give the largest productions complete direct control over every source and layer. Four system control LCDs keep each row organised and clear.
Label Every Button
With 24 LCDs for custom labelling of every button on every row, operators always know exactly what each control does. Four banks of 40 macro buttons make complex sequences a single press away.
Built for the Biggest Shows
Dual redundant 100 to 240V AC power keeps the panel running through critical live broadcasts. Four Gigabit Ethernet ports with loop output let it integrate into the largest studio and OB infrastructures.
