Blackmagic Design ATEM Camera Control Panel
Broadcast-grade hardware control panel for shading up to 4 cameras, each with its own joystick and LCD display.
SKU: BLA-SWPANELCCU4
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM Camera Control Panel is a broadcast-grade hardware control unit that lets you manage up to 4 cameras simultaneously with professional CCU-level controls. Each camera gets its own LCD menu display and three-axis joystick for precise, independent shading.
Built for serious live production, it connects over redundant Gigabit Ethernet and supports Blackmagic URSA Mini, URSA Broadcast, Studio and Micro Studio cameras through ATEM Software Control.
Key Features
- Independent control of up to 4 cameras, each with its own joystick
- Four LCD menu displays for clear, dedicated per-camera readouts
- Four precision three-axis joysticks for iris and master black
- Dual Gigabit Ethernet with loop output for redundant connectivity
- White and black balance setup with auto iris and coarse control
- On-air and off-air camera status indicators (red and green)
Ideal For
- Multi-camera live broadcast and OB production
- Studio camera shading and CCU operation
- Sports, news and live event coverage
- Houses of worship and large venue productions
Specifications
- Controls up to 4 cameras simultaneously
- 2 x 10/100/1000 BaseT Ethernet with loop output
- Internal 100 to 240V AC plus 12 to 30V DC, 30W consumption
- Four three-axis joysticks and four LCD displays
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Cameras controlled | Up to 4 simultaneously |
| Compatible cameras | URSA Mini, URSA Broadcast, Studio, Micro Studio |
| LCD displays | 4 menu displays |
| Joysticks | 4 x three-axis |
| Preview buttons | 4 |
| Iris control | Auto Iris and Coarse adjustment |
| Setup functions | White and black balance |
| Camera status | Green off air, red on air |

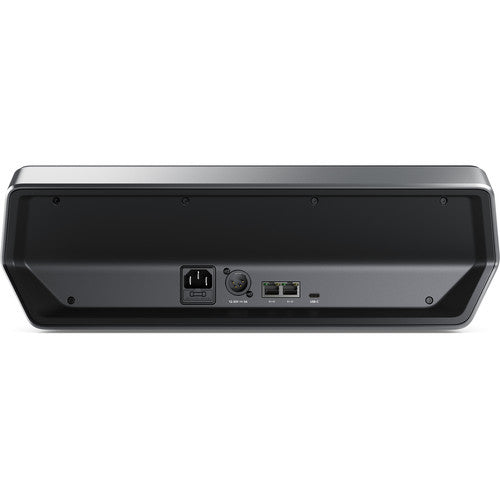

| Ethernet | 2 x 10/100/1000 BaseT with loop output |
| Updates | 1 x USB-C for firmware |
| Power input | Internal 100 to 240V AC |
| DC power | 12 to 30V at 3A, redundant |
| Power consumption | 30W |
| Operating temperature | 0 to 40 degrees C |
| Included | ATEM Camera Control Panel unit |
Control Four Cameras
Shade up to 4 cameras at once, each with its own dedicated three-axis joystick and LCD menu display. Every operator gets independent, tactile control without menu juggling.
Redundant Connectivity
Dual 10/100/1000 BaseT Ethernet with a loop output keeps your camera control online through redundant connections. Internal AC plus 12 to 30V DC input adds power redundancy for mission critical broadcasts.
True Broadcast Workflow
Auto iris, coarse control, and white and black balance setup deliver professional CCU shading. Green off air and red on air indicators give operators instant awareness of every camera state.
