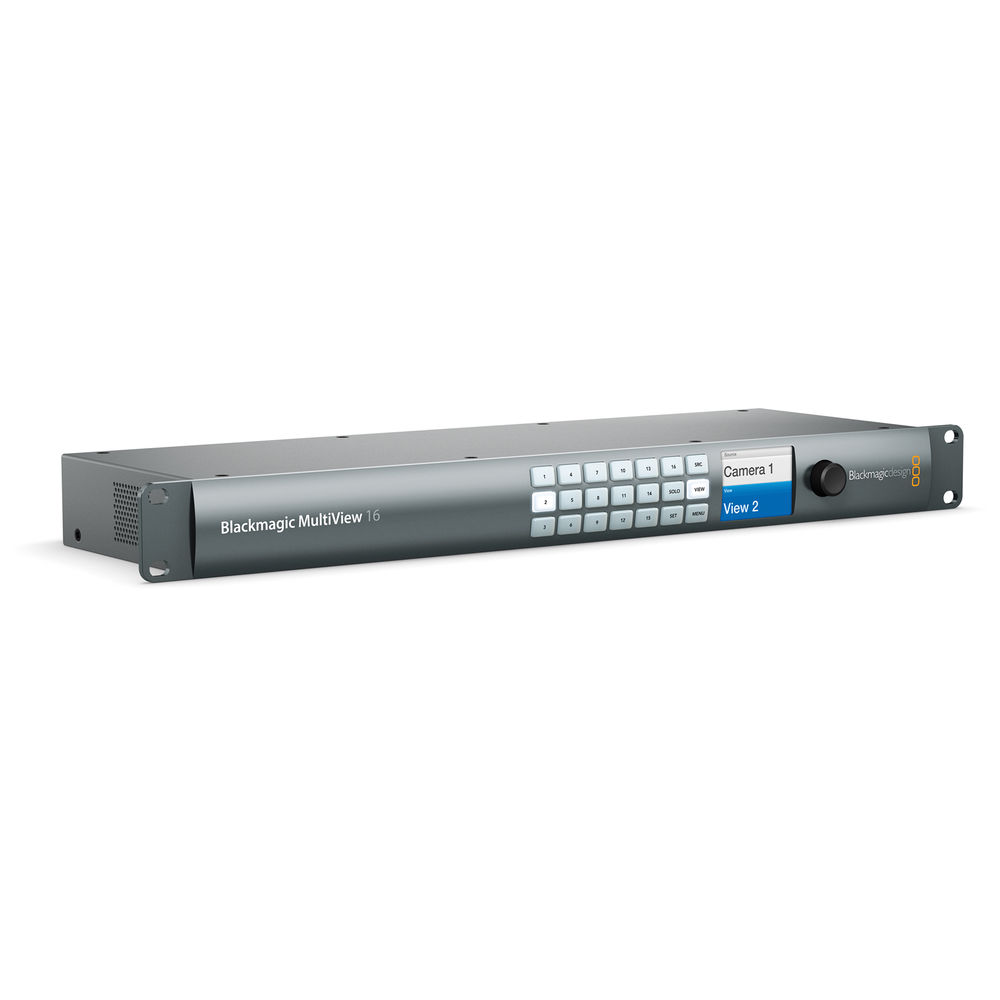

Blackmagic Design MultiView 16
Monitor up to 16 independent SD, HD and Ultra HD SDI sources on a single display from one compact 1RU multi viewer.
SKU: BLA-HDL-MULTIP6G/16
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic MultiView 16 is a professional multi viewer that lets you monitor up to 16 independent SDI sources simultaneously on a single HD or Ultra HD display. Each of the 16 inputs supports SD, HD and 6G-SDI signals, with full frame re-synchronisation so you can mix any combination of formats and frame rates on the same screen at the same time.
Built into a compact 1 rack unit chassis, it features a front panel control with a colour LCD, menu buttons and a scroll wheel for fast, software free source routing and layout changes.
Key Features
- 16 independent 10-bit SD-SDI, HD-SDI and 6G-SDI inputs and 16 loop outputs
- HD-SDI, 6G-SDI and HDMI multiview outputs for HD or Ultra HD monitoring
- Flexible grid layouts including 2x2, 3x3 and 4x4 with full screen solo
- Full frame re-synchronisation on every input for mixed format monitoring
- Built-in 16-button control panel with 2.2 inch LCD and scroll wheel
- VU audio meters per view with 48kHz, 24-bit sampling
Ideal For
- Live broadcast and outside broadcast trucks
- Studio and master control monitoring walls
- Multi camera production and event AV
- Router and signal flow monitoring rooms
Specifications
- 16 x 6G-SDI inputs and 16 loop outputs
- HD-SDI, 6G-SDI and HDMI type A multiview outputs
- Ultra HD up to 2160p30 and 4Kp24 DCI
- 100V to 240V AC, 45 Watts, 1 rack unit
- Operating temperature 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI inputs | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
| Loop outputs | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
| Multiview outputs | 2 x HD-SDI, 2 x 6G-SDI and 1 x HDMI type A |
| SD formats | 525i59.94 NTSC, 625i50 PAL |
| HD formats | 720p, 1080i and 1080p at various frame rates |
| Ultra HD formats | 2160p23.98 to 2160p30 and 4Kp24 DCI |
| Layouts | 2x2, 3x3 and 4x4 with full screen solo |
| Audio meters | VU per view, 48kHz, 24-bit |
| Control | 16-button panel, 2.2 inch LCD and scroll wheel |
| Network control | Ethernet for Videohub, Smart Control, Master Control |
| Power | 100V to 240V AC, 45 Watts |
| Operating temperature | 0 to 40 degrees Celsius |
| Form factor | 1 rack unit |
16 Sources, One Screen
View up to 16 independent SDI sources at once on a single HD or Ultra HD display. Flexible 2x2, 3x3 and 4x4 layouts let you build the exact monitoring wall you need.
Mix Any Format
Full frame re-synchronisation on every input means you can combine SD, HD and Ultra HD signals at different frame rates on the same screen, with each input completely independent.
Software Free Control
A built-in 16-button front panel with a colour LCD and scroll wheel gives direct control of routing and layouts. Ethernet also connects Videohub, Smart Control and Master Control panels.
