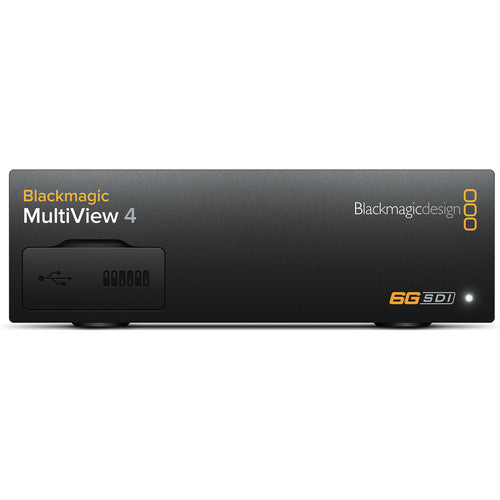

Blackmagic Design MultiView 4
Ultra HD multi viewer with four 6G-SDI inputs to monitor SD, HD and 4K sources up to 2160p30 on a single display.
SKU: BLA-HDL-MULTIP6G/04
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic MultiView 4 is a professional multi viewer with four independent 6G-SDI inputs that handle all SD, HD and Ultra HD formats up to 2160p30. Monitor any combination of SD, HD and 4K sources at the same time on a single HD or Ultra HD display.
Housed in a rugged 1 rack unit machined aluminium frame, it provides a loop output for every input plus SDI and HDMI multi view outputs. Connect an Ultra HD monitor and each view shows full resolution 1920 x 1080 HD.
Key Features
- Four independent 10-bit 6G-SDI inputs up to 2160p30
- Monitor SD, HD and Ultra HD sources in any combination
- Loop output on each input plus SDI and HDMI multi view outputs
- Output to both 1080 HD and 2160p Ultra HD displays
- Custom label overlays and VU audio meters in each view
- Powered by IEC mains or 48V PoE+ over Ethernet
Ideal For
- Live broadcast and OB van monitoring
- Multi-camera studio production
- Ultra HD and 4K production workflows
- On location and remote production setups
- Editing suites and machine rooms
Specifications
- 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI inputs
- SDI rates 270Mb, 1.5G, 3G and 6G
- 1 x HD-SDI and 6G-SDI multi view output plus HDMI output
- RJ45 Ethernet and USB 2.0 for setup, PoE+ capable
- 100 to 240V AC, 16 watts, operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Views | 4 independent SDI sources |
| SDI inputs | 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
| SDI rates | 270Mb, 1.5G, 3G, 6G |
| Loop outputs | 1 per SDI input |
| Multi view output | 1 x HD-SDI and 6G-SDI plus HDMI |
| Max resolution | 2160p30 (Ultra HD) |
| HD standards | 720p, 1080i, 1080p up to 1080p60 |
| Overlays | Custom labels and VU audio meters |
| Video sampling | 10-bit 4:2:2 |
| Control | RJ45 Ethernet and USB 2.0 |
| Power | 100 to 240V AC or 48V PoE+ |
| Power consumption | 16 watts |
| Form factor | 1 rack unit aluminium frame |
| Operating temperature | 0 to 40 degrees C |
| Warranty | 3 year limited |
| Included | MultiView 4 unit, welcome wallet |
Ultra HD 6G-SDI Inputs
Four independent 10-bit 6G-SDI inputs handle all SD, HD and Ultra HD formats up to 2160p30. Monitor any mix of SD, HD and 4K sources together on a single screen.
Loop Outputs and Flexible Display
Every SDI input has a loop output to pass signals on to other devices, plus SDI and HDMI multi view outputs. Connect an Ultra HD monitor and each of the four views shows full resolution 1920 x 1080 HD.
Rugged and PoE+ Ready
A 1 rack unit machined aluminium frame is built for the studio, broadcast truck or location. Power it from standard IEC mains or a single 48V PoE+ Ethernet cable to keep cabling simple.
