Blackmagic Design Videohub 10x10 12G
10 input, 10 output 12G-SDI zero latency router in 1RU with full front panel control, up to 2160p60.
SKU: BLA-VHUBSMAS12G010010
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

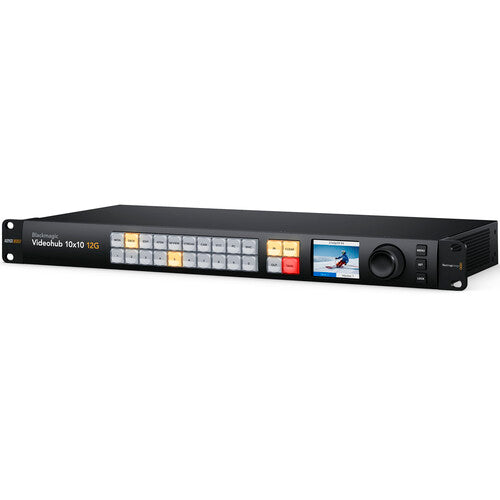

The Blackmagic Videohub 10x10 12G is a zero latency video router with 10 12G-SDI inputs and 10 12G-SDI outputs in a single rack unit. It routes any combination of SD, HD and Ultra HD signals at the same time, with support for every SDI standard up to 2160p60.
A full front panel with 24 buttons, a search dial and a 2.2 inch colour display lets you route connections directly without a computer. SDI re-clocking, automatic standard detection and Ethernet control make it a flexible core router for broadcast and live production systems.
Key Features
- 10 x 12G-SDI inputs and 10 x 12G-SDI outputs in 1RU
- Zero latency routing of mixed SD, HD and Ultra HD signals
- Supports all SDI standards up to 2160p60, plus DVB-ASI
- Front panel with 24 buttons, search dial and 2.2 inch display
- SDI re-clocking and automatic per input standard detection
- 10/100/1000 BASE-T Ethernet control with free Mac and Windows software
- Compatible with Smart Control Pro and Master Control Pro panels
Ideal For
- Broadcast and master control core routing
- Live production and outside broadcast trucks
- Television studios mixing multiple video standards
- Post production and editing facilities
- Streaming and corporate AV installations
Specifications
- 10 x 12G-SDI inputs, 10 x 12G-SDI outputs
- Maximum resolution 2160p60 (4Kp60 DCI)
- Supported rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
- Reference input: Tri-Sync or Black Burst
- 10/100/1000 BASE-T Ethernet and USB-C interface
- Internal 100V to 240V AC power, 20.8W max, 1 rack unit
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 10 x 12G-SDI |
| SDI Outputs | 10 x 12G-SDI |
| Supported Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Max Resolution | 2160p60 (4Kp60 DCI) |
| Reference Input | Tri-Sync or Black Burst |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB Type-C |
| Front Panel | 24 buttons, search dial, 2.2 inch display |
| Software | Free Mac and Windows control |
| Power | Internal 100V to 240V AC |
| Power Usage | 20.8W max |
| Size | 1 rack unit |
| Operating Temp | 0 to 40 degrees C |
| In The Box | Videohub 10x10 12G, software QR card |
Zero Latency 12G-SDI Routing
Route any combination of SD, HD and Ultra HD signals at the same time with no delay. Every input is detected automatically and supports standards up to 2160p60.
Full Front Panel Control
A built in panel with 24 buttons, a search dial and a 2.2 inch colour display lets you route connections directly. There is no need for a computer during live operation.
Compact 1RU Core Router
Ten in, ten out in a single rack unit makes this an efficient core router for studios and trucks. Ethernet control plus free Mac and Windows software add full remote operation.
