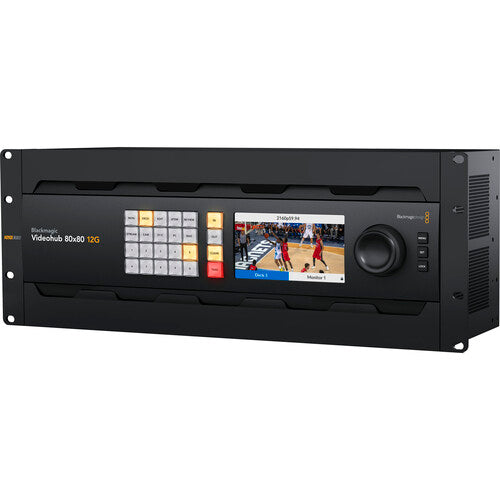

Blackmagic Design Videohub 80x80 12G
High density 80 x 80 12G-SDI broadcast router supporting SD, HD and Ultra HD up to 4K DCI 60p with zero latency.
SKU: BLA-VHUBSMAS12G080080
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Videohub 80x80 12G is a high density broadcast router that handles 80 12G-SDI inputs and 80 12G-SDI outputs in a single 4 rack unit chassis. It is built for large facilities that need to route SD, HD and Ultra HD signals up to 4K DCI at 60p, all at the same time and all with zero latency.
Every input automatically detects the incoming SDI rate, from DVB-ASI and 270Mb SD-SDI through to 12G-SDI, so each connection can carry a different standard. Built in reclocking on the outputs regenerates the signal to reduce loss and jitter over long cable runs.
Key Features
- 80 x 12G-SDI inputs and 80 x 12G-SDI outputs in one 4U chassis
- Automatic SDI rate detection across DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G
- Routes SD, HD and Ultra HD up to 4K DCI 60p with zero latency
- SDI reclocking on all outputs for clean signals over long cables

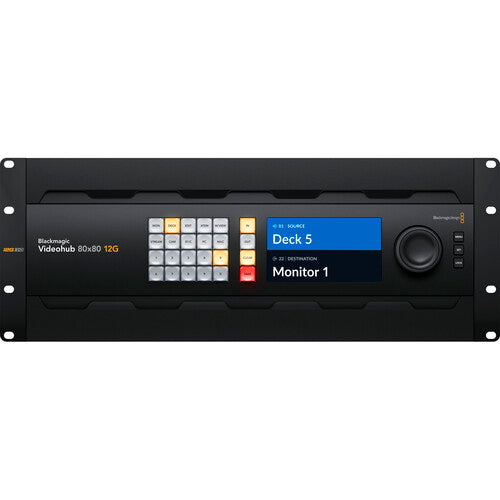

- 5 inch colour display with 24 local control buttons
- Dual internal redundant power supplies for reliability
- USB-C and Ethernet control plus free Videohub software for Mac and Windows
Ideal For
- Broadcast master control and central machine rooms
- Large production studios and outside broadcast trucks
- Live event and stadium signal distribution
- Post production facilities routing many feeds
- Houses of worship and venues with large SDI infrastructure
Specifications
- 80 in and 80 out 12G-SDI routing
- Maximum resolution 4K DCI at 60p
- 92 W maximum power usage
- 2 x internal 100V to 240V AC redundant power supplies
- 4 rack units, approximately 73 lbs
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI inputs | 80 x 12G-SDI |
| SDI outputs | 80 x 12G-SDI |
| SDI rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| SDI reclocking | On all outputs |
| Maximum resolution | 4K DCI at 60p |
| Display | 5 inch colour display |
| Local control buttons | 24 plus 3 menu buttons |
| Control connection | Ethernet 10/100/1000 BASE-T |
| Computer interface | USB-C |
| Power supply | 2 x internal 100V to 240V AC redundant |
| Power usage | 92 W maximum |
| Rack units | 4 |
| Weight | Approximately 73 lbs |
| Warranty | 3 year limited |

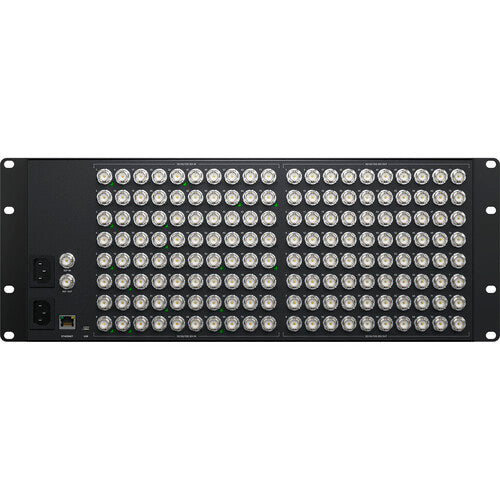

Massive 80 x 80 12G-SDI Routing
Route 80 inputs to 80 outputs in a single 4 rack unit chassis. Every connection supports up to 12G-SDI for SD, HD and Ultra HD signals at the same time.
Automatic Standards Detection
Each input automatically detects the incoming SDI rate from DVB-ASI and 270Mb through to 12G. That means every input can carry a different television standard with zero latency switching.
Built for Reliability
Dual internal redundant power supplies keep the router running if one supply fails. Reclocking on all outputs regenerates signals to reduce loss and jitter over long cable runs.
