Blackmagic Design Videohub Mini 6x2 12G
Compact 12G-SDI video router with six inputs, two outputs, clean switching and front panel control.
SKU: BLA-VHUBSMTI12G0602
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

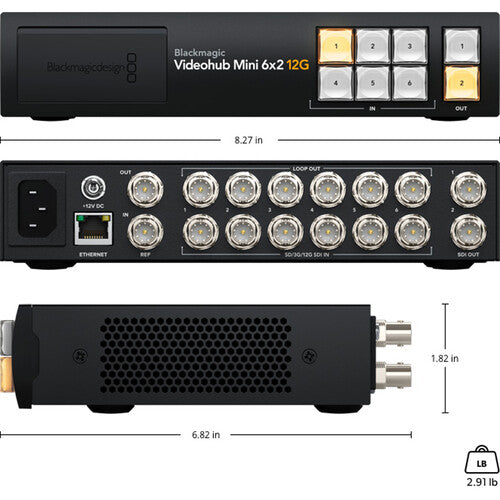

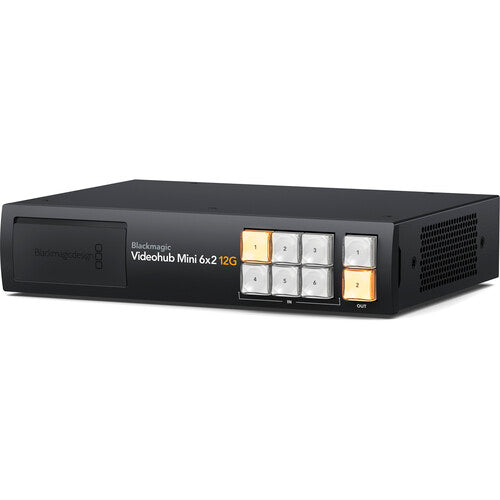

The Blackmagic Videohub Mini 6x2 12G is a compact, zero latency video router that fits into just half a rack width. It lets you route any combination of SD, HD and Ultra HD sources at the same time, with each input automatically detecting its own video standard.
With six 12G-SDI inputs and two 12G-SDI outputs, plus a handy front panel input and USB-C output, it is built for live production where sources need to be switched quickly and cleanly.
Key Features
- Six 12G-SDI inputs and two 12G-SDI outputs in a half rack width chassis.
- Front panel 12G-SDI input and USB-C output for routing sources on the fly.
- Automatic detection of 270Mb SD, 1.5G, 3G level A and B, 6G and 12G-SDI per input.
- Clean switching with input re-sync on all six inputs.
- Eight programmable front panel buttons plus Ethernet control.
- Free router control software for Mac and Windows.
Ideal For
- Live event and studio production switching.
- Outside broadcast trucks and flyaway kits.
- Signal distribution in editing and grading suites.
- Compact installs where rack space is limited.
Specifications
- Six 12G-SDI inputs and two 12G-SDI outputs with reclocking.
- Supports SD, HD, 2K, Ultra HD and 4K DCI up to 60fps.
- Clean switch with input re-sync on all six inputs.
- AC 100 to 240V and 12V DC power, 18.5 Watts maximum.
- Operating temperature 0 to 40 degrees Celsius.
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 6 x 12G-SDI plus front panel input |
| SDI Outputs | 2 x 12G-SDI with front panel mirror |
| USB-C | Front panel, webcam out and setup |
| SDI Standards | 270Mb, 1.5G, 3G level A and B, 6G, 12G |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080p |
| 4K Formats | 2160p and 4K DCI up to 60fps |
| Clean Switch | Input re-sync on all 6 inputs |
| Reference | Tri-Sync or Black Burst input |
| Control | 8 front panel buttons, Ethernet |
| Audio | Embedded SDI audio, 48kHz 24-bit |
| Power | AC 100 to 240V and 12V DC, 18.5 Watts |
| Form Factor | One half rack width |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Router, software download card |
Mixed Format Routing
Each of the six inputs automatically selects between SD, HD and Ultra HD standards, so every input can run a different television standard at once. The router adds zero latency to your signals.
Clean Switching with Reference
Input re-sync on all six inputs gives you clean switches between sources, and a reference input accepts Tri-Sync or Black Burst. Reclocking is applied on all outputs for solid, stable signals.
Front Panel and Remote Control
Eight programmable buttons let you route signals directly on the unit, or automate over Ethernet with the free Mac and Windows software. A front 12G-SDI input and USB-C output let you patch new sources on the fly.
