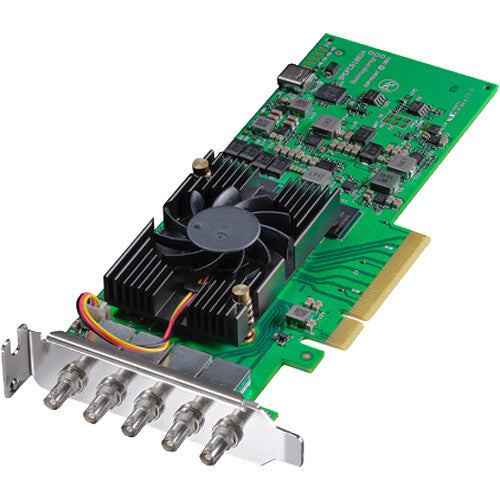

Blackmagic Design DeckLink 8K Pro Mini (Low Profile Bracket)
Low profile 8K digital cinema capture and playback card with four independent 12G-SDI Micro BNC connections.
SKU: BLA-BDLKHCPRO8K12GMINI
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design DeckLink 8K Pro Mini is a low profile 8K digital cinema capture and playback card built for compact and rack mounted workstations. It packs four independent 12G-SDI connections on Micro BNC connectors into a half height card, supporting every format from SD up to 8K DCI.
With high frame rate support, 12-bit RGB 4:4:4 video and full Rec. 2020 colour, it is ideal for next generation high resolution and high dynamic range workflows where space inside the chassis is at a premium.
Key Features
- Four independent 12G-SDI connections on Micro BNC connectors
- Low profile half height design for compact and rack mounted systems
- Supports SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards
- High frame rate capture and playback up to 60 fps in 8K
- 12-bit RGB 4:4:4 video with full Rec. 2020 colour
- Up to 64 channels of embedded audio across the four SDI connections
Ideal For
- Compact and low profile editing workstations
- Rack mounted digital cinema systems
- High dynamic range colour grading and finishing
- 8K capture and playback pipelines
- Visual effects and compositing suites
Specifications
- 4 x independent 12G-SDI on Micro BNC connectors
- Resolutions from SD up to 8K DCI
- Up to 60 fps in 8K
- 8 and 10-bit YUV, 8, 10 and 12-bit RGB
- Full Rec. 2020 colour
- 64 channels of embedded audio total
- Low profile PCI Express card
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Connections | 4 x independent 12G-SDI Micro BNC |
| Form Factor | Low profile half height PCIe card |
| Resolutions | SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI |
| Frame Rates | Up to 60 fps in 8K |
| YUV Sampling | 8 and 10-bit YUV |
| RGB Sampling | 8, 10 and 12-bit RGB 4:4:4 |
| Colour Space | Full Rec. 2020 |
| Embedded Audio | 16 channels per SDI, 64 channels total |
| Connector Type | Micro BNC |
| Computer Interface | PCI Express |
| Use Case | 8K digital cinema capture and playback |
Low Profile 8K Power
A half height design fits compact and rack mounted workstations where full size cards will not. You get full 8K capability without sacrificing chassis space.
Four Independent SDI Channels
Four independent 12G-SDI connections on Micro BNC connectors handle multiple sources at once. Each carries 16 channels of embedded audio for 64 channels in total.
Next Generation Colour
High frame rate support with 12-bit RGB 4:4:4 video and full Rec. 2020 colour suits high dynamic range pipelines. It is built for the most demanding high resolution finishing work.
