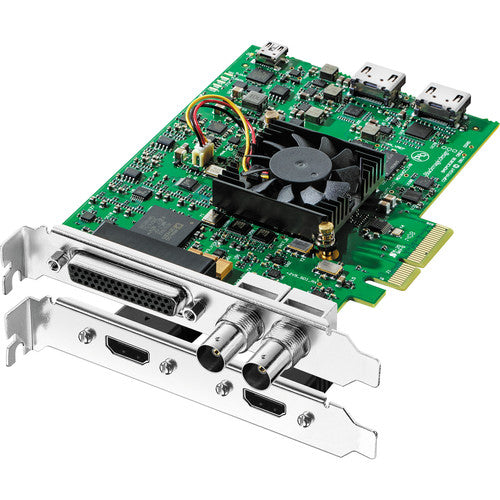

Blackmagic Design DeckLink Studio 4K
Versatile PCIe capture and playback card with 6G-SDI, HDMI and full analog video and audio connections up to Ultra HD.
SKU: BLA-BDLKSTUDIO4K
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design DeckLink Studio 4K is a versatile PCIe capture and playback card that combines modern 6G-SDI and HDMI connections with a full set of analog video and audio connectors. It is built for facilities that need to bridge legacy and current formats in a single card.
Supporting resolutions from SD all the way to Ultra HD and DCI 4K, plus component, composite and S-video analog, AES/EBU and balanced analog audio, the DeckLink Studio 4K is a true all in one solution for archiving, ingest and playout.
Key Features
- SD, HD and Ultra HD 6G-SDI plus HDMI 1.4b connections
- SD and HD component, composite and S-video analog video in and out
- 4 channels of balanced analog audio plus AES/EBU digital audio
- Black Burst and Tri-Sync reference input for genlock
- RS-422 deck control and SD keying support
- Built in hardware down converter
Ideal For
- Archiving and digitising legacy analog tape
- Mixed format ingest and playout facilities
- Broadcast editing and finishing
- Quality control and monitoring
- SD, HD and Ultra HD production workflows
Specifications
- 6G-SDI input and output for SD, HD and Ultra HD
- HDMI 1.4b input and output
- Component, composite and S-video analog connections
- Resolutions up to Ultra HD 3840 x 2160 and DCI 4K 4096 x 2160
- 16 channels of embedded SDI audio in HD, 2K and 4K
- Black Burst and Tri-Sync reference input
- RS-422 deck control
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI | SD, HD and Ultra HD 6G-SDI input and output |
| HDMI | HDMI 1.4b input and output |
| Analog Video | Component, composite and S-video in and out |
| Resolutions | SD up to Ultra HD 3840 x 2160 and DCI 4K 4096 x 2160 |
| Analog Audio | 4 channels balanced analog |
| Digital Audio | 2 channels AES/EBU switchable to 6 channels out |
| Embedded SDI Audio | 16 channels in HD, 2K, 4K, 8 channels in SD |
| Embedded HDMI Audio | 8 channels |
| Reference Input | Black Burst and Tri-Sync |
| Deck Control | RS-422 |
| Conversion | Built in hardware down converter |
| Keying | Supported in SD |
Digital and Analog in One
Modern 6G-SDI and HDMI sit alongside component, composite and S-video analog connections. This makes it ideal for archiving legacy tape and bridging old and new formats.
Flexible Audio Options
Four channels of balanced analog audio and AES/EBU digital audio cover almost any source. Embedded SDI audio supports up to 16 channels in HD, 2K and 4K.
Broadcast Ready Control
Black Burst and Tri-Sync reference input keeps the card locked to your facility, while RS-422 handles deck control. A built in hardware down converter and SD keying add even more flexibility.
