Blackmagic Design HyperDeck Studio HD Pro
Full rack broadcast deck recording ProRes up to Ultra HD to SSD and SD, with 6G-SDI, Ethernet and a metal search dial.
SKU: BLA-HYPERD/ST/DFHP
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The HyperDeck Studio HD Pro is a professional broadcast deck that records and plays back ProRes, DNx and H.264 files to SD cards, 2.5 inch SSDs or external USB drives. It is the full rack width model in the HyperDeck Studio HD range, adding internal SSD slots, a machined metal search dial with electronic clutch and built in Ethernet for advanced master recording and playout.
With 6G-SDI, a dedicated monitoring output, RS-422 deck control and timecode over XLR, the Studio HD Pro is designed to drop straight into broadcast facilities, studios and outside broadcast vehicles.
Key Features
- Records and plays back ProRes, DNxHD, DNxHR and H.264 up to Ultra HD 30fps
- Two SD card slots and two 2.5 inch SSD slots for flexible storage
- Machined metal search dial with electronic clutch for precise jog and shuttle
- 6G-SDI in and out plus HDMI 2.0 in and out
- RS-422 deck control with timecode over XLR and BNC reference
- Built in 1Gb/s Ethernet and USB-C 3.0 expansion
Ideal For
- Broadcast master recording and playout
- Studio and OB van installations
- Live event playback of fill and key content
- Editorial ingest to SSD and SD media
- Networked deck control over Ethernet and RS-422
Specifications
- Codecs: ProRes, DNxHD, DNxHR and H.264
- Connections: 6G-SDI in and out, HDMI 2.0 in and out, USB-C 3.0, Ethernet
- Media: two SD card slots and two 2.5 inch SSD slots
- Power: internal 100 to 240V AC plus 12V DC 4-pin XLR input
- Format: full rack width, 1 RU height
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Max recording resolution | Ultra HD 2160p30 |
| SDI | 1 input, 2 outputs (6G-SDI) with loop out |
| SDI monitoring | 1 dedicated monitoring output |
| HDMI | 1 HDMI 2.0 input, 1 HDMI 2.0 output |
| Codecs | ProRes, DNxHD, DNxHR, H.264 |
| Recording media | 2 SD card slots and 2 x 2.5 inch SSD slots |
| External expansion | USB-C 3.0 up to 5Gb/s |
| Ethernet | 1Gb/s |
| RS-422 | 1 input and 1 output for deck control |
| Timecode | XLR timecode input and output |
| Reference | BNC reference input and output |
| Embedded audio | 16 channel SDI, 8 channel HDMI |
| Control | 2.2 inch LCD, 16 buttons, metal search dial with clutch |
| Power | Internal 100 to 240V AC and 12V DC 4-pin XLR |
| Form factor | Full rack width, 1 RU height |
Internal SSD And SD Storage
Two 2.5 inch SSD slots and two SD card slots give you fast, high capacity recording with automatic media switching for continuous capture. You can also expand to external USB-C disks when you need more room.
Precision Search Dial
A machined metal search dial with electronic clutch delivers smooth, accurate jog and shuttle control. Combined with sixteen dedicated transport buttons, it gives editors and operators true hands on confidence.
Broadcast Ready Connectivity

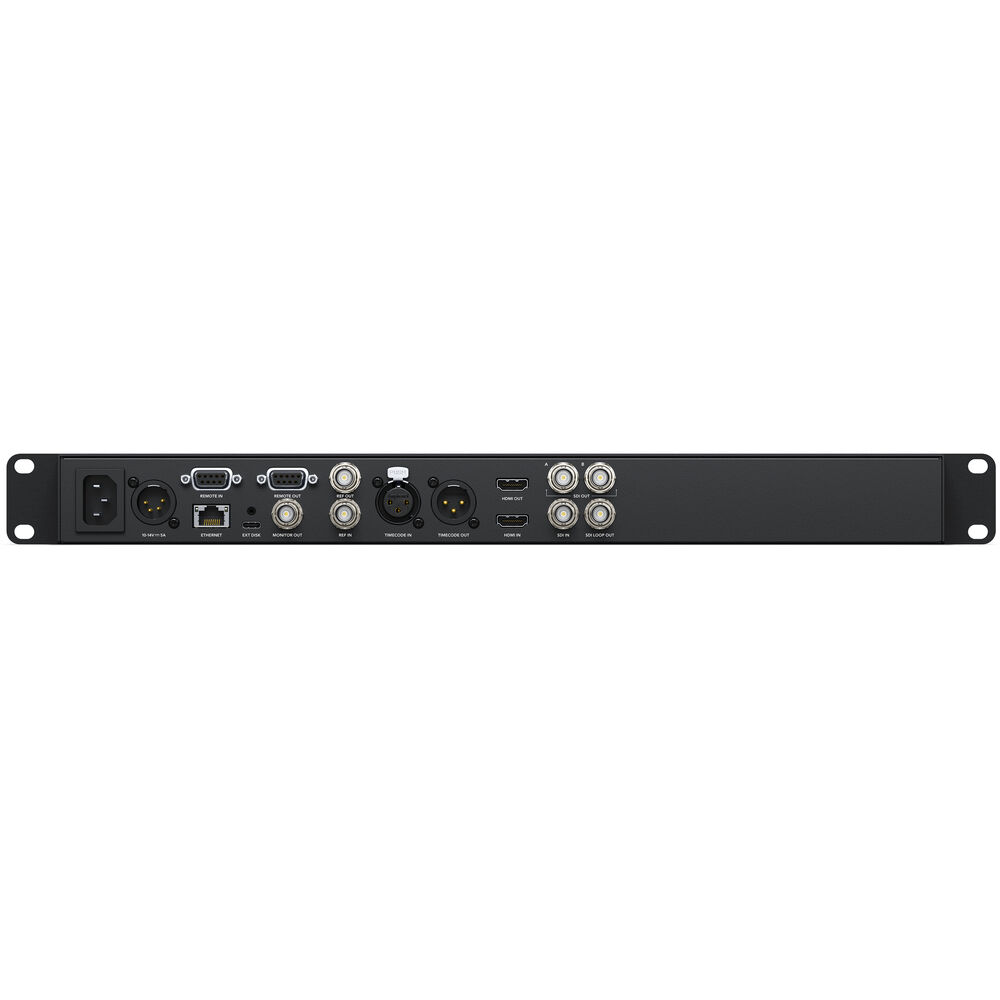

6G-SDI in and out, RS-422 deck control, XLR timecode and BNC reference let the unit integrate cleanly into professional facilities. Built in 1Gb/s Ethernet adds networked control and file transfer.
