Blackmagic Design Mini Converter - Sync Generator
Studio sync generator with 6 crystal stabilized Blackburst and Tri-Sync reference outputs to genlock all your video equipment.
SKU: BLA-CONVMSYNC
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter Sync Generator provides 6 crystal stabilized video reference outputs so you can lock all the video equipment in your studio to a common timing source. It generates either high definition Tri-Sync or standard definition Blackburst reference signals.
Genlocking your cameras, switchers and other gear to a single reference removes timing errors and glitches when switching between sources. Compact and reliable, it is ideal for small studios and outside broadcasts.
Key Features
- 6 crystal stabilized video reference outputs
- Generates HD Tri-Sync and SD Blackburst reference signals
- Locks an entire studio of equipment to one timing source
- Supports a wide range of SD and HD reference standards
- USB for software configuration and updates
- Rugged compact metal housing for studio or field use
Ideal For
- Genlocking cameras and switchers in small studios
- Outside broadcast and live event timing reference
- Removing glitches when switching between sources
- Synchronising multi-camera productions
- Providing house sync in compact facilities
Specifications
- 6 reference outputs, Blackburst and Tri-Sync
- SD standards NTSC and PAL
- HD standards including 720p and 1080i and 1080p
- USB for configuration and updates
- Power consumption 3 Watts, 12V DC
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Function | Video reference and sync generator |
| Reference outputs | 6 crystal stabilized outputs |
| Output types | Blackburst (SD) and Tri-Sync (HD) |
| SD standards | 525i59.94 NTSC, 625i50 PAL |
| HD standards | 720p50 to 720p60, 1080i and 1080p |

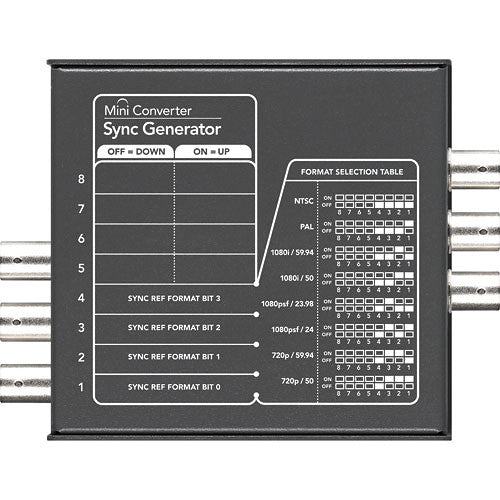

| Configuration | Mini switches and USB software |
| Connectivity | USB for updates and setup |
| Power consumption | 3 Watts |
| Power input | 12V DC, universal supply included |
| Operating temperature | 0 to 40 degrees C |
| Storage temperature | -20 to 45 degrees C |
| Humidity | 0% to 90% non-condensing |
| Housing | Rugged compact metal |
Six Reference Outputs
Six crystal stabilized video reference outputs let you lock every piece of video equipment in your studio to one timing source. It generates HD Tri-Sync or SD Blackburst signals.
Glitch Free Switching
Genlocking your cameras and switchers to a common reference removes timing errors. You get clean, glitch free transitions when cutting between sources.
Small Studio and Field Ready
The compact metal housing draws just 3 Watts and configures over USB. It is perfectly sized for small studios and outside broadcast rigs.
