Blackmagic Design DeckLink Quad HDMI Recorder
PCIe capture card that records from four independent HDMI 2.0b sources at the same time, up to 4K DCI.
SKU: BLA-BDLKDVQDHDMI4K
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

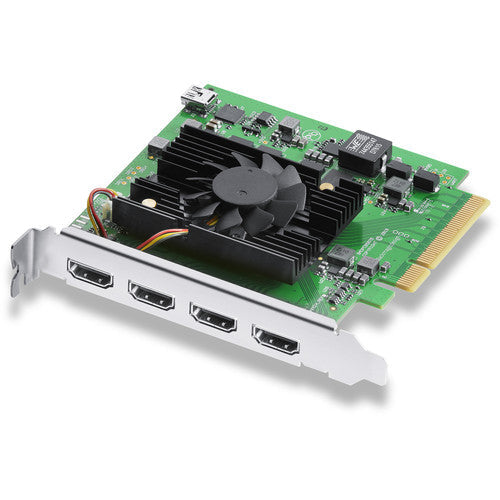

The Blackmagic Design DeckLink Quad HDMI Recorder is a high performance PCIe capture card that lets you record from four independent HDMI sources at the same time. Each of the four HDMI 2.0b inputs works like a separate capture card, automatically detecting and switching between SD, HD, Ultra HD, 4K DCI and even computer display formats.
It is the ideal solution for live multi camera switching, game capture, esports production and streaming, working seamlessly with software such as Wirecast, vMix and OBS for professional broadcast workflows.
Key Features
- Four independent HDMI 2.0b inputs for simultaneous capture from four sources
- Captures SD, HD, Ultra HD, 4K DCI and computer formats with automatic format detection
- HDR support with static metadata, plus HLG and PQ transfer characteristics
- 8, 10 and 12-bit RGB 4:4:4 and YUV 4:2:2 colour precision
- 8 channels of embedded HDMI audio per input
- Works with Wirecast, vMix and OBS for live streaming and switching
- PCIe 8-lane Gen 3 interface for high bandwidth, low latency capture
Ideal For
- Live multi camera production and switching
- Game capture, esports and streaming
- Broadcast and webcasting facilities
- Software based switchers such as vMix and Wirecast
- Post production capture and ingest
Specifications
- 4 x HDMI 2.0b inputs
- Resolutions up to 4K DCI at frame rates from 23.98p to 60p
- 8 channels of embedded audio per input
- PCIe 8-lane Generation 3 (fits 8 and 16-lane slots)
- Power consumption 23W
- Operating temperature 5 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| HDMI Inputs | 4 x HDMI 2.0b independent inputs |
| Resolutions | SD, HD, Ultra HD, 4K DCI and computer formats |
| Frame Rates | 23.98p to 60p |
| Colour Precision | 8, 10 and 12-bit RGB 4:4:4, 8 and 10-bit YUV 4:2:2 |
| HDR | Static metadata, HLG and PQ supported |
| Audio | 8 channels embedded per HDMI input |
| PCIe Interface | PCIe 8-lane Generation 3 (8 and 16-lane slots) |
| Power Consumption | 23W |
| Software | Media Express, Desktop Video, Disk Speed Test |
| Third Party | Wirecast, vMix, OBS compatible |
| Operating Temperature | 5 to 40 degrees C |
| System | macOS, Windows 10 64-bit |
Four Captures In One Card
Four independent HDMI 2.0b inputs act as four separate capture cards. Record from four different sources simultaneously in any combination of SD, HD, Ultra HD and 4K.
Built For Live Streaming
Works seamlessly with Wirecast, vMix and OBS, making it perfect for live switching, esports and webcasting straight from your workstation.
HDR And Deep Colour
Full HDR support with static metadata, HLG and PQ, plus up to 12-bit RGB 4:4:4 colour precision for accurate, high quality capture.
