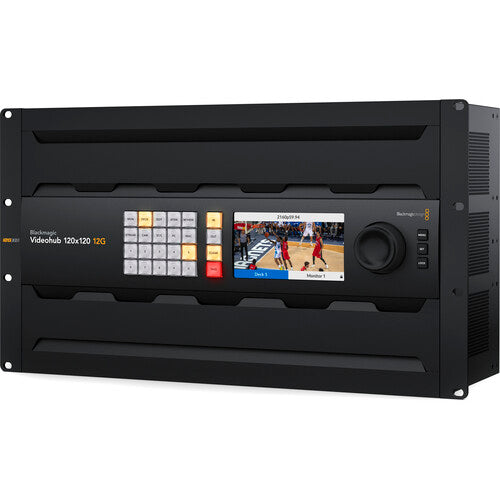

Blackmagic Design Videohub 120x120 12G
High capacity 120 x 120 12G-SDI broadcast router routing SD, HD and Ultra HD up to 2160p60 with zero latency.
SKU: BLA-VHUBSMAS12G120120
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Videohub 120x120 12G is a high capacity broadcast router with 120 12G-SDI inputs and 120 12G-SDI outputs in a single 6 rack unit chassis. It is designed for large broadcast and production facilities that need to route SD, HD and Ultra HD signals up to 2160p60 with zero latency.
Each input automatically detects the incoming SDI rate, from DVB-ASI and 270Mb SD-SDI through to 12G-SDI, so every connection can run a different television standard. Reclocking on all SDI outputs regenerates the signal to reduce loss and jitter on long cable runs, and crosspoint connections are preserved and restored instantly at power on.
Key Features

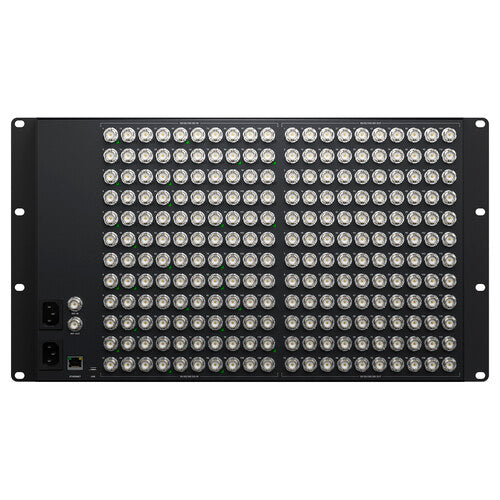

- 120 x 12G-SDI inputs and 120 x 12G-SDI outputs in one 6U chassis
- Automatic SDI rate detection across DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G
- Routes SD, HD and Ultra HD up to 2160p60 with zero latency
- SDI reclocking on all outputs for clean signals over long cables

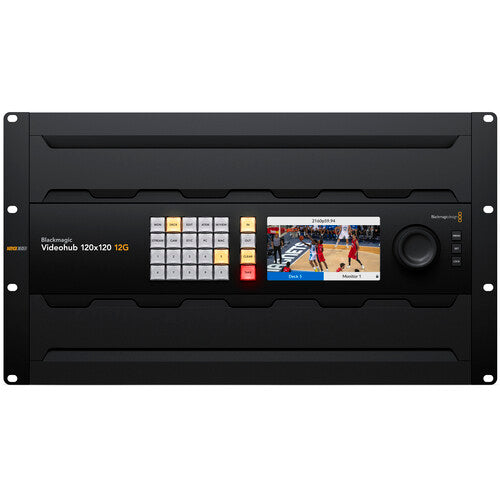

- 5 inch colour display with 24 local control buttons and search dial
- Dual internal redundant power supplies for reliability
- Free Videohub software control panel for Mac and Windows
Ideal For
- Broadcast master control and central machine rooms
- Large studios and outside broadcast trucks
- Live sport and stadium signal distribution
- Post production facilities routing many simultaneous feeds
- Major venues with large scale SDI infrastructure
Specifications
- 120 in and 120 out 12G-SDI routing
- Maximum resolution 2160p60
- 140 W maximum power usage
- 2 x internal 100V to 240V AC redundant power supplies
- 6 rack units
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI inputs | 120 x 12G-SDI |
| SDI outputs | 120 x 12G-SDI |
| SDI rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| SDI reclocking | On all outputs |
| Maximum resolution | 2160p60 |
| Display | 5 inch colour display |
| Local control | 24 buttons plus 3 menu buttons and search dial |
| Power supply | 2 x internal 100V to 240V AC redundant |
| Power usage | 140 W maximum |
| Crosspoint memory | Preserved and restored at power on |
| Rack units | 6 |
| Warranty | 3 year limited |
Huge 120 x 120 12G-SDI Capacity
Route 120 inputs to 120 outputs in a single 6 rack unit chassis. Every connection handles up to 12G-SDI for SD, HD and Ultra HD signals at the same time.
Automatic Standards Detection
Each input automatically detects the incoming SDI rate from DVB-ASI and 270Mb through to 12G. Every input can carry a different television standard with zero latency switching.
Redundant and Reliable
Dual internal redundant power supplies keep the router running if one supply fails. Crosspoint connections are preserved and instantly restored at power on so your routing survives a reboot.
