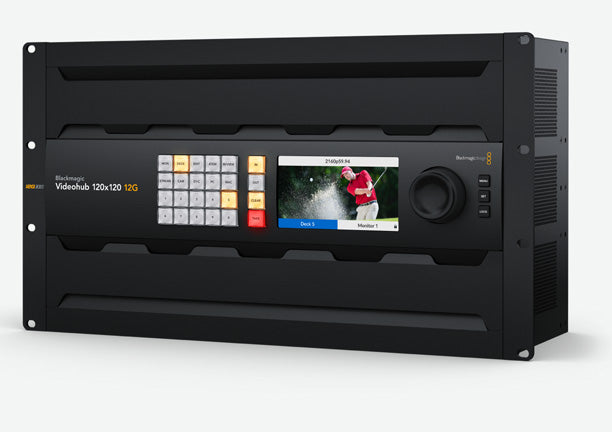

Blackmagic Design Videohub 120x120 12G

The Blackmagic Videohub 120x120 12G is a high capacity broadcast router with 120 12G-SDI inputs and 120 12G-SDI outputs in a single 6 rack unit chassis. It is designed for large broadcast and production facilities that need to route SD, HD and Ultra HD signals up to 2160p60 with zero latency.

Each input automatically detects the incoming SDI rate, from DVB-ASI and 270Mb SD-SDI through to 12G-SDI, so every connection can run a different television standard. Reclocking on all SDI outputs regenerates the signal to reduce loss and jitter on long cable runs, and crosspoint connections are preserved and restored instantly at power on.

Key Features

• 120 x 12G-SDI inputs and 120 x 12G-SDI outputs in one 6U chassis
• Automatic SDI rate detection across DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G
• Routes SD, HD and Ultra HD up to 2160p60 with zero latency
• SDI reclocking on all outputs for clean signals over long cables
• 5 inch colour display with 24 local control buttons and search dial
• Dual internal redundant power supplies for reliability
• Free Videohub software control panel for Mac and Windows

Ideal For

• Broadcast master control and central machine rooms
• Large studios and outside broadcast trucks
• Live sport and stadium signal distribution
• Post production facilities routing many simultaneous feeds
• Major venues with large scale SDI infrastructure

Specifications

• 120 in and 120 out 12G-SDI routing
• Maximum resolution 2160p60
• 140 W maximum power usage
• 2 x internal 100V to 240V AC redundant power supplies
• 6 rack units

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
