Blackmagic Design Videohub 40x40 12G
40 input, 40 output 12G-SDI zero latency router in 2RU with dual redundant power and a 5 inch front panel display.
SKU: BLA-VHUBSMAS12G040040
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Videohub 40x40 12G is a high density zero latency video router with 40 12G-SDI inputs and 40 12G-SDI outputs in a 2 rack unit chassis. It routes any combination of SD, HD and Ultra HD signals at the same time, with support for every SDI standard up to 2160p60 and dual redundant power for mission critical installations.
A large front panel with 24 buttons, a spin knob and a 5 inch colour display gives fast direct routing without a computer. SDI re-clocking, automatic standard detection and Ethernet control make it a robust core router for major broadcast and live production facilities.
Key Features
- 40 x 12G-SDI inputs and 40 x 12G-SDI outputs in 2RU
- Zero latency routing of mixed SD, HD and Ultra HD signals
- Supports all SDI standards up to 2160p60, plus DVB-ASI
- Front panel with 24 buttons, spin knob and 5 inch colour display
- Dual redundant internal power supplies for reliability
- 10/100/1000 BASE-T Ethernet control with free Mac and Windows software
- Compatible with Smart Control Pro and Master Control Pro panels
Ideal For
- Large broadcast and master control core routing
- Outside broadcast trucks and major live events
- Television networks mixing multiple video standards
- Mission critical facilities needing redundant power
- Large post production and playout installations
Specifications

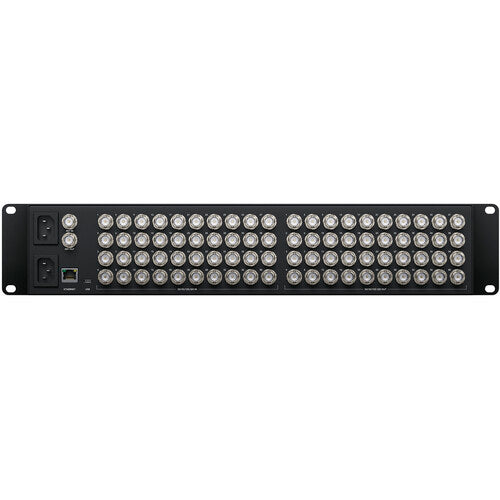

- 40 x 12G-SDI inputs, 40 x 12G-SDI outputs
- Maximum resolution 2160p60 (4Kp60 DCI)
- Supported rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
- Reference input: Tri-Sync or Black Burst with loop output
- 10/100/1000 BASE-T Ethernet and USB-C interface
- 2 x internal 100V to 240V AC redundant power, 46.5W max, 2 rack units
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 40 x 12G-SDI |
| SDI Outputs | 40 x 12G-SDI |
| Supported Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Max Resolution | 2160p60 (4Kp60 DCI) |
| Reference Input | Tri-Sync or Black Burst with loop |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB Type-C |
| Front Panel | 24 buttons, spin knob, 5 inch display |
| Software | Free Mac and Windows control |
| Power | 2 x internal 100V to 240V AC redundant |
| Power Usage | 46.5W max |
| Size | 2 rack units |
| Operating Temp | 0 to 40 degrees C |
| In The Box | Videohub 40x40 12G, software QR card |
High Density 12G-SDI Routing
Forty inputs and forty outputs route any combination of SD, HD and Ultra HD signals at the same time with no delay. Every connection supports standards up to 2160p60.
Dual Redundant Power
Two internal power supplies keep the router running if one source fails. This makes it dependable for mission critical broadcast and master control installations.

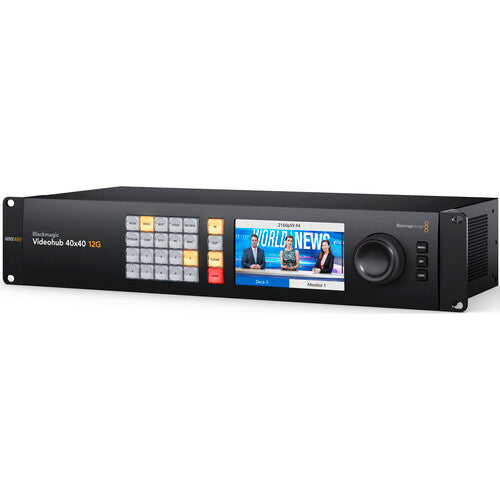

Large Front Panel Control
A 5 inch colour display, 24 buttons and a spin knob with electronic clutch give fast, direct routing at the rack. Ethernet control plus free Mac and Windows software add full remote operation.
