Blackmagic Design Videohub 40x40 12G

The Blackmagic Videohub 40x40 12G is a high density zero latency video router with 40 12G-SDI inputs and 40 12G-SDI outputs in a 2 rack unit chassis. It routes any combination of SD, HD and Ultra HD signals at the same time, with support for every SDI standard up to 2160p60 and dual redundant power for mission critical installations.

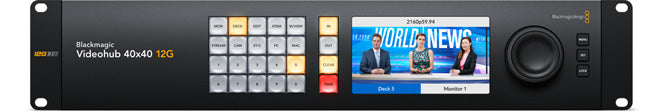

A large front panel with 24 buttons, a spin knob and a 5 inch colour display gives fast direct routing without a computer. SDI re-clocking, automatic standard detection and Ethernet control make it a robust core router for major broadcast and live production facilities.

Key Features

• 40 x 12G-SDI inputs and 40 x 12G-SDI outputs in 2RU
• Zero latency routing of mixed SD, HD and Ultra HD signals
• Supports all SDI standards up to 2160p60, plus DVB-ASI
• Front panel with 24 buttons, spin knob and 5 inch colour display
• Dual redundant internal power supplies for reliability
• 10/100/1000 BASE-T Ethernet control with free Mac and Windows software
• Compatible with Smart Control Pro and Master Control Pro panels

Ideal For

• Large broadcast and master control core routing
• Outside broadcast trucks and major live events
• Television networks mixing multiple video standards
• Mission critical facilities needing redundant power
• Large post production and playout installations

Specifications

• 40 x 12G-SDI inputs, 40 x 12G-SDI outputs
• Maximum resolution 2160p60 (4Kp60 DCI)
• Supported rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
• Reference input: Tri-Sync or Black Burst with loop output
• 10/100/1000 BASE-T Ethernet and USB-C interface
• 2 x internal 100V to 240V AC redundant power, 46.5W max, 2 rack units

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
