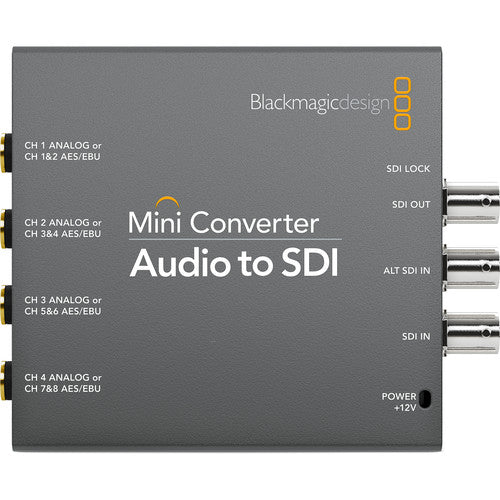

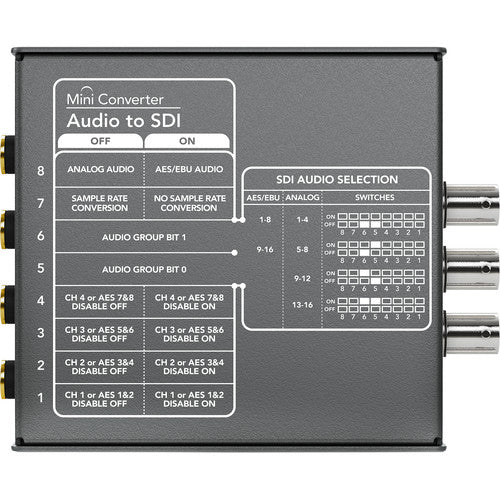

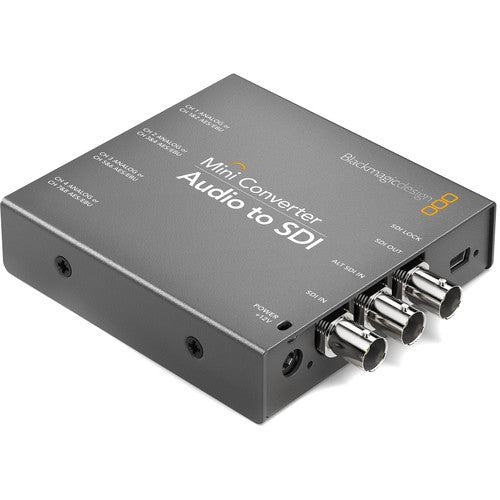

Blackmagic Design Mini Converter - Audio to SDI
Embeds 4 channels of analog or 8 channels of AES/EBU audio into any SD, HD or 3G-SDI video connection.
SKU: BLA-CONVMCAUDS2
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter Audio to SDI embeds professional audio directly into any SDI video connection. It accepts 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio and embeds them into an SD, HD or 3G-SDI signal.
With automatic SD, HD and 3G-SDI switching, a redundant ALT SDI input and standard 1/4 inch jack connections, it is a reliable way to add high quality audio to your video feed in broadcast, studio and live production environments.
Key Features
- Embeds 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio into SDI
- Supports SD, HD and 3G-SDI with automatic format detection
- Redundant ALT SDI input with automatic failover if the main signal is lost
- Professional audio on standard 1/4 inch jack connectors
- 48 kHz, 24-bit audio sampling to broadcast standard
- Rugged compact metal housing with a universal 12V power supply
Ideal For
- Adding external audio sources to SDI camera and switcher feeds
- Live production and outside broadcast audio embedding
- Studio and post production monitoring workflows
- Integrating analog and AES/EBU audio into digital SDI infrastructure
- Broadcast facilities needing redundant SDI signal paths
Specifications
- SDI input: SD, HD and 3G-SDI plus redundant ALT input
- SDI output: 1 embedded SDI output
- Audio: 4 channels analog or 8 channels AES/EBU on 1/4 inch jacks
- Audio sampling: 48 kHz, 24-bit
- Power consumption: 8.40 Watts on a 12V supply
- Supports SD, HD and 2K DCI video standards
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 1x SD/HD/3G-SDI plus 1x redundant ALT SDI |
| SDI Outputs | 1x embedded SDI output |
| Analog Audio | 4 channels balanced (1/4 inch jacks) |
| AES/EBU Audio | 8 channels balanced (1/4 inch jacks) |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080p and 1080PsF |
| 2K Formats | 2K DCI supported |
| Audio Sampling | 48 kHz, 24-bit |
| SDI Rate | Auto SD, HD and 3G-SDI switching |
| Power | +12V universal supply, 8.40 Watts |
| Operating Voltage | 12V DC |
| In the Box | Converter and power supply with international adapters |
Flexible Audio Embedding
Embed up to 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio directly into your SDI video. All audio uses standard 1/4 inch jack connections.
Automatic SDI Switching
Advanced 3 Gb/s SDI technology automatically detects and switches between SD, HD and 3G-SDI sources, so the converter just works with whatever you connect.
Redundant Input Protection
A second ALT SDI input takes over automatically if the main feed fails, keeping your embedded output running without interruption.
