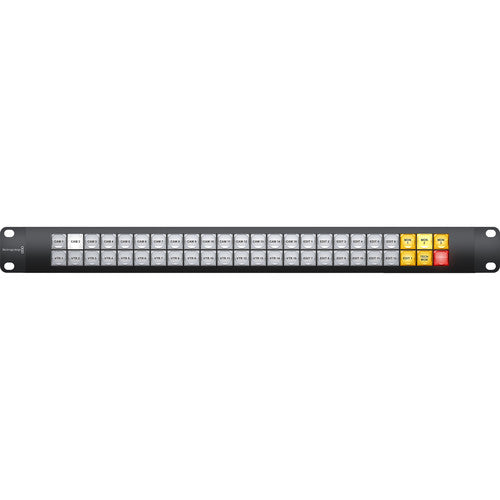

Blackmagic Design Videohub Smart Control Pro
1RU hardware panel with 48 programmable buttons for instant single press crosspoint routing on Videohub routers.
SKU: BLA-VHUB/WSC/PRO
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Videohub Smart Control Pro is a 1 rack unit hardware control panel with 48 programmable buttons for instant routing on Blackmagic Videohub routers over a network. Program each button for a single router crosspoint, and when pressed the route is made immediately.
It supports multi destination routing with a take button for confirmed switches, plus up to 10 buttons configured as macros to fire multiple commands at once. Connection is over a single RJ45 Ethernet cable with Power over Ethernet on the input, and the panel can also be set up as a 2110 NMOS controller for IP video facilities.
Key Features
- 48 programmable buttons for direct crosspoint routing
- Multi destination routing with take button support
- Up to 10 macro buttons for multiple simultaneous commands
- Ethernet RJ45 in and out with Power over Ethernet on the input
- Can be configured as a 2110 NMOS controller for IP video
- USB-C for configuration and firmware updates
- Free configuration software for Mac and Windows
Ideal For
- Broadcast master control and machine rooms
- Live production and outside broadcast trucks
- Studios routing many fixed sources and destinations
- IP video facilities needing a 2110 NMOS controller
- Operators who want fast single press routing
Specifications
- 48 programmable buttons
- Up to 10 macro buttons
- RJ45 Ethernet in and out with PoE on input
- RS-422 in and out and USB-C
- 1 rack unit, less than 3 inches deep
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Programmable buttons | 48 |
| Macro buttons | Up to 10 for simultaneous commands |
| Routing modes | Direct crosspoint and multi destination with take |
| Ethernet | RJ45 in and out, PoE on input |
| RS-422 | In and out (future implementation) |
| USB | USB-C for configuration and updates |
| Power | Internal 100V to 240V AC or PoE |
| NMOS controller | Can be configured as 2110 NMOS |
| IP compliance | IEEE 1588-2008, NMOS IS-04 and IS-05 |
| Rack units | 1 |
| Depth | Less than 3 inches |
48 Single Press Buttons
Program each of the 48 buttons for a single router crosspoint. When you press the button the route is made instantly, perfect for fixed source and destination workflows.
Macros and Multi Destination
Configure up to 10 buttons as macros to fire multiple commands at once. Multi destination routing with a take button lets operators confirm switches before they go live.
Single Cable PoE and IP Ready
Connect and power the panel over a single RJ45 cable using Power over Ethernet. It can also be configured as a 2110 NMOS controller for modern IP video facilities.
