Blackmagic Design Video Assist 5" 3G (NP-F style batteries not included)
Compact 5 inch HD field monitor that records ProRes and DNxHD up to 1080p60 from any 3G-SDI or HDMI camera.
SKU: BLA-HYPERD/AVIDA03/5
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

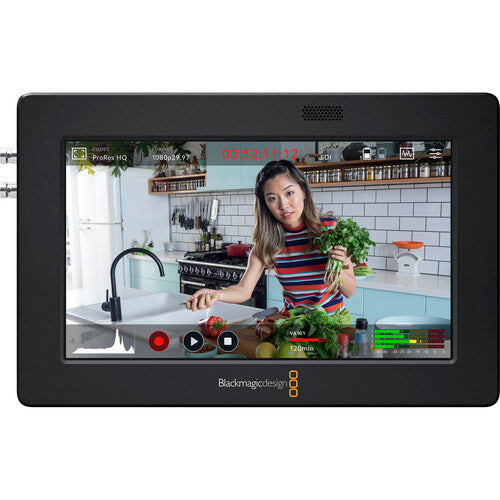

The Blackmagic Video Assist 5" 3G is a compact field monitor and recorder that adds professional HD monitoring and ProRes recording to any SDI or HDMI camera. Its bright 5 inch 1920 x 1080 touchscreen makes framing and focusing easy, while built in scopes, focus assist and 3D LUTs give you the tools to nail every shot.
Video is captured to a single UHS-I SD card using industry standard Apple ProRes and Avid DNxHD codecs, turning even a basic HDMI camera into a reliable broadcast ready recording rig.
Key Features
- Bright 5 inch 1920 x 1080 touchscreen monitor
- 3G-SDI and HDMI 2.0a inputs and outputs
- Records Apple ProRes and Avid DNxHD up to 1080p60
- Four built in scopes for accurate monitoring
- Focus assist, tally indicator and built in 3D LUTs
- Records to a single UHS-I SD card
Ideal For
- Adding ProRes recording to HD SDI and HDMI cameras
- Field monitoring with focus and exposure assist
- Interviews, events and documentary work
- Budget conscious productions needing broadcast codecs
- Camera operators wanting a larger framing display
Specifications
- 5 inch 1920 x 1080 display
- 3G-SDI and HDMI 2.0a in and out
- Up to 1080p60 recording
- Apple ProRes and Avid DNxHD codecs
- 16 channels embedded SDI audio
- 1 x UHS-I SD slot

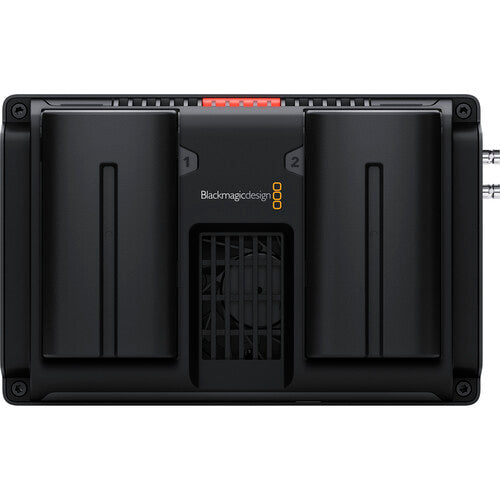

- 12V power, Sony NP-F battery compatible
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Display | 5 inch 1920 x 1080 |
| Brightness | 300 nits |

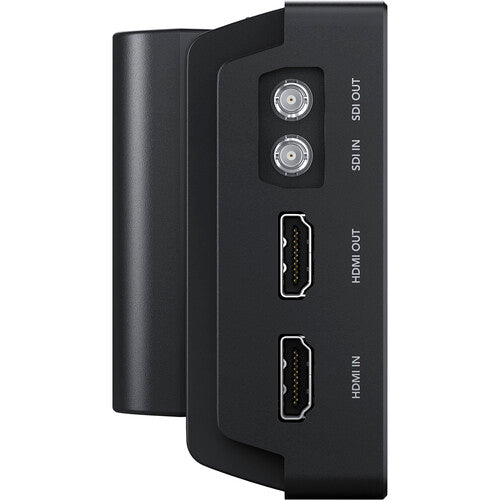

| SDI | 1 x 3G-SDI in, 1 x 3G-SDI out (Micro BNC) |
| HDMI | 1 x HDMI 2.0a in, 1 x HDMI 2.0a out |
| SDI Rates | 270Mb, 1.5G, 3G |
| Max Recording | 1080p60 |
| Codecs | Apple ProRes, Avid DNxHD |
| Audio | 16 channels embedded SDI, 8 via HDMI |

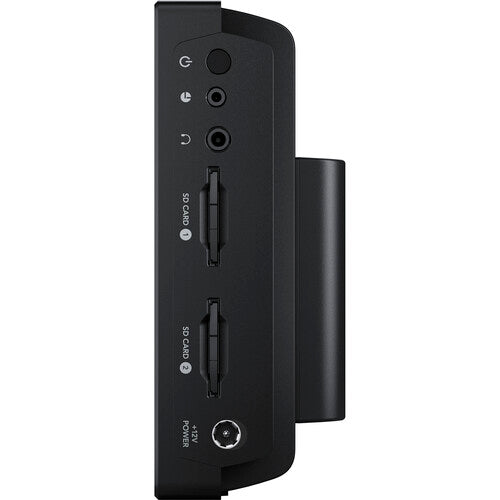

| Media | 1 x UHS-I SD slot |
| Scopes | Four built in scopes |
| Assist | Focus assist, tally, 3D LUTs |
| Power | 12V external supply, Sony NP-F battery compatible |
| Included | Power supply with adapters, NP-F battery USB charger |
Compact HD Field Recorder
Add professional HD monitoring and recording to almost any camera in a small, lightweight package. The bright 5 inch 1920 x 1080 touchscreen makes framing and focusing simple on location.
Broadcast Standard Codecs
Record industry standard Apple ProRes and Avid DNxHD up to 1080p60 onto an affordable UHS-I SD card. Footage drops straight into your editing timeline with no conversion.
Pro Monitoring Tools
Four built in scopes, focus assist and a tally indicator keep your shots sharp and correctly exposed. Built in 3D LUT support lets you preview your final look on set.
