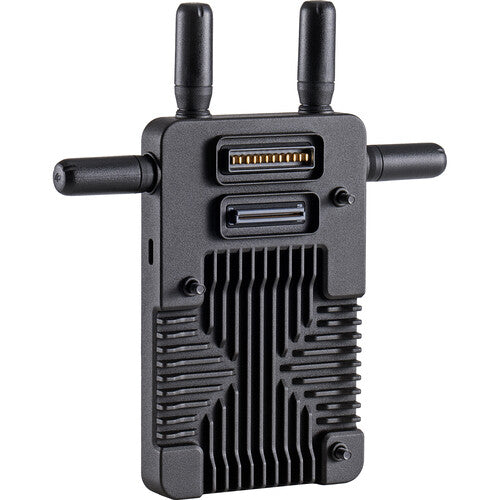

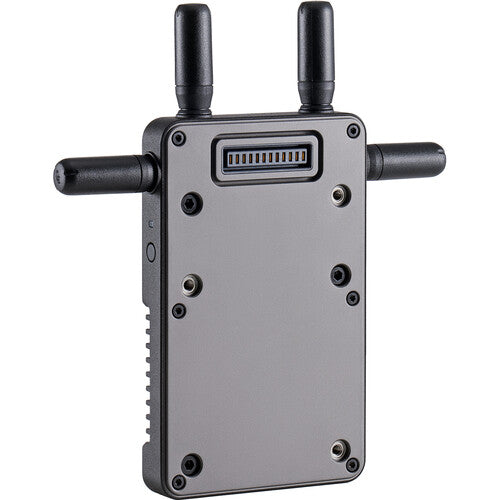

DJI Ronin 4D TX2 Video Transmitter Kit

The DJI Ronin 4D TX2 Video Transmitter brings DJI O3 Pro long-range wireless video to the Ronin 4D cinema system, sending a low-latency 1080p/60fps feed to remote monitors so directors and focus pullers can frame and pull from a distance.

Powered directly from the Ronin 4D body, the TX2 needs no separate battery and pairs with the DJI High-Bright Remote Monitor for a complete on-set wireless monitoring workflow with broadcast-grade security.

Key Features

• DJI O3 Pro video transmission with a line-of-sight range of up to 20,000 feet, roughly 6 km.
• Ultra-low latency of 68ms at 4K60 and 100ms at 4K24 for confident remote framing and focus.
• Sharp 1080p/60fps FHD feed delivered to multiple remote monitors at the same time.
• Dual-band 2.4 GHz and 5.8 GHz operation with DFS band support for stable links in busy environments.
• AES 256-bit encryption protects the signal against interception.
• Drawn from Ronin 4D power, removing the weight and bulk of a dedicated transmitter battery.

Ideal For

• Cinema and broadcast crews running director and focus-puller monitoring on set.
• Productions needing reliable long-range wireless video over distance.
• Ronin 4D owners building a complete wireless monitoring rig.

Specifications

• Transmission technology: DJI O3 Pro
• Max range: up to 20,000 ft line of sight
• Latency: 68ms at 4K60, 100ms at 4K24
• Output feed: 1080p/60fps FHD
• Frequency bands: 2.4 GHz, 5.8 GHz and DFS
• Encryption: AES 256-bit
• Power: supplied by the Ronin 4D body
• Compatibility: DJI Ronin 4D, used with the DJI High-Bright Remote Monitor

Available from Prosales, South Africa's authorised DJI dealer.
