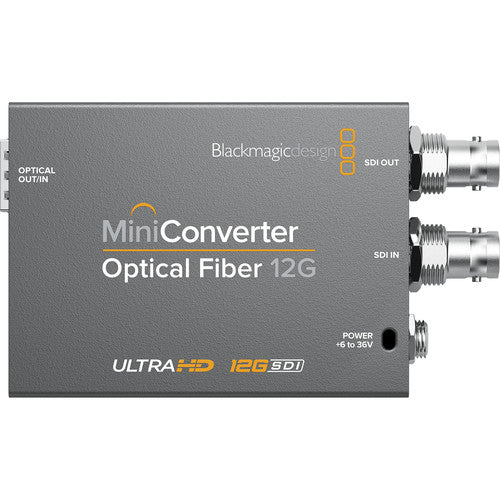

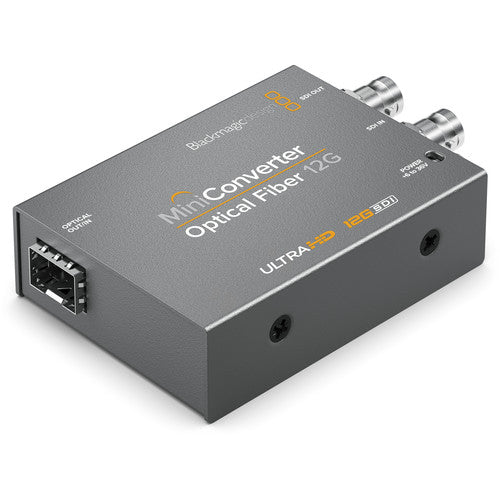

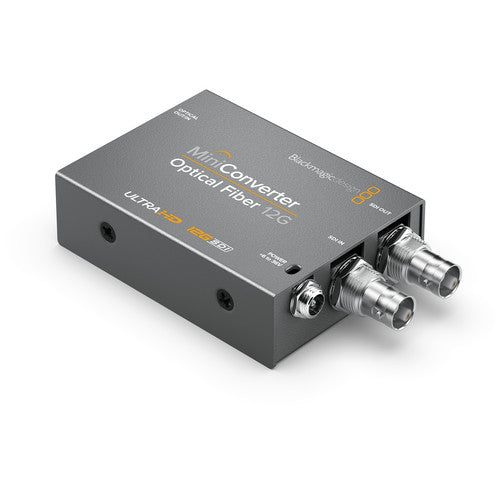

Blackmagic Design Mini Converter - Optical Fiber 12G (SFP Optical Module not included)
Bidirectional 12G-SDI to optical fiber converter supporting SD, HD and Ultra HD up to 2160p60 with an open SFP socket.
SKU: BLA-CONVMOF12G
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter Optical Fiber 12G lets you send 12G-SDI video over long distances using low cost optical fiber cables. It converts SDI to optical fiber and optical fiber back to SDI at the same time, so a single unit handles both directions of a bidirectional link.
The multi-rate 12G-SDI connections automatically detect the format and work with all SD, HD and Ultra HD equipment up to 2160p60, including Level A and B devices. An open SFP socket means you can fit any standard 3G, 6G or 12G-SDI optical module to match your cabling.
Key Features
- Simultaneous SDI to optical fiber and optical fiber to SDI conversion
- Multi-rate 12G-SDI supporting SD, HD and Ultra HD up to 2160p60
- Open SMPTE SFP socket accepts standard 3G, 6G or 12G optical modules
- Carries 16 channels of embedded audio in each direction
- Automatic input detection across SD, HD, 3G, 6G and 12G-SDI
- Rugged compact metal housing with low 2 Watt power draw
Ideal For
- Running SDI signals over long cable distances on outside broadcasts
- Live event and stadium production where copper runs are impractical
- Linking control rooms and studios across a facility
- Ultra HD signal transport up to 2160p60
- Mobile production trucks and flyaway kits
Specifications
- SDI rates from SD up to 12G-SDI, 2160p60
- 1x SMPTE SFP optical socket (module sold separately)
- 16 channels embedded audio per direction
- 48 kHz, 24-bit audio sampling
- Power consumption 2 Watts, 6V to 36V DC input
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Conversion | SDI to optical fiber and optical fiber to SDI, simultaneous |
| SDI rates | SD, HD, 3G-SDI Level A and B, 6G-SDI, 12G-SDI |
| Max format | Ultra HD 2160p60 |
| Optical connection | 1x SMPTE SFP socket (module sold separately) |
| Embedded audio | 16 channels per direction |
| Audio sampling | 48 kHz, 24-bit |
| Video sampling | 4:2:2 and 4:4:4 |
| Color space | YUV and RGB |
| SDI compliance | SMPTE 259M, 292M, 296M, 424M, 425M, ST-2081 |
| Power consumption | 2 Watts |
| Power input | 6V to 36V DC, universal 12V supply included |
| Operating temperature | 0 to 40 degrees C |
| Storage temperature | -20 to 45 degrees C |
| Humidity | 0% to 90% non-condensing |
Send SDI Over Fiber
Convert 12G-SDI to optical fiber and back at the same time. Run video over long distances using low cost fiber cables instead of bulky copper SDI runs.
Multi-Rate Up to 2160p60
The connections automatically detect the input format across SD, HD and Ultra HD up to 2160p60. It works with Level A and B 3G-SDI devices as well as 6G and 12G equipment.
Open SFP Socket
Fit any standard 3G, 6G or 12G-SDI SFP optical module to match your cabling. The SFP module is purchased separately so you choose the right reach and connector type.
