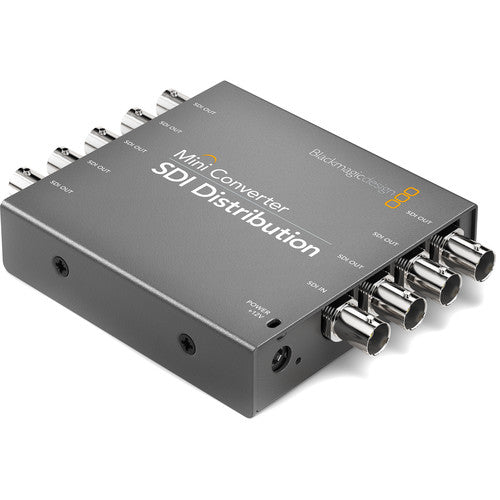

Blackmagic Design Mini Converter - SDI Distribution
True 3G-SDI distribution amplifier that feeds one SDI input to 8 re-clocked SDI outputs up to 1080p60 and 2K DCI.
SKU: BLA-CONVMSDIDA
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI Distribution takes a single SD or HD-SDI source and feeds it to 8 separate SDI outputs at the same time. It is a true 3G-SDI distribution amplifier with fully re-clocked outputs, so you get clean, stable signals on every feed.
The converter automatically switches between all SD and HD formats up to 1080p60 and 2K DCI, with no manual setup required. Compact and rugged, it slots easily into broadcast trucks, racks and live production setups.
Key Features
- Distributes one SDI input to 8 SDI outputs simultaneously
- True 3G-SDI design with fully re-clocked outputs
- Automatic switching across SD, HD and 3G-SDI formats up to 1080p60
- Supports 2K DCI formats
- Carries embedded audio and ASI data through every output
- Rugged compact metal housing for on-location use
Ideal For
- Feeding multiple monitors and devices from one SDI source
- Live event and outside broadcast signal distribution
- Broadcast trucks and machine room patching
- Routing program feeds to several destinations
- Studio and edit suite signal splitting
Specifications
- 1x SDI input, 8x re-clocked SDI outputs
- SDI rates 270Mb, 1.5G and 3G
- Supports SD, HD up to 1080p60 and 2K DCI
- 48 kHz, 24-bit embedded audio passthrough
- Power consumption 4.8 Watts, 12V to 31V DC
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Function | SDI distribution amplifier, 1 input to 8 outputs |
| SDI input | 1x switchable SD, HD, 3G-SDI |
| SDI outputs | 8x re-clocked, auto matching input |
| SDI rates | 270Mb, 1.5G, 3G |
| Max format | 1080p60 and 2K DCI |
| Re-clocking | Yes, fully re-clocked outputs |
| Video sampling | 4:2:2 and 4:4:4 |
| Color space | YUV and RGB |
| Audio sampling | 48 kHz, 24-bit embedded passthrough |
| SDI compliance | SMPTE 259M, 292M, 296M, 372M, 424M, 425M |
| Power consumption | 4.8 Watts |
| Power input | 12V to 31V DC, universal 12V supply included |
| Operating temperature | 0 to 40 degrees C |
| Storage temperature | -20 to 45 degrees C |
| Humidity | 0% to 90% non-condensing |
One In, Eight Out
Take a single SD or HD-SDI source and distribute it to 8 SDI outputs at the same time. Perfect for feeding multiple monitors and devices from one signal.
Re-Clocked 3G-SDI
A true 3G-SDI design with fully re-clocked outputs keeps every feed clean and stable. It automatically switches across all SD and HD formats up to 1080p60.
Built for the Field
The rugged compact metal housing draws just 4.8 Watts and ships with a universal 12V supply. It fits neatly into broadcast trucks, racks and live production rigs.
