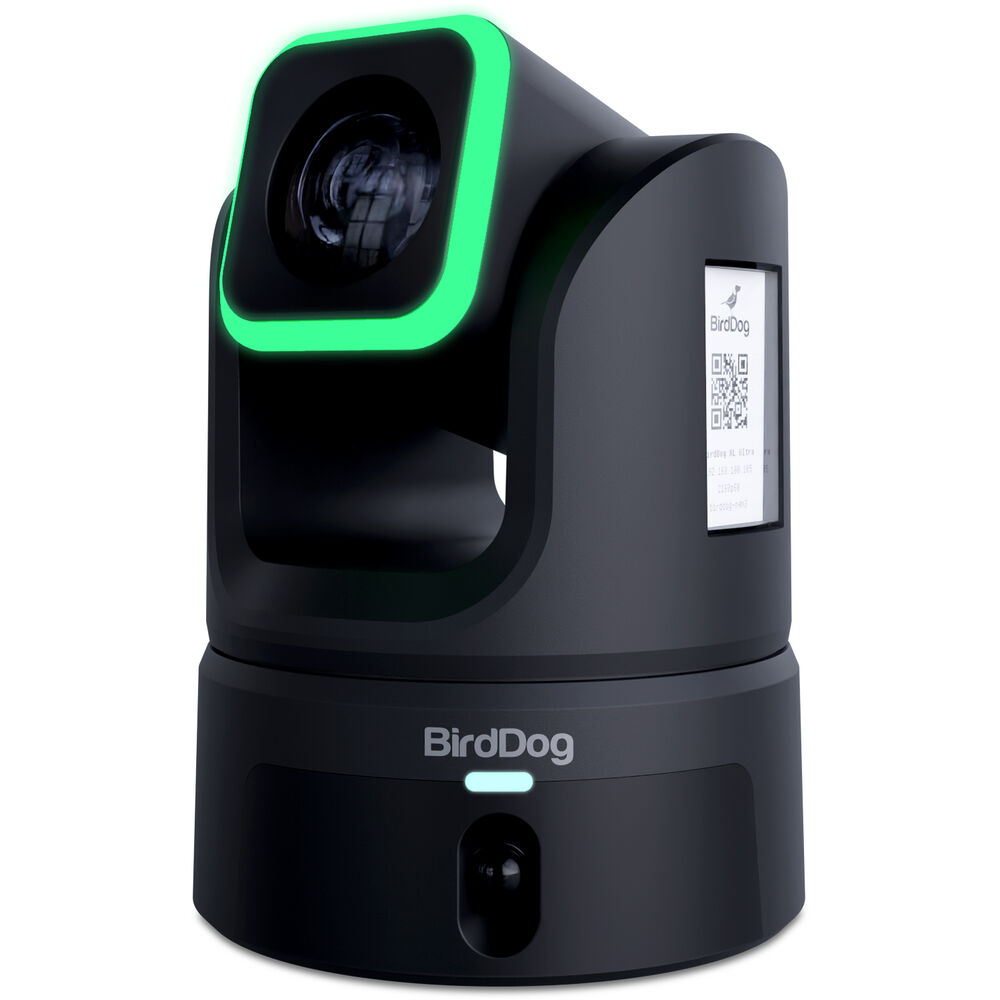

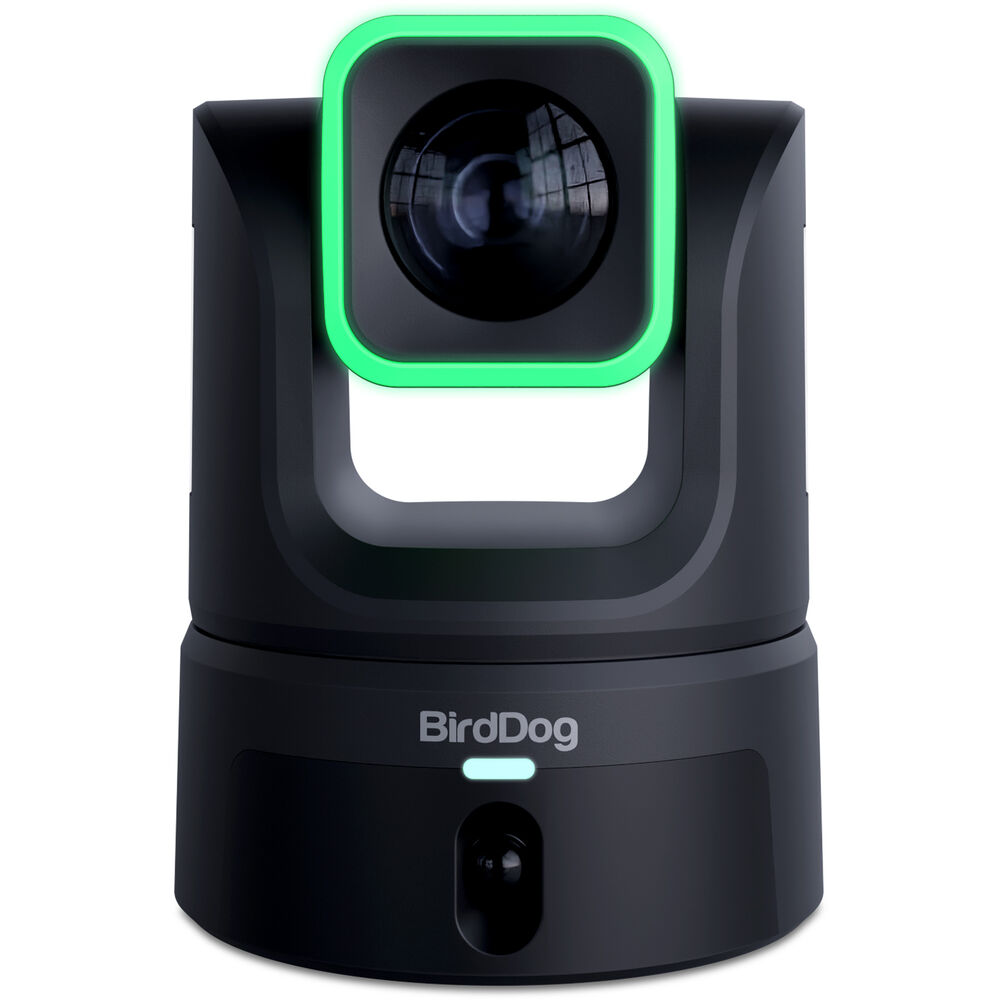

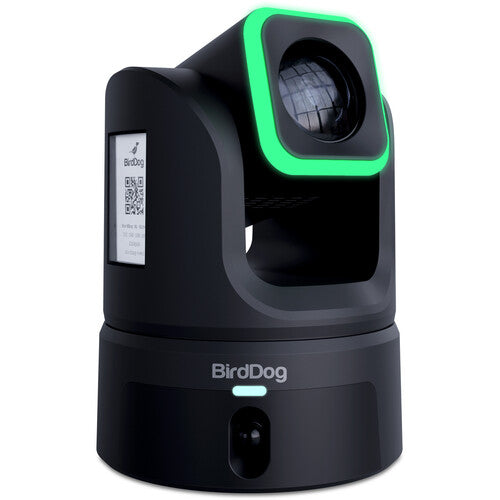

BirdDog XL Ultra UHD PTZ Camera (Black)
BirdDog XL Ultra is a flagship dual-camera 4K60 NDI PTZ with a 4/3 inch 5K Sony sensor, 20x zoom, 12G-SDI and SFP plus fiber, and dual-camera AI tracking. From Prosales, South Africa.
SKU: BDXLUB
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The BirdDog XL Ultra UHD PTZ Camera (Black) is BirdDog's flagship PTZ, built to bring cinematic imaging into live production, broadcast studios and XR or virtual-production stages. A large 4/3 inch 5K Sony sensor and a 20x zoom lens are paired with a second panoramic camera that drives dual-camera AI presenter tracking and auto-framing, all delivered over NDI on a single network.
Key Features
- 4/3 inch 5K Sony sensor: 20.89 MP effective, 4K60 cinematic imaging.
- Dual-camera AI: a secondary panoramic camera powers presenter tracking, zone tracking and auto-framing.
- 20x optical zoom: 9.8 to 186mm, F2.8 to F4.5, with OLPF and a built-in ND filter.
- Full NDI workflow: high-bandwidth NDI, NDI HX3 and HX2, plus SRT, RTSP and RTMP, with built-in NDI decode.

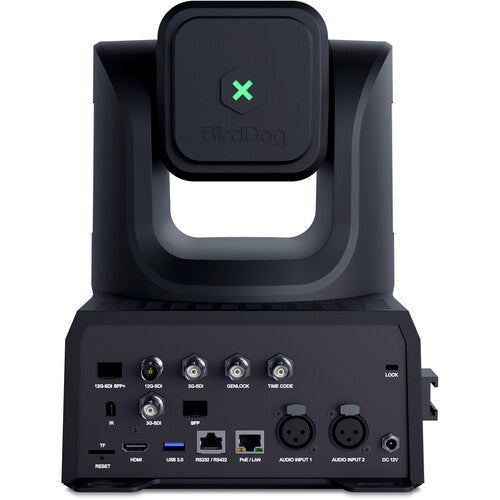

- Pro outputs: 12G-SDI, dual 3G-SDI, HDMI 2.0, USB-C and an SFP plus fiber cage.
- Production-ready: genlock, timecode, ATEM tally, RGB HALO tally and rear number tally.
- On-board tools: two 3 inch e-ink displays, microSD recording and two XLR balanced audio inputs.
Ideal For
Broadcast studios, XR and virtual production, large live events and high-end houses of worship.
Specifications
- Primary sensor: 4/3 inch Sony CMOS, 5K, 20.89 MP effective
- Secondary camera: 1/1.8 inch Sony 4K CMOS, fixed 4.4mm F2.0, 85 degree FOV
- Max video: 2160p at 60/59.94/50/29.97/25fps
- Optical zoom: 20x, 9.8 to 186mm, F2.8 to F4.5
- Encoder: full NDI, NDI HX3, NDI HX2, SRT, RTSP, RTMP
- Decoder: NDI HX2 and HX3 up to 1080p60
- Outputs: 12G-SDI, 3G-SDI x2, HDMI 2.0, USB-C, SFP plus
- Network: 1GbE with PoE plus plus, plus SFP plus cage
- Pan / tilt: plus or minus 170 degrees, -30 to +90 degrees, up to 120 degrees per second
- Presets: 256
- Control: VISCA-IP, VISCA Serial, NDI, Pelco-P, Pelco-D, FreeD
- Power: DC 12V or PoE plus plus, under 60W max
Available from Prosales, South Africa.
| Primary sensor | 4/3 inch Sony CMOS, 5K, 20.89 MP effective |
| Secondary camera | 1/1.8 inch Sony 4K CMOS, fixed 4.4mm F2.0, 85 degree panoramic |
| Max video | 2160p at 60/59.94/50/29.97/25fps |
| Optical zoom | 20x, 9.8 to 186mm, F2.8 to F4.5, with OLPF and built-in ND |
| Encoder protocols | Full NDI (SpeedHQ), NDI HX3, NDI HX2, SRT, RTSP, RTMP |
| Decoder | NDI HX2 and HX3 decode up to 1080p60 |
| Video outputs | 12G-SDI, 3G-SDI x2, HDMI 2.0, USB-C (UVC), SFP plus cage |
| Network | 1GbE with PoE plus plus, plus SFP plus cage |
| Pan / tilt | plus or minus 170 degrees, -30 to +90 degrees, up to 120 degrees per second |
| Presets | 256 |
| Audio | 2x XLR balanced inputs |
| Sync | Genlock and timecode |
| Control protocols | VISCA-IP, VISCA Serial, NDI, Pelco-P, Pelco-D, FreeD |
| Power | DC 12V or PoE plus plus, under 60W max |
Flagship Dual-Camera 4K PTZ
A 4/3 inch 5K Sony sensor and 20x zoom deliver cinematic 4K60 over NDI, while a second panoramic camera powers AI presenter tracking and auto-framing for broadcast studios and XR stages.
Built for the Rack and the Switcher
12G-SDI, dual 3G-SDI, HDMI 2.0 and an SFP plus fiber cage feed any infrastructure, with genlock, timecode and ATEM tally for clean integration into large live productions.
Full NDI with Decode
High-bandwidth NDI, NDI HX3 and HX2 plus SRT, RTSP and RTMP cover on-premises and remote delivery, and built-in NDI decode brings return feeds and confidence monitoring over the network.
