Blackmagic Design SmartScope Duo 4K 2
Dual 8-inch 3RU rack monitor with seven broadcast scopes and 6G-SDI for SD, HD and Ultra HD signals.
SKU: BLA-HDL-SMTWSCOPEDUO4K2
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

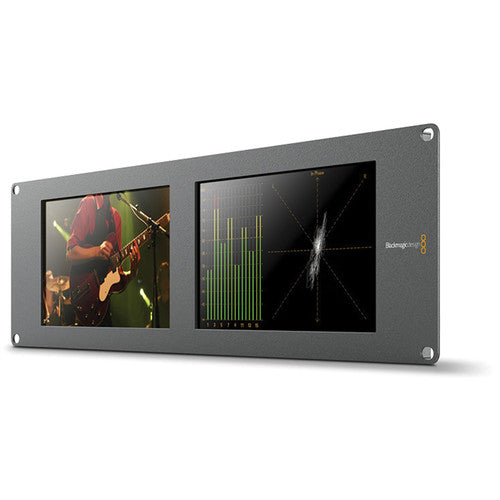

The Blackmagic Design SmartScope Duo 4K 2 is a dual 8-inch rack mount monitoring solution that lets you keep an eye on two video signals or scopes at the same time. Built into a slim 3RU chassis, each of the two independent LCD screens can display live video or one of seven professional broadcast scopes.
With 6G-SDI inputs that automatically switch between SD, HD and Ultra HD, the SmartScope Duo 4K 2 gives broadcast and post production facilities accurate, technical insight into both picture and audio signals.
Key Features
- Two independent 8-inch LCD screens in a slim 3RU rack mount chassis.
- 6G-SDI inputs with reclocked loop through outputs for SD, HD and Ultra HD.
- Seven scopes including waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level.
- Monitors up to UHD 4K (3840 x 2160) as well as 2K DCI, HD and SD.
- Supports 16 channels of embedded audio in SD, HD and UHD.
- Free computer control utility over Ethernet for configuration and view selection.
Ideal For
- Broadcast master control and transmission monitoring.
- Post production grading and finishing suites.
- Outside broadcast and live production trucks.
- Quality control and signal verification rooms.
Specifications
- Two independent 8-inch LCDs in 3RU format.
- 6G-SDI input with 10-bit reclocked loop through output.
- Formats from 525i NTSC and 625i PAL up to 2160p30.
- 12V universal power supply, under 20 Watts consumption.
- Operating temperature 0 to 40 degrees Celsius.
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Displays | Two independent 8-inch LCDs |
| Form Factor | 3RU rack mount |
| SDI Input | 6G-SDI, auto switching SD, HD, 6G-SDI |
| SDI Output | 10-bit reclocked loop through |
| Scopes | Waveform, vectorscope, RGB parade, YUV parade, histogram, audio phase and level |
| SD Formats | 525i29.97 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i and 1080p up to 60fps |
| UHD Formats | 2160p23.98 to 2160p30 |
| Audio | 16 channels embedded, 48kHz |
| Control | 10/100 BaseT Ethernet, USB 2.0 |
| Tally | 9-pin D connector |
| Power | 12V universal supply, under 20 Watts |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Unit, power supply, software download card |
Two Independent Displays

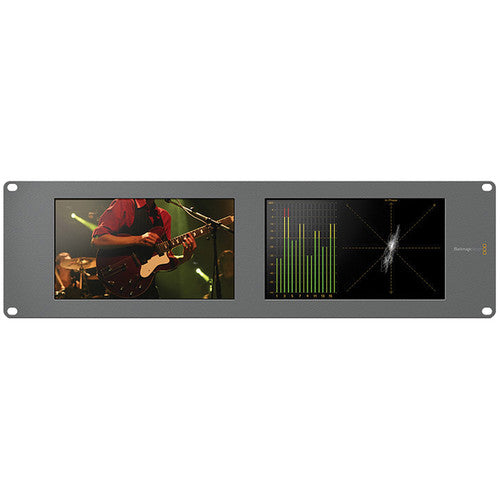

Two 8-inch LCD screens work independently in a single slim 3RU chassis. Show live picture on one and a technical scope on the other, or run two different scopes side by side.
Seven Professional Scopes

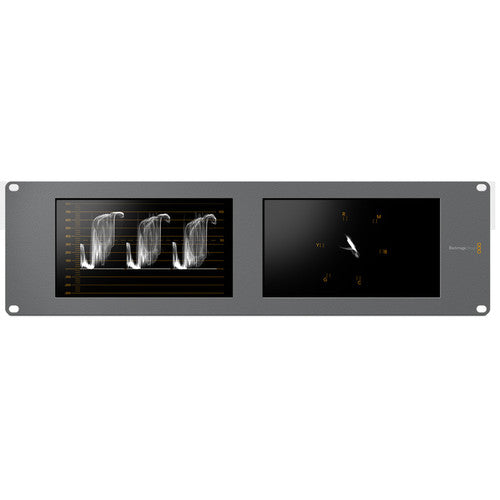

Choose from waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level displays. You get broadcast accurate measurement of everything in your video and audio signals.
6G-SDI Up to Ultra HD
The 6G-SDI inputs automatically switch between SD, HD and Ultra HD with reclocked loop through outputs. Monitor everything from SD up to UHD 4K (3840 x 2160) with 16 channels of embedded audio.
