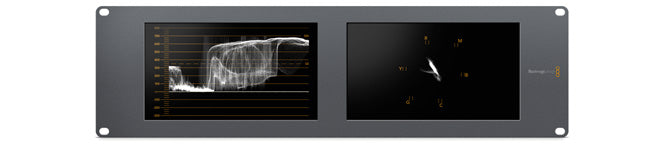

Blackmagic Design SmartScope Duo 4K 2

The Blackmagic Design SmartScope Duo 4K 2 is a dual 8-inch rack mount monitoring solution that lets you keep an eye on two video signals or scopes at the same time. Built into a slim 3RU chassis, each of the two independent LCD screens can display live video or one of seven professional broadcast scopes.

With 6G-SDI inputs that automatically switch between SD, HD and Ultra HD, the SmartScope Duo 4K 2 gives broadcast and post production facilities accurate, technical insight into both picture and audio signals.

Key Features

• Two independent 8-inch LCD screens in a slim 3RU rack mount chassis.
• 6G-SDI inputs with reclocked loop through outputs for SD, HD and Ultra HD.
• Seven scopes including waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level.
• Monitors up to UHD 4K (3840 x 2160) as well as 2K DCI, HD and SD.
• Supports 16 channels of embedded audio in SD, HD and UHD.
• Free computer control utility over Ethernet for configuration and view selection.

Ideal For

• Broadcast master control and transmission monitoring.
• Post production grading and finishing suites.
• Outside broadcast and live production trucks.
• Quality control and signal verification rooms.

Specifications

• Two independent 8-inch LCDs in 3RU format.
• 6G-SDI input with 10-bit reclocked loop through output.
• Formats from 525i NTSC and 625i PAL up to 2160p30.
• 12V universal power supply, under 20 Watts consumption.
• Operating temperature 0 to 40 degrees Celsius.

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
