Blackmagic Design SmartView 4K G3
15.6-inch Ultra HD rack monitor with dual 12G-SDI and SMPTE-2110 IP video for broadcast workflows.
SKU: BLA-HDL-SMTV4K12G3
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

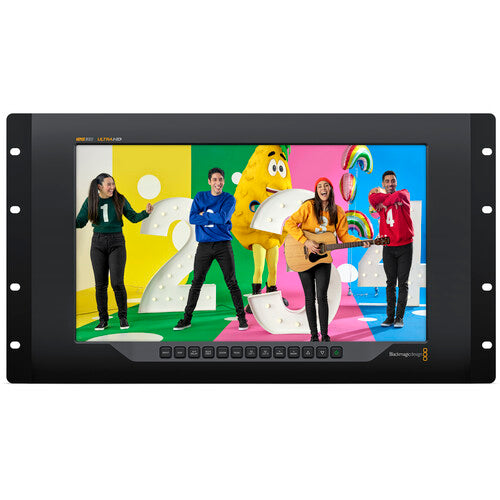

The Blackmagic Design SmartView 4K G3 is a 15.6-inch broadcast monitor that brings traditional SDI and modern IP video together in a single rack mount unit. Its native 3840 x 2160 display lets you monitor everything from SD up to DCI 4K with full resolution detail.
With two 12G-SDI inputs plus optical and copper SMPTE-2110 IP connectivity, the SmartView 4K G3 is built for facilities moving toward IP based workflows while keeping compatibility with existing SDI equipment.
Key Features
- 15.6-inch LCD with native 3840 x 2160 (Ultra HD) resolution.
- Two 12G-SDI inputs that auto switch between SD, HD, 2K, Ultra HD and DCI 4K.
- SMPTE-2110 IP video over optical SFP and 10G BASE-T copper.
- Monitoring tools including 3D LUTs, focus peaking, H/V delay, blue only and framing guides.
- Both AC and 12V DC power inputs for flexible installation.
- Lightweight aluminium chassis in a 6RU rack format.
Ideal For
- Broadcast facilities transitioning to SMPTE-2110 IP.
- Master control and transmission monitoring.
- Outside broadcast trucks and flyaway kits.
- Post production and quality control suites.
Specifications
- 15.6-inch LCD, 3840 x 2160, 1000:1 contrast.
- Two SDI inputs supporting 270Mb up to 12G.
- Formats from 525i NTSC up to 4Kp60 DCI.
- AC (100 to 240V) and 12V DC power, 24 Watts.
- Operating temperature 0 to 40 degrees Celsius.
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Screen | 15.6-inch TFT Active Matrix LCD |
| Resolution | 3840 x 2160 pixels |
| Contrast Ratio | 1000:1 |
| SDI Inputs | Two, supporting 270Mb, 1.5G, 3G, 6G, 12G |
| SDI Output | One loop output |
| IP Video | SMPTE-2110 over optical SFP |
| Ethernet | 10/100/1000/10G BASE-T RJ-45 |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080p up to 60fps |
| 4K Formats | 2160p and 4K DCI up to 60fps |
| Monitoring | 3D LUTs, focus peaking, H/V delay, blue only, framing guides |
| Power | AC 100 to 240V and 12V DC, 24 Watts |
| Rack Size | 6RU |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Monitor, software download card |
Native Ultra HD Display
The 15.6-inch panel has a true 3840 x 2160 resolution so you see Ultra HD and DCI 4K signals at full detail. SD, HD and 4K inputs are detected automatically.
SDI and IP in One Unit

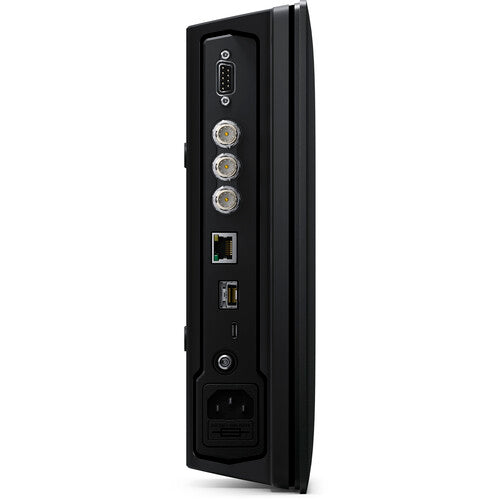

Two 12G-SDI inputs sit alongside optical and copper SMPTE-2110 IP video connections. That makes it ideal for facilities moving to IP while keeping their existing SDI gear connected.
Professional Monitoring Tools
Built in 3D LUTs, focus peaking, H/V delay, blue only and framing guides give you precise control. Both AC and 12V DC power inputs make installation flexible in racks or in the field.
