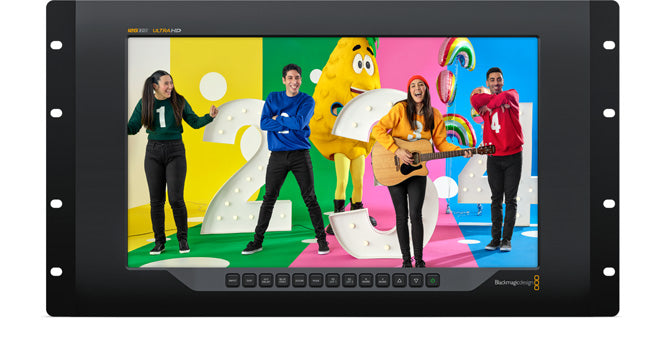

Blackmagic Design SmartView 4K G3

The Blackmagic Design SmartView 4K G3 is a 15.6-inch broadcast monitor that brings traditional SDI and modern IP video together in a single rack mount unit. Its native 3840 x 2160 display lets you monitor everything from SD up to DCI 4K with full resolution detail.

With two 12G-SDI inputs plus optical and copper SMPTE-2110 IP connectivity, the SmartView 4K G3 is built for facilities moving toward IP based workflows while keeping compatibility with existing SDI equipment.

Key Features

• 15.6-inch LCD with native 3840 x 2160 (Ultra HD) resolution.
• Two 12G-SDI inputs that auto switch between SD, HD, 2K, Ultra HD and DCI 4K.
• SMPTE-2110 IP video over optical SFP and 10G BASE-T copper.
• Monitoring tools including 3D LUTs, focus peaking, H/V delay, blue only and framing guides.
• Both AC and 12V DC power inputs for flexible installation.
• Lightweight aluminium chassis in a 6RU rack format.

Ideal For

• Broadcast facilities transitioning to SMPTE-2110 IP.
• Master control and transmission monitoring.
• Outside broadcast trucks and flyaway kits.
• Post production and quality control suites.

Specifications

• 15.6-inch LCD, 3840 x 2160, 1000:1 contrast.
• Two SDI inputs supporting 270Mb up to 12G.
• Formats from 525i NTSC up to 4Kp60 DCI.
• AC (100 to 240V) and 12V DC power, 24 Watts.
• Operating temperature 0 to 40 degrees Celsius.

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
