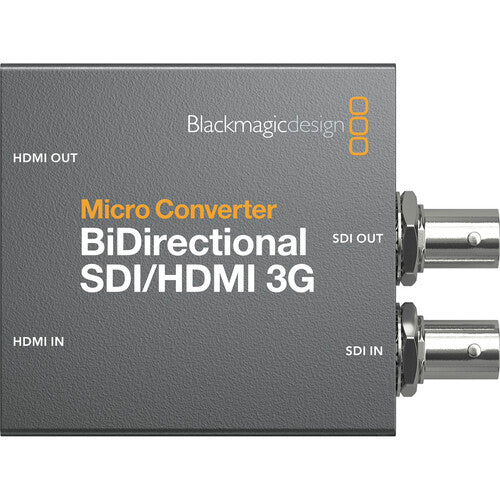

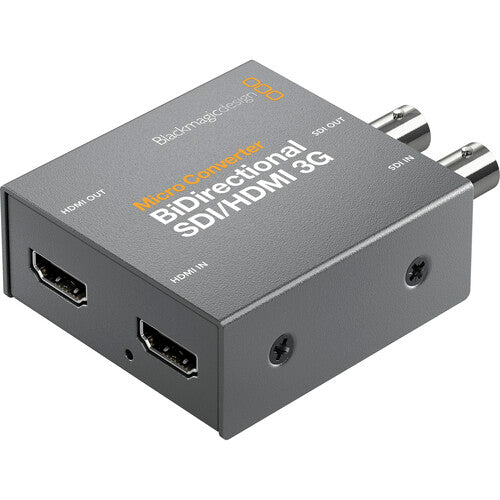

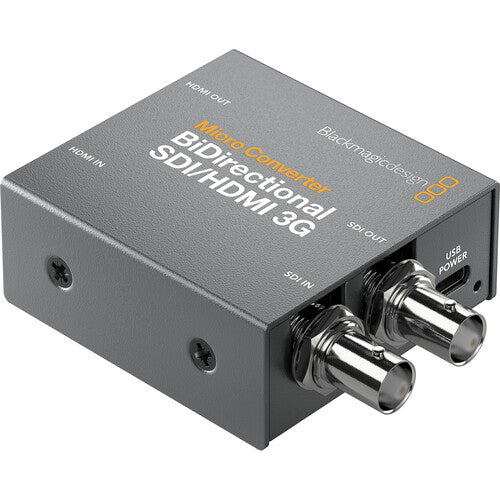

Blackmagic Design Micro Converter BiDirect SDI/HDMI 3G PSU
Tiny converter doing simultaneous two way SDI to HDMI and HDMI to SDI conversion, supplied with a mains power supply.
SKU: BLA-CONVBDC/SDI/HDMI03G/PS
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G is a single tiny converter that handles conversion in both directions at the same time. It can take an SDI input and output HDMI while simultaneously taking an HDMI input and outputting SDI, even when the two signals are in different formats. That makes one unit do the job of two separate converters.
This version ships with a mains power supply (PSU) for reliable standalone operation, while the USB-C connection can also draw power from a monitor, laptop or computer and is used for software updates.
Key Features
- Simultaneous bidirectional SDI to HDMI and HDMI to SDI conversion
- Handles different formats on each direction at once
- Supports SD, HD and 3G-SDI with Level A or B
- Outputs automatically match the connected input
- USB Type-C for power, configuration and updates
- Included mains power supply for standalone use
Ideal For
- Camera setups needing both SDI monitoring and HDMI feeds
- Mixed SDI and HDMI signal chains in one rig
- Live production and outside broadcast workflows
- Studios bridging broadcast SDI and consumer HDMI gear
- AV installations requiring two way conversion from one box
Specifications
- 1x SD, HD or 3G-SDI input and 1x SDI output
- 1x HDMI Type A input and 1x HDMI Type A output
- SDI rates 270Mb, 1.5G and 3G
- SDI compliant with SMPTE 259M, 292M, 296M, 424M and 425M
- 4:2:2 YUV colour precision
- Power consumption 2.5W maximum, operating voltage 4.4V to 5.25V DC
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Conversion | Bidirectional, simultaneous |
| SDI Input | 1x SD, HD or 3G-SDI |
| SDI Output | 1x, matches HDMI input |
| HDMI Input | 1x Type A |
| HDMI Output | 1x Type A |
| SDI Rates | 270Mb, 1.5G, 3G |
| Auto Detection | SD, HD and SDI Level A or B |
| SDI Compliance | SMPTE 259M, 292M, 296M, 424M, 425M |
| Colour Precision | 4:2:2 YUV |
| Power and Config | USB Type-C |
| Power Consumption | 2.5W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and mains power supply |
Two Converters in One
Convert SDI to HDMI and HDMI to SDI at the same time from a single unit. Each direction can even run a different video format simultaneously.
Automatic Format Matching
The converter detects SD, HD and 3G-SDI with selectable Level A or B and automatically matches outputs to the connected source. There is nothing to set up.
Included Power Supply
This version includes a mains power supply for fully standalone use. The USB-C port can alternatively draw power from a monitor, laptop or computer.
