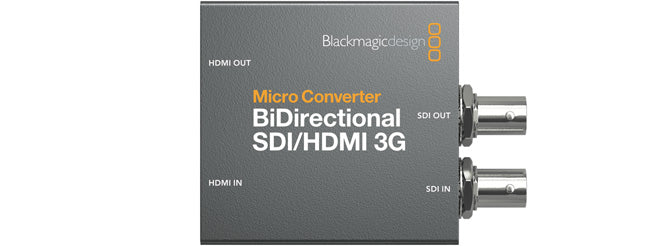

Blackmagic Design Micro Converter BiDirect SDI/HDMI 3G PSU

The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G is a single tiny converter that handles conversion in both directions at the same time. It can take an SDI input and output HDMI while simultaneously taking an HDMI input and outputting SDI, even when the two signals are in different formats. That makes one unit do the job of two separate converters.

This version ships with a mains power supply (PSU) for reliable standalone operation, while the USB-C connection can also draw power from a monitor, laptop or computer and is used for software updates.

Key Features

• Simultaneous bidirectional SDI to HDMI and HDMI to SDI conversion
• Handles different formats on each direction at once
• Supports SD, HD and 3G-SDI with Level A or B
• Outputs automatically match the connected input
• USB Type-C for power, configuration and updates
• Included mains power supply for standalone use

Ideal For

• Camera setups needing both SDI monitoring and HDMI feeds
• Mixed SDI and HDMI signal chains in one rig
• Live production and outside broadcast workflows
• Studios bridging broadcast SDI and consumer HDMI gear
• AV installations requiring two way conversion from one box

Specifications

• 1x SD, HD or 3G-SDI input and 1x SDI output
• 1x HDMI Type A input and 1x HDMI Type A output
• SDI rates 270Mb, 1.5G and 3G
• SDI compliant with SMPTE 259M, 292M, 296M, 424M and 425M
• 4:2:2 YUV colour precision
• Power consumption 2.5W maximum, operating voltage 4.4V to 5.25V DC

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
