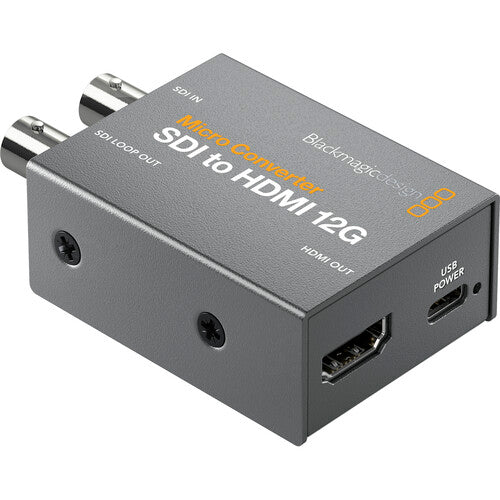

Blackmagic Design Micro Converter SDI to HDMI 12G PSU
Pocket sized 12G-SDI to HDMI converter with SDI loop and 33 point 3D LUT, supplied with a mains power supply.
SKU: BLA-CONVCMIC/SH12G/WPSU
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Micro Converter SDI to HDMI 12G is a powerful, pocket sized converter that takes a professional 12G-SDI signal and outputs it to HDMI 2.0, in all SD, HD and Ultra HD formats up to 2160p60. A built-in SDI loop output lets you pass the original signal on to the next device in your chain.
A 33 point 3D LUT can be loaded to colour calibrate any monitor, projector or television. This version ships with a mains power supply (PSU) for reliable standalone use, while USB-C can also power the unit and load software updates.
Key Features
- One multi-rate 12G-SDI input with HDMI 2.0 output
- Supports SD, HD and Ultra HD up to 2160p60 and 4K DCI
- SDI loop output to feed another device
- 33 point 3D LUT for monitor, projector and TV calibration
- USB Type-C for power, configuration and updates
- Included mains power supply for standalone use
Ideal For
- Ultra HD and 4K monitoring on set and in studio
- Driving projectors and TVs from a 12G-SDI source
- Colour critical monitoring using a loaded 3D LUT
- Live events and outside broadcast monitoring
- Bridging professional SDI infrastructure to HDMI screens
Specifications
- 1x multi-rate 12G-SDI input
- 1x HDMI 2.0 Type A output plus 1x SDI loop output
- SDI rates 270Mb, 1.5G, 3G, 6G and 12G
- Resolutions up to 2160p60 and 4K DCI up to 60
- 33 point 3D LUT support
- Power consumption 4W maximum, operating voltage 4.4V to 5.25V DC
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Input | 1x multi-rate 12G-SDI |
| HDMI Output | 1x HDMI 2.0 Type A |
| SDI Loop Output | 1x |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Max Resolution | 2160p60 and 4K DCI up to 60 |
| 3D LUT | 33 point |
| SDI Compliance | SMPTE 259M to 2108-1 family |
| Colour Precision | 4:2:2 |
| Power and Config | USB Type-C |
| Power Consumption | 4W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and mains power supply |
Ultra HD Up to 2160p60
A multi-rate 12G-SDI input converts SD, HD and Ultra HD up to 2160p60 and 4K DCI to HDMI 2.0. A built-in SDI loop output passes the original signal on to the next device.
33 Point 3D LUT
Load a 33 point 3D LUT to colour calibrate any monitor, projector or television. This makes it ideal for colour critical monitoring on set and in the studio.
Included Power Supply
This version includes a mains power supply for fully standalone operation. The USB-C port can alternatively draw power from a monitor, laptop or computer.
