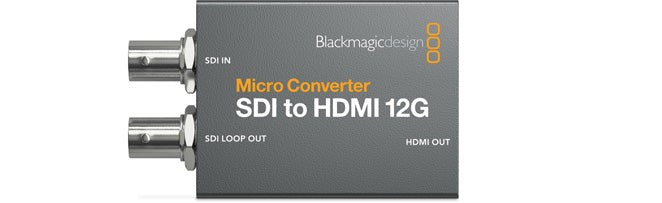

Blackmagic Design Micro Converter SDI to HDMI 12G PSU

The Blackmagic Design Micro Converter SDI to HDMI 12G is a powerful, pocket sized converter that takes a professional 12G-SDI signal and outputs it to HDMI 2.0, in all SD, HD and Ultra HD formats up to 2160p60. A built-in SDI loop output lets you pass the original signal on to the next device in your chain.

A 33 point 3D LUT can be loaded to colour calibrate any monitor, projector or television. This version ships with a mains power supply (PSU) for reliable standalone use, while USB-C can also power the unit and load software updates.

Key Features

• One multi-rate 12G-SDI input with HDMI 2.0 output
• Supports SD, HD and Ultra HD up to 2160p60 and 4K DCI
• SDI loop output to feed another device
• 33 point 3D LUT for monitor, projector and TV calibration
• USB Type-C for power, configuration and updates
• Included mains power supply for standalone use

Ideal For

• Ultra HD and 4K monitoring on set and in studio
• Driving projectors and TVs from a 12G-SDI source
• Colour critical monitoring using a loaded 3D LUT
• Live events and outside broadcast monitoring
• Bridging professional SDI infrastructure to HDMI screens

Specifications

• 1x multi-rate 12G-SDI input
• 1x HDMI 2.0 Type A output plus 1x SDI loop output
• SDI rates 270Mb, 1.5G, 3G, 6G and 12G
• Resolutions up to 2160p60 and 4K DCI up to 60
• 33 point 3D LUT support
• Power consumption 4W maximum, operating voltage 4.4V to 5.25V DC

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
