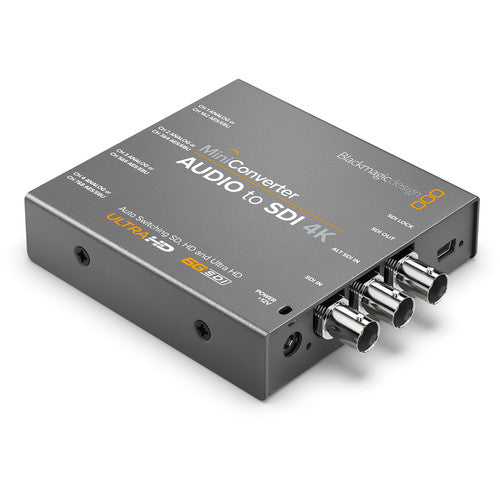

Blackmagic Design Mini Converter - Audio to SDI 4K
Embeds 4 channels of analog or 8 channels of AES/EBU audio into any SD, HD or 6G-SDI video connection up to 4K.
SKU: BLA-CONVMCAUDS4K
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter Audio to SDI 4K embeds professional audio directly into any SDI video connection, with full support for resolutions up to Ultra HD and 4K DCI. It accepts 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio and embeds them into an SD, HD, 3G or 6G-SDI signal.

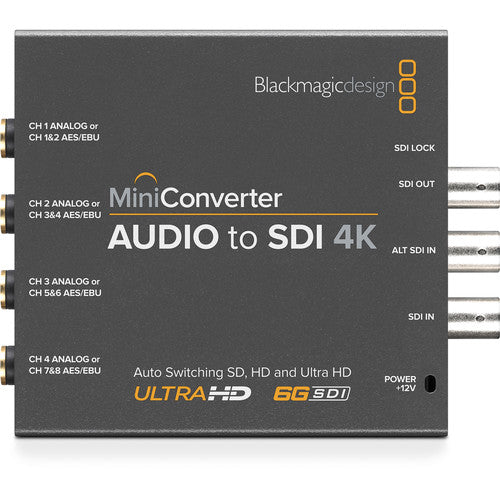

With automatic format detection across SD, HD and 6G-SDI, a redundant ALT SDI input and standard 1/4 inch jack connections, it is a reliable way to add high quality audio to 4K video feeds in broadcast, studio and live production environments.
Key Features
- Embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio into SDI
- 6G-SDI supports resolutions up to Ultra HD 3840x2160 and 4K DCI 4096x2160
- Automatic detection and switching across SD, HD and 6G-SDI
- Redundant ALT SDI input with automatic failover if the main signal is lost
- Professional audio on standard 1/4 inch jacks at 48 kHz, 24-bit
- Rugged compact metal housing with a universal 12V power supply
Ideal For
- Adding external audio sources to 4K SDI camera and switcher feeds
- Live production and outside broadcast audio embedding
- Ultra HD studio and post production workflows
- Integrating analog and AES/EBU audio into 6G-SDI infrastructure
- Broadcast facilities needing redundant SDI signal paths
Specifications
- SDI input: SD, HD and 6G-SDI plus redundant ALT input
- SDI output: 1 embedded SDI output
- Audio: 4 channels analog or 8 channels AES/EBU on 1/4 inch jacks
- Supports resolutions up to 2160p Ultra HD and 4K DCI
- Power consumption: 8.40 Watts, operating voltage 12V to 31V DC
- Operating temperature: 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 1x SD/HD/6G-SDI plus 1x redundant ALT SDI |
| SDI Outputs | 1x embedded SDI output |
| Max Resolution | Ultra HD 3840x2160 and 4K DCI 4096x2160 |
| Analog Audio | 4 channels balanced (1/4 inch jacks) |
| AES/EBU Audio | 8 channels balanced (1/4 inch jacks) |
| HD Formats | 720p, 1080i, 1080p and 1080PsF |
| 4K Formats | 2160p23.98 to 2160p30 and 4K DCI |
| Audio Sampling | 48 kHz, 24-bit |
| SDI Rate | Auto SD, HD and 6G-SDI switching |
| Power | +12V universal supply, 8.40 Watts |
| Operating Voltage | 12V to 31V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and power supply with international adapters |
Audio Embedding up to 4K
The 6G-SDI connection embeds audio into video at resolutions up to Ultra HD and 4K DCI. Add high quality sound to your modern 4K SDI workflow with ease.
Flexible Audio Inputs
Embed up to 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio. All audio connects on standard 1/4 inch jacks at 48 kHz and 24-bit.
Automatic Format Switching
The converter detects and switches between SD, HD and 6G-SDI automatically. A redundant ALT SDI input provides failover if the main feed is lost.
