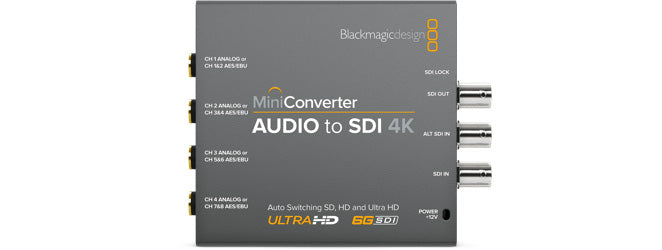

Blackmagic Design Mini Converter - Audio to SDI 4K

The Blackmagic Design Mini Converter Audio to SDI 4K embeds professional audio directly into any SDI video connection, with full support for resolutions up to Ultra HD and 4K DCI. It accepts 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio and embeds them into an SD, HD, 3G or 6G-SDI signal.

With automatic format detection across SD, HD and 6G-SDI, a redundant ALT SDI input and standard 1/4 inch jack connections, it is a reliable way to add high quality audio to 4K video feeds in broadcast, studio and live production environments.

Key Features

• Embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio into SDI
• 6G-SDI supports resolutions up to Ultra HD 3840x2160 and 4K DCI 4096x2160
• Automatic detection and switching across SD, HD and 6G-SDI
• Redundant ALT SDI input with automatic failover if the main signal is lost
• Professional audio on standard 1/4 inch jacks at 48 kHz, 24-bit
• Rugged compact metal housing with a universal 12V power supply

Ideal For

• Adding external audio sources to 4K SDI camera and switcher feeds
• Live production and outside broadcast audio embedding
• Ultra HD studio and post production workflows
• Integrating analog and AES/EBU audio into 6G-SDI infrastructure
• Broadcast facilities needing redundant SDI signal paths

Specifications

• SDI input: SD, HD and 6G-SDI plus redundant ALT input
• SDI output: 1 embedded SDI output
• Audio: 4 channels analog or 8 channels AES/EBU on 1/4 inch jacks
• Supports resolutions up to 2160p Ultra HD and 4K DCI
• Power consumption: 8.40 Watts, operating voltage 12V to 31V DC
• Operating temperature: 0 to 40 degrees Celsius

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
