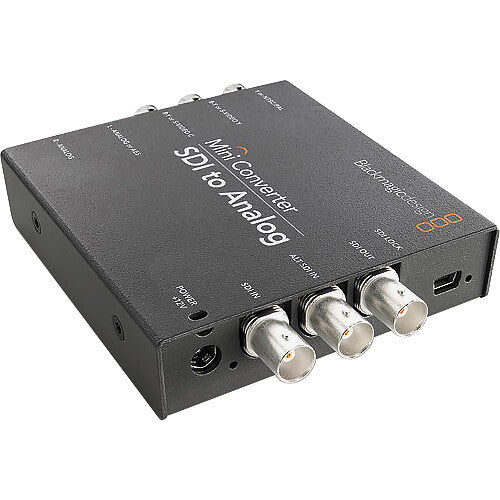

Blackmagic Design Mini Converter - SDI to Analog
Converts SDI to analog component, S-Video and NTSC or PAL composite, with built in HD to SD down conversion and audio.
SKU: BLA-CONVMASA
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

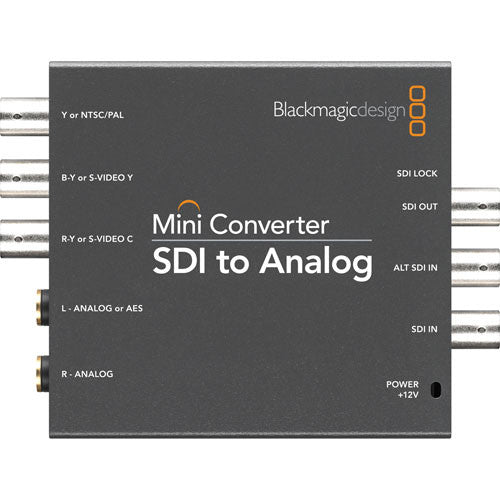

The Blackmagic Design Mini Converter SDI to Analog converts SDI video from professional broadcast equipment into analog component, S-Video and NTSC or PAL composite output. A built in hardware down converter lets you connect HD-SDI sources to standard definition analog equipment.

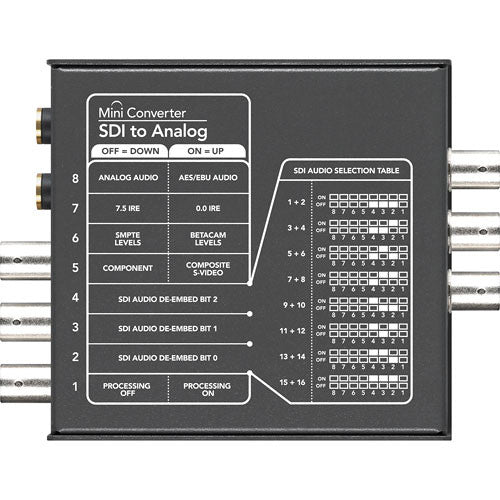

Two channels of balanced analog audio and two channels of AES/EBU digital audio are de-embedded on quarter inch jacks, while a redundant ALT SDI input automatically takes over if the main signal fails.
Key Features
- Converts SDI to component, S-Video and NTSC or PAL composite
- Built in hardware down converter for HD to SD output
- Redundant ALT SDI input for automatic failover
- De-embeds balanced analog and AES/EBU digital audio
- Auto detection of HD and SD SDI inputs
- Configured via USB and Converter Utility software
Ideal For
- Feeding legacy analog monitors and recorders from SDI
- Connecting HD-SDI to standard definition analog gear
- Driving projectors and displays with analog inputs
- Broadcast facilities needing input redundancy
- Archive playback and monitoring workflows
Specifications
- 1x SDI input plus 1x ALT SDI input
- Component, S-Video and composite analog output
- SDI rates: 270Mb and 1.5G with auto detect
- 2ch balanced analog and 2ch AES/EBU audio out
- 12V to 15V DC, 8.04W consumption
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Input | 1x SD/HD/1.5G-SDI plus 1x ALT SDI |
| Analog Video Out | Component, S-Video, NTSC, PAL |
| Down Converter | Built in HD to SD |
| SDI Rates | 270Mb and 1.5G with auto detect |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080PsF up to 1080p30 |
| Analog Audio Out | 2ch balanced on 1/4 inch jacks |
| Digital Audio Out | 2ch AES/EBU |
| Control | USB and Converter Utility |
| Power Consumption | 8.04W |
| Operating Voltage | 12V to 15V DC |
| Operating Temperature | 0 to 40 degrees C |
| Included | Converter and 12V universal PSU |
SDI Out To Analog
Convert SDI video to analog component, S-Video and NTSC or PAL composite. It is the easy way to drive legacy monitors, recorders and projectors from a modern SDI signal.
Built In Down Converter
A hardware down converter lets you connect HD-SDI sources directly to standard definition analog equipment. The unit auto detects HD and SD inputs so setup is simple.
Redundant Input
A second ALT SDI input automatically switches over if the main feed is lost, protecting critical playout. Two channels of analog and AES/EBU audio are de-embedded alongside the video.
