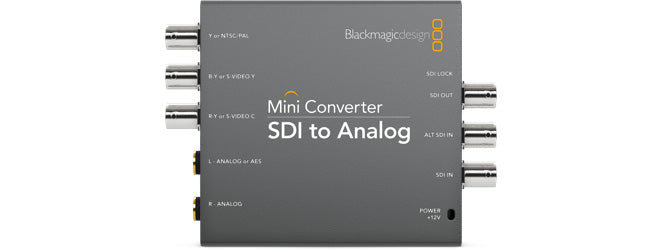

Blackmagic Design Mini Converter - SDI to Analog
Converts SDI to analog component, S-Video and NTSC or PAL composite, with built in HD to SD down conversion and audio.
SKU: BLA-CONVMASA
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI to Analog converts SDI video from professional broadcast equipment into analog component, S-Video and NTSC or PAL composite output. A built in hardware down converter lets you connect HD-SDI sources to standard definition analog equipment.
Two channels of balanced analog audio and two channels of AES/EBU digital audio are de-embedded on quarter inch jacks, while a redundant ALT SDI input automatically takes over if the main signal fails.
Key Features
- Converts SDI to component, S-Video and NTSC or PAL composite
- Built in hardware down converter for HD to SD output
- Redundant ALT SDI input for automatic failover
- De-embeds balanced analog and AES/EBU digital audio
- Auto detection of HD and SD SDI inputs
- Configured via USB and Converter Utility software
Ideal For
- Feeding legacy analog monitors and recorders from SDI
- Connecting HD-SDI to standard definition analog gear
- Driving projectors and displays with analog inputs
- Broadcast facilities needing input redundancy
- Archive playback and monitoring workflows
Specifications
- 1x SDI input plus 1x ALT SDI input
- Component, S-Video and composite analog output
- SDI rates: 270Mb and 1.5G with auto detect
- 2ch balanced analog and 2ch AES/EBU audio out
- 12V to 15V DC, 8.04W consumption
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Input | 1x SD/HD/1.5G-SDI plus 1x ALT SDI |
| Analog Video Out | Component, S-Video, NTSC, PAL |
| Down Converter | Built in HD to SD |
| SDI Rates | 270Mb and 1.5G with auto detect |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080PsF up to 1080p30 |
| Analog Audio Out | 2ch balanced on 1/4 inch jacks |
| Digital Audio Out | 2ch AES/EBU |
| Control | USB and Converter Utility |
| Power Consumption | 8.04W |
| Operating Voltage | 12V to 15V DC |
| Operating Temperature | 0 to 40 degrees C |
| Included | Converter and 12V universal PSU |
SDI Out To Analog
Convert SDI video to analog component, S-Video and NTSC or PAL composite. It is the easy way to drive legacy monitors, recorders and projectors from a modern SDI signal.
Built In Down Converter
A hardware down converter lets you connect HD-SDI sources directly to standard definition analog equipment. The unit auto detects HD and SD inputs so setup is simple.
Redundant Input
A second ALT SDI input automatically switches over if the main feed is lost, protecting critical playout. Two channels of analog and AES/EBU audio are de-embedded alongside the video.
