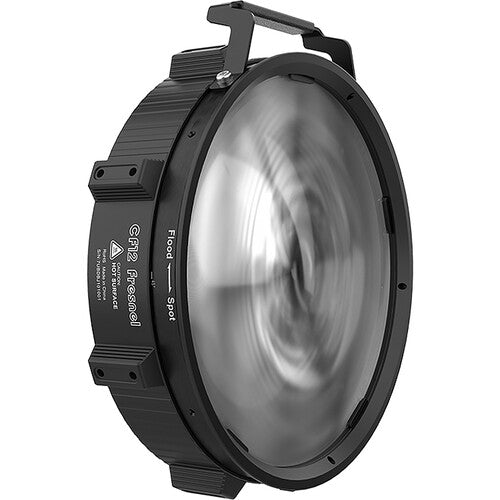

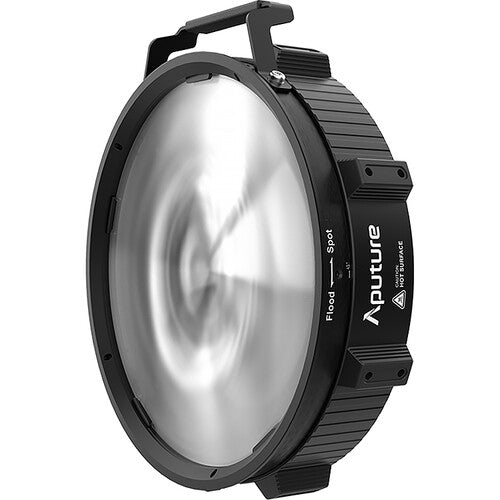

Aputure CF12 Fresnel
The Aputure CF12 Fresnel is a compact 12-inch Bowens-mount Fresnel for the STORM 1000c and 1200x, with a 15 to 45 degree beam that boosts output up to 9.9 times. From Prosales, authorised Aputure distributor.
SKU: AP20334A30
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Aputure CF12 Fresnel is a compact 12-inch Bowens-mount Fresnel engineered for the STORM 1000c and 1200x, converting their broad point-source output into a focusable beam. A dual-expanding focusing system with multiple lens elements keeps it small and light while delivering even output and smooth centre-to-edge falloff across a 15 to 45 degree beam range. It intensifies the STORM 1000c by up to 9 times and the STORM 1200x by up to 9.9 times, and accepts the optional CF12 Barn Doors for precise shaping.
Key Features
- 12-inch Bowens-mount Fresnel for STORM 1000c and 1200x
- Variable 15 to 45 degree beam, flood to spot, without changing fixtures
- Boosts output up to 9x on the 1000c and up to 9.9x on the 1200x
- Dual-expanding focusing system keeps it compact at 4.72kg
- Even output and smooth centre-to-edge falloff at all beam angles
- Accepts optional CF12 Barn Doors for four-leaf shaping
- Ships with a dedicated carrying case
Compatible With
- Aputure STORM 1000c
- Aputure STORM 1200x
- Aputure LS 1200d Pro
- Aputure LS 600c Pro and LS 600c Pro II
Ideal For
- Long-throw key and hard-light work on large sets
- Tight, controllable spots from high-output fixtures
- Productions needing focusable Fresnel quality in a compact package
Distributed exclusively in South Africa by Prosales.
| Type | Fresnel Modifier |
| Mount | Bowens (ProLock) |
| Lens Diameter | 12 inches |
| Beam Angle | 15 to 45 degrees |
| Output Gain (1000c) | Up to 9x (58,500 lux at 5600K, 1m) |
| Output Gain (1200x) | Up to 9.9x (84,400 lux at 5600K, 1m) |
| Compatible With | STORM 1000c, STORM 1200x, LS 1200d Pro, LS 600c Pro, LS 600c Pro II |
| Barn Doors | Accepts optional CF12 Barn Doors |
| Dimensions | 38.3 x 37.0 x 12.8 cm |
| Weight | 4.72 kg (10.41 lb) |
| Case Weight (loaded) | 8.50 kg (18.74 lb) |
| Included | 1x CF12 Fresnel, 1x Carrying Case |
| SKU | AP20334A30 |
Large-Format CF12 Fresnel
A 12-inch Bowens Fresnel that brings professional beam quality to the STORM 1000c and 1200x. It turns the broad point-source output into smooth, controllable light for clean, shaped coverage.
Spot to Flood at High Output
Focus across a 15 to 45 degree range to dial from a tight spot to a wide flood without changing fixtures. The Fresnel boosts output up to 9 times on the 1000c and up to 9.9 times on the 1200x.
Barn Doors Compatible
The CF12 accepts optional CF12 Barn Doors for precise beam shaping. Add four-leaf flagging to keep light exactly where you want it on set, and pack it all away in the included carrying case.
