Aputure InfiniBars PB12 8-Light Kit
The Aputure INFINIBAR PB12 8-Light Kit delivers 32ft and 768 programmable RGBWW pixels across eight 4ft bars, with a 330W power adapter, light control grids and a flight case, the complete large format pixel array for volume stages and broadcast studios. From Prosales, authorised Aputure distributor.
SKU: APL0300AX2
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Aputure INFINIBAR PB12 8-Light Kit is the ultimate pixel lighting system for volume stages and large scale LED installations. It combines eight 4ft RGBWW INFINIBAR PB12 pixel bars, each carrying 96 individually addressable pixels, for 768 total pixels and 32ft of addressable LED coverage in a single kit. A 330W power adapter with 8 way splitters, light control grids, connectors and a flight case complete the package. With a wide 2000K to 10000K colour range and 96+ CRI, it is built for the most demanding film, broadcast and live production environments.
What's in the Kit

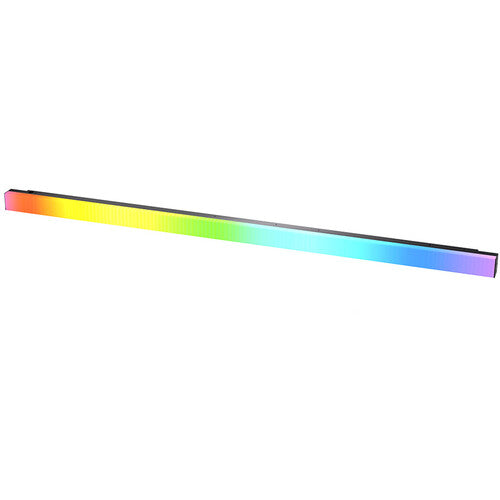

- 8x Aputure INFINIBAR PB12 (4ft RGBWW pixel bars, 96 pixels each)
- 1x 330W power adapter with 8 way splitters
- 8x 48W DC power adapters and AC locking power cables
- 8x 45 degree light control grids
- 8x clamp to baby pin adapters and straight connectors
- 16x magnetic spacers and a 5mm hex wrench

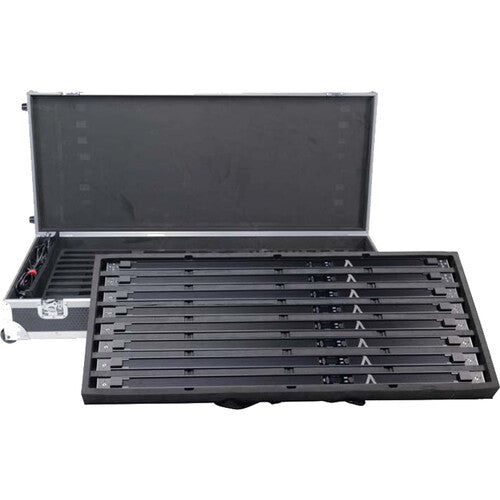

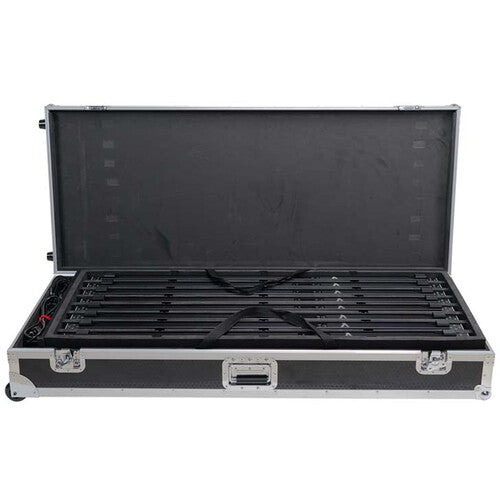

- 1x flight case
Key Features
- 768 addressable RGBWW pixels across eight bars and 32ft of coverage
- 2000K to 10000K CCT with full RGBWW colour mixing
- 96+ CRI and 98+ TLCI for accurate skin tones
- Built in battery for roughly 80 minutes at full output per bar
- Control via Sidus Link, DMX, RDM and LumenRadio CRMX
Ideal For
- Volume stages and virtual production
- Large studio and broadcast installations
- Concerts, music videos and live events
Distributed exclusively in South Africa by Prosales.
| Contents | 8x INFINIBAR PB12, 330W power adapter, grids, connectors, flight case |
| Total Coverage | 32ft |
| Pixels Total | 768 (96 per bar) |
| Bar Length | 120.4 x 4.5 x 4.3cm |
| Bar Weight | 1.96kg each |
| CCT Range | 2000K to 10000K |
| CRI | 96+ |
| TLCI | 98+ |
| Max Power (per bar) | 36.5W |
| Battery Life Per Bar | Approx. 80 min at max output |
| Beam Angle | 120 degrees (half peak) |
| Control | Sidus Link App, DMX, RDM, LumenRadio CRMX |
| Kit Power | 330W adapter with 8 way splitters |
| Case | Flight case |
32ft, 768 Pixels at Maximum Scale
Eight 4ft PB12 bars deliver 32ft of 768 pixel RGBWW coverage, at 96 pixels per bar. This is the largest single kit pixel array in the range, built for volume stages and big creative installations.
Fully Self Contained System
A 330W adapter with 8 way splitters, DC adapters, locking cables, grids, connectors and a flight case are included, giving you everything needed to deploy a professional lighting array out of the box and keep all eight bars protected between jobs.
Battery Power for Cable Free Rigs
Each PB12 bar runs for roughly 80 minutes on its built in battery at full output, so you can position the array without trailing power cables. Control over Sidus Link, DMX, RDM and LumenRadio CRMX speeds up setups on volume stages and broadcast floors.
