Aputure InfiniBars PB6 8-Light Kit
The Aputure INFINIBAR PB6 8-Light Kit delivers eight 2ft RGBWW pixel bars (16ft, 384 addressable pixels) with a 330W power adapter, light control grids and a flight case, the large array kit for volume stages and film sets. From Prosales, authorised Aputure distributor.
SKU: APM0300AX2
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

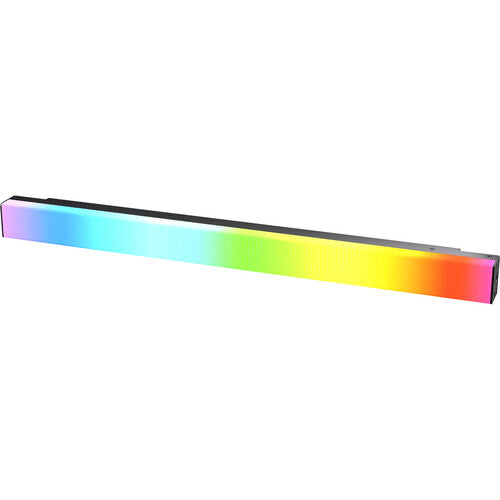

The Aputure INFINIBAR PB6 8-Light Kit is a complete, turnkey pixel lighting system. It pairs eight 2ft RGBWW INFINIBAR PB6 pixel bars with a 330W power adapter and 8 way splitters, light control grids, connectors and a flight case, giving you everything needed to build a 16ft pixel wall or any large creative lighting installation. Each PB6 carries 48 individually addressable RGBWW pixels with a wide 2000K to 10000K colour range and 96+ CRI, making this the go to kit for volume stages, music videos and broadcast environments that need large scale addressable LED.
What's in the Kit
- 8x Aputure INFINIBAR PB6 (2ft RGBWW pixel bars)
- 1x 330W power adapter with 8 way splitters
- 8x 48W DC power adapters and AC locking power cables
- 8x 45 degree light control grids
- 8x clamp to baby pin adapters and straight connectors
- 16x magnetic spacers and a 5mm hex wrench
- 1x flight case
Key Features
- 384 addressable RGBWW pixels across eight bars and 16ft of coverage
- 2000K to 10000K CCT with full RGBWW colour mixing
- 96+ CRI and 98+ TLCI for accurate skin tones
- Control via Sidus Link, DMX, RDM and LumenRadio CRMX
- Powered together from the included 330W adapter for full pixel wall builds
Ideal For
- Volume stages and virtual production
- Music videos and concert lighting
- Broadcast sets and large studio installations
Distributed exclusively in South Africa by Prosales.
| Contents | 8x INFINIBAR PB6, 330W power adapter, grids, connectors, flight case |
| Total Coverage | 16ft |
| Pixels Total | 384 (48 per bar) |
| Bar Length | 60.4 x 4.5 x 4.3cm |
| Bar Weight | 1.0kg each |
| CCT Range | 2000K to 10000K |
| CRI | 96+ |
| TLCI | 98+ |
| Max Power (per bar) | 18W |
| Beam Angle | 120 degrees (half peak) |
| Control | Sidus Link App, DMX, RDM, LumenRadio CRMX |
| Kit Power | 330W adapter with 8 way splitters |
| Case | Flight case |
Eight PB6 Bars, 16ft Array
Eight 2ft RGBWW pixel bars deliver 16ft of seamlessly extensible pixel lighting with 384 addressable pixels in total, at 48 pixels per bar. Run them powered simultaneously from the included 330W adapter to build a full pixel wall.

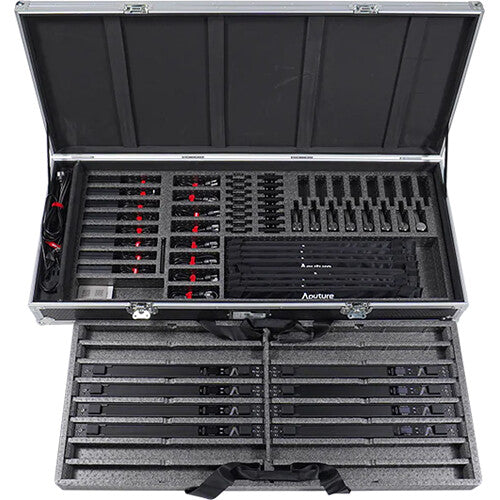

Flight Case and Full Power Supply
The kit includes a flight case and a 330W adapter with 8 way splitters, plus DC adapters, locking cables, grids and connectors, so the entire system stays organised, protected and ready to deploy in one package.
Built for Large Scale Creative Setups
With 384 RGBWW pixels across 16ft, a 2000K to 10000K range and 96+ CRI, this kit suits volume stages, music videos and broadcast. Control over Sidus Link, DMX, RDM and LumenRadio CRMX lets the bars form walls, arrays and custom shapes.
