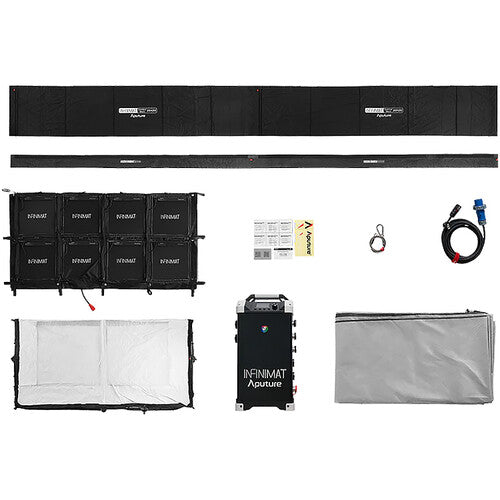

Aputure INFINIMAT 20x20 Kit
The Aputure INFINIMAT 20x20 Kit is a massive flexible RGBWW LED mat delivering large-format soft light for film sets, broadcast studios, and stage productions. From Prosales, South Africa's authorised Aputure distributor.
SKU: AP80039AR3
Available on backorder: we don't hold this one on the shelf, but you can order it now and we'll bring it in for you. Lead time is usually around 2 to 3 weeks, though it's often sooner, and we'll confirm the exact timing as soon as your order is placed.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
We bring this item in to order. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Aputure INFINIMAT 20x20 Kit is the largest flexible LED light mat in the Aputure range, a full 20x20 foot RGBWW LED mat designed for feature film, volume stage and large-scale studio productions where only the biggest overhead source will do.
Key Features
- Massive 580 x 580cm (roughly 19 x 19ft) flexible RGBWW LED mat with 64 controllable pixels in 2x2 modules.
- Wide 2,000K to 10,000K CCT range with CRI 96+ and TLCI 97+ for accurate, cinema-grade colour.
- Up to 6400W of light output, driven by 1600W INFINIMAT Control Boxes for full power management.
- IP65 weather resistance and a wide -20C to 50C operating range for demanding stage and location work.
- Full control via On-Board menus, Sidus Link and Sidus Link Pro apps, DMX/RDM, CRMX and sACN/Art-Net.
Ideal For
- Feature film and high-end episodic productions needing a huge soft overhead source.
- Volume and virtual production stages.
- Large studio key, fill and colour-ambience lighting.
Distributed exclusively in South Africa by Prosales.
| Type | Flexible RGBWW LED Mat |
| Mat Dimensions | 580 x 580 x 37cm (approx 19 x 19ft) |
| Mat Weight | 30kg |
| Colour System | RGBWW |
| Pixels | 64 pixels (2x2 modules) |
| CCT Range | 2,000K to 10,000K |
| CRI | 96+ |
| TLCI | 97+ |
| Max Power Output | 6400W |
| Max Power Consumption | 7680W |
| Control Box | INFINIMAT Control Box 1600W |
| Weather Resistance | IP65 |
| Operating Temperature | -20C to 50C |
| Control Methods | On-Board, Sidus Link and Sidus Link Pro apps, DMX/RDM, CRMX, sACN/Art-Net |
| Wireless Range | Up to 100m |

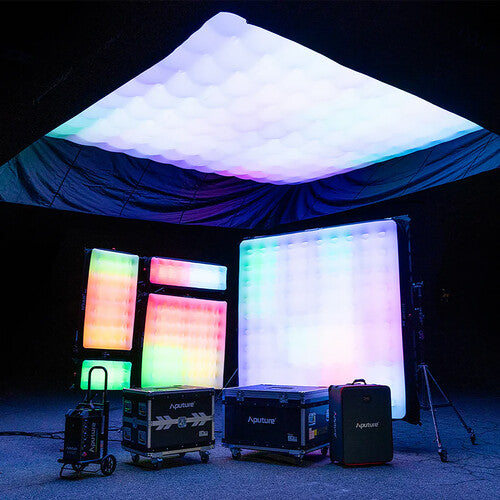

20x20 Mega-Format Coverage

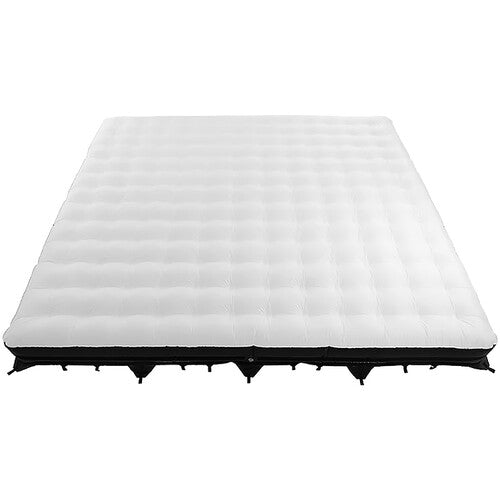

This is the largest INFINIMAT, a full 20x20 of flexible RGBWW LED measuring roughly 580 x 580cm. It is built for massive studio overhead rigs and stage work where only the biggest soft source will do.
Cinema-Grade Soft Light at Scale
With a 2,000K to 10,000K CCT range, CRI 96+ and TLCI 97+, it produces even, beautiful soft light across an enormous conformable surface that would be almost impossible to achieve with rigid fixtures. The mat shapes to the rig and the set rather than dictating them.
Built for Feature and Volume Work
With full RGBWW control, up to 6400W of output and protocols spanning DMX/RDM, CRMX and sACN/Art-Net, the 20x20 mat suits feature film, volume stage, and large-scale studio productions. A single source can deliver colour ambience or a clean, wrapping overhead key for big sets.
