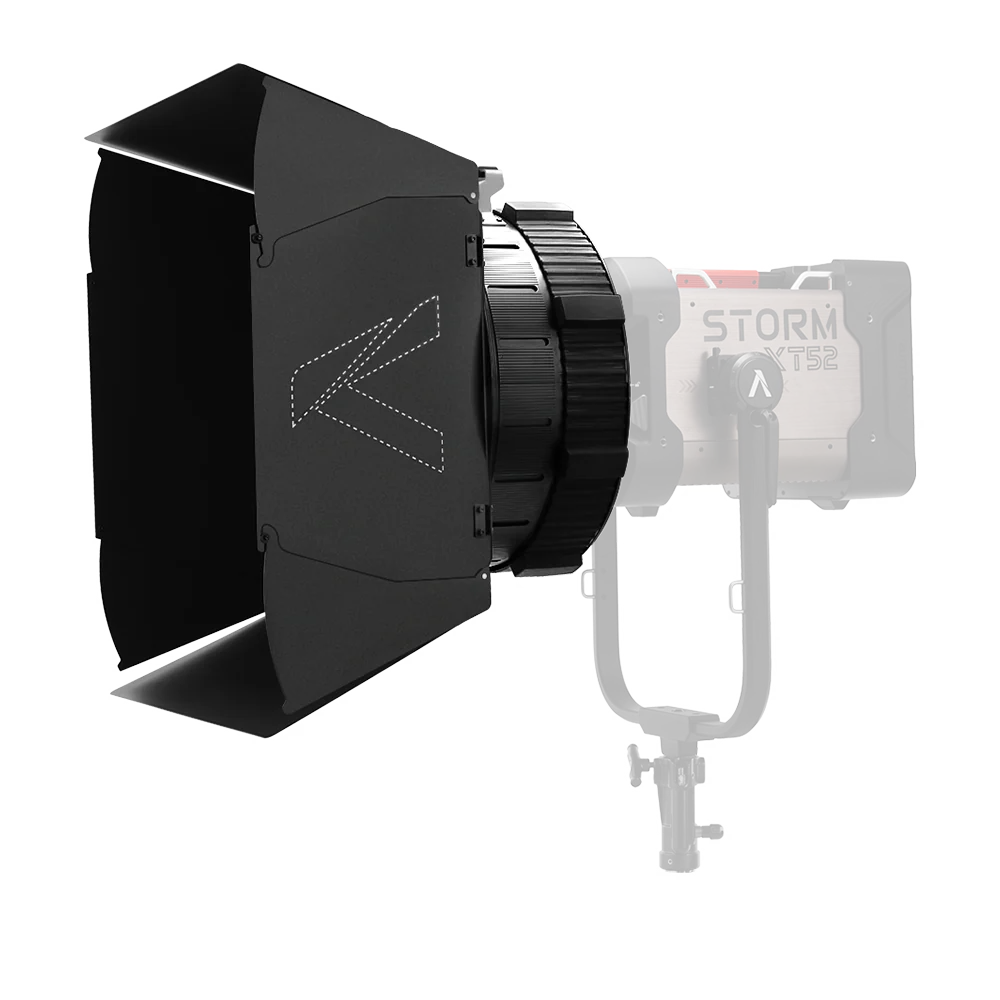

Aputure Motorized CF16 Fresnel Flight Case Kit
The Aputure Motorized CF16 Fresnel Flight Case Kit pairs the 16 inch motorised CF16 Fresnel with barn doors, a safety cable, and a protective flight case, with remote zoom from 18 to 50 degrees for the STORM XT52. From Prosales, South Africa's authorised Aputure distributor.
SKU: AA0706028U
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

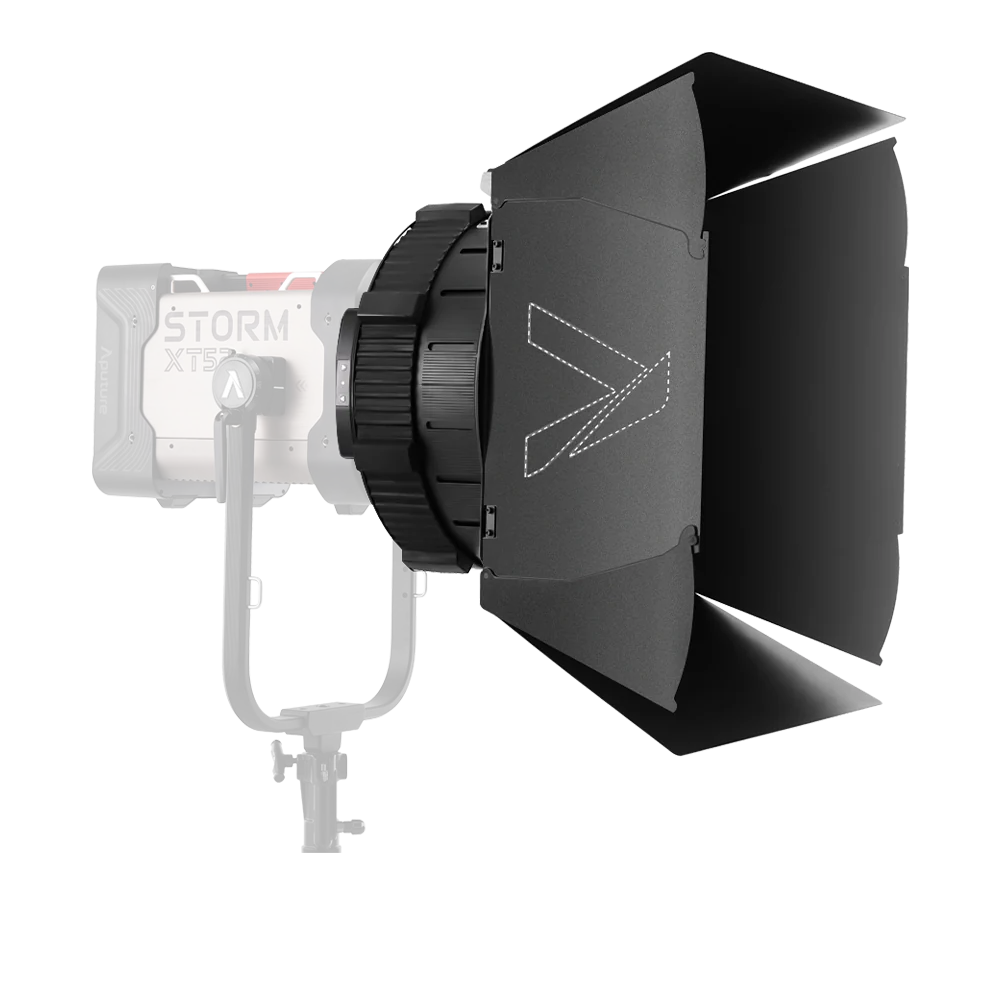

The Aputure Motorized CF16 Fresnel Flight Case Kit is a complete optical solution for the STORM XT52, a motorised 16 inch Fresnel lens with remote focus control, packaged in a protective flight case for location transport. Zoom from an 18 degree spot to a 50 degree flood without touching the fixture, while amplifying the lamp output by up to 7 times.
Key Features
- Motorised 16 inch Fresnel: remote focus from 18 degree spot to 50 degree flood
- Up to 7x output boost compared to the bare fixture
- Remote control via DMX, CRMX, Sidus Link, and Sidus Link Pro
- IP65 rated for dust and water resistance
- Includes barn doors, safety cable, and flight case
Compatible With
- Designed for the STORM XT52
Ideal For
- Rigged or hard to reach lighting positions where manual adjustment is impractical
- Touring and rental productions transporting high value modifiers
- Controlled spot to flood key lighting on film and TV sets
Distributed exclusively in South Africa by Prosales.
| Contents | Motorized CF16 Fresnel, CF16 barn doors, safety cable, flight case |
| Lens diameter | 16 inches |
| Beam angle | 18 degrees (spot) to 50 degrees (flood) |
| Output boost | Up to 7 times |
| Focus motor throw | 12 seconds |
| Control protocols | DMX, CRMX, Sidus Link, Sidus Link Pro |
| IP rating | IP65 |
| Idle noise | 33 dBA at 1m |
| Motor and fan noise | 58 dBA at 1m |
| Fresnel dimensions | 56.4 x 51.9 x 23.4 cm |
| Fresnel weight | 11.80 kg |
| Flight case dimensions | 74.0 x 37.5 x 83.5 cm |
| Flight case empty weight | 29.00 kg |
| Flight case loaded weight | 44.45 kg |
| Compatibility | STORM XT52 |
Motorized CF16 Plus Flight Case

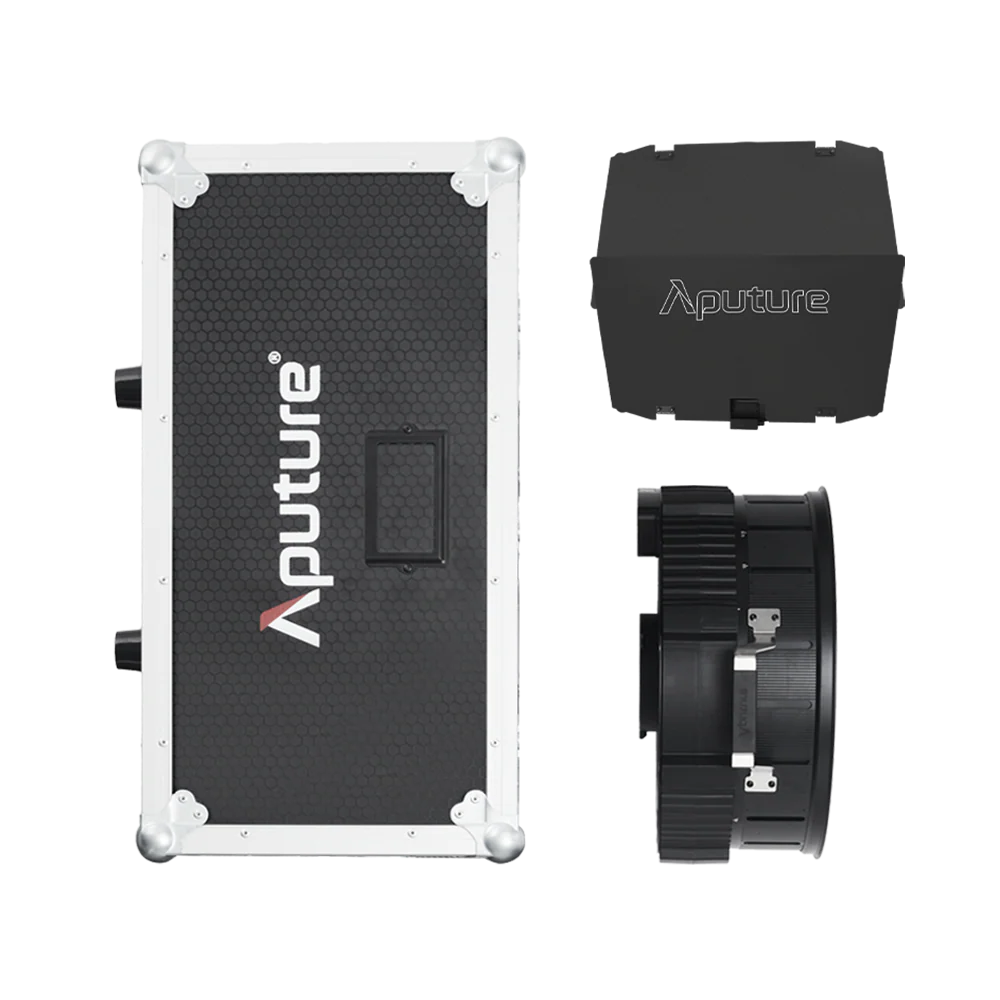

The complete travel ready package puts the Motorized CF16 Fresnel, CF16 barn doors, and safety cable inside a rugged flight case. Everything for the STORM XT52 optical setup moves between locations as one protected unit.
Protect Your Investment
The rugged flight case keeps the Motorized CF16 safe through air freight and long haul production travel, with a loaded weight of 44.45 kg. This high value modifier arrives ready to mount every time.
Remote Zoom, 18 to 50 Degrees
Zoom from an 18 degree spot to a 50 degree flood without touching the fixture, controlling focus remotely via DMX, CRMX, Sidus Link, or Sidus Link Pro. It is ideal for rigged or hard to reach lighting positions where manual adjustment is impractical.
