Aputure Motorized F14 Fresnel

Aputure Motorized F14 Fresnel

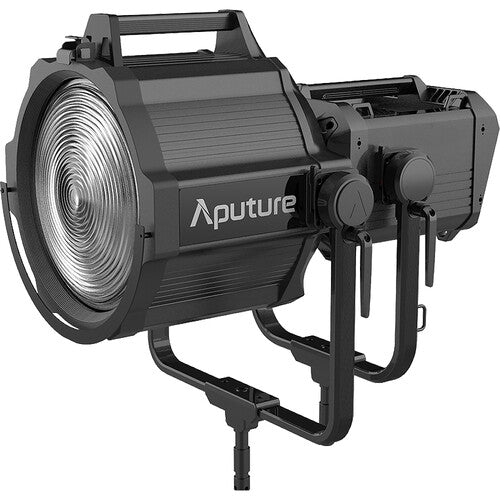

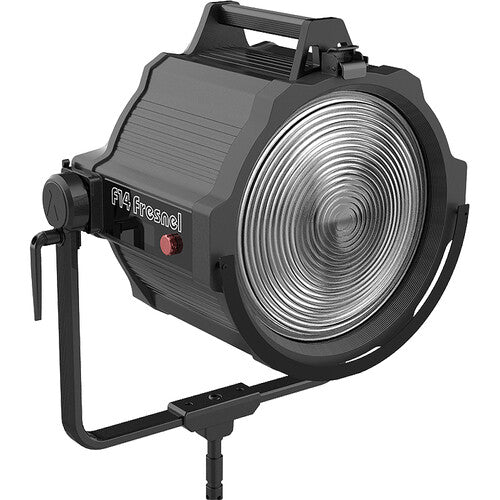

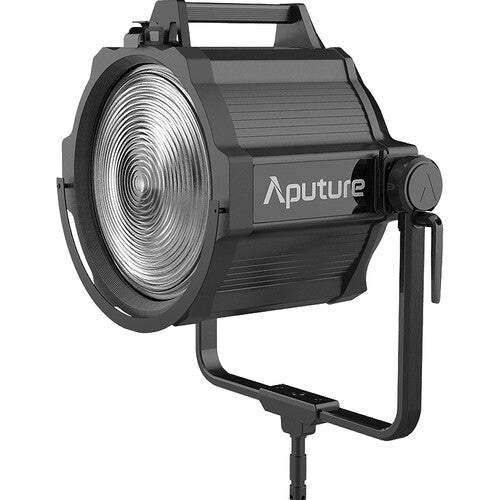

The Aputure Motorized F14 Fresnel is a high-performance 14-inch optical lens modifier designed for Aputure’s Electro Storm CS15 and XT26 fixtures. This motorized accessory allows for smooth, remote operation of pan and tilt adjustments, enhancing your workflow and enabling precise control over beam shaping.

The motorized F14 Fresnel offers a beam angle range from 18° to 50°, enabling quick and easy adjustments to the size and intensity of your light. It provides uniform focus and sharpness, making it perfect for precision lighting in film, television, and commercial production.

Key Features:
– Motorized Beam Angle Adjustment: Adjusts the beam from 18° to 50° in approximately 6 seconds, providing fast, precise control.
– Electronic Aputure Mount: Facilitates power and data transfer between the Fresnel and compatible fixtures, enabling automatic calibration.
– High-Quality Optical Design: Features dual-lens technology for accurate light shaping and consistent intensity.
– Control Options: Operate remotely via the Sidus Link app, DMX/RDM, or etherCON, or use the onboard control knob.
– Durable Construction: Built with an all-metal body and an IP65 rating, the Fresnel is weather-resistant for use in demanding environments.
– Comprehensive Accessories: Includes a detachable yoke, barn doors for light shaping, a sled for stable placement, a safety chain, and a flight case for easy transport.

Specifications:
– Power Consumption: 48V, 0.4A
– Beam Angle Range: 18° to 50°
– Zoom Speed: Approximately 6 seconds across the zoom range at constant speed
– Ingress Protection: IP65
– Operating Temperature: 0°C to 45°C
– Dimensions:
– Fresnel: 35.5 x 50.0 x 47.25 cm
– Yoke: 64.7 x 8.8 x 58.8 cm
– Barn Doors: 43.5 x 40.0 x 4.5 cm
– Weight:
– Fresnel: 13 kg
– Yoke: 3.5 kg
– Barn Doors: 4 kg
– Total (with accessories): Approximately 20.5 kg
