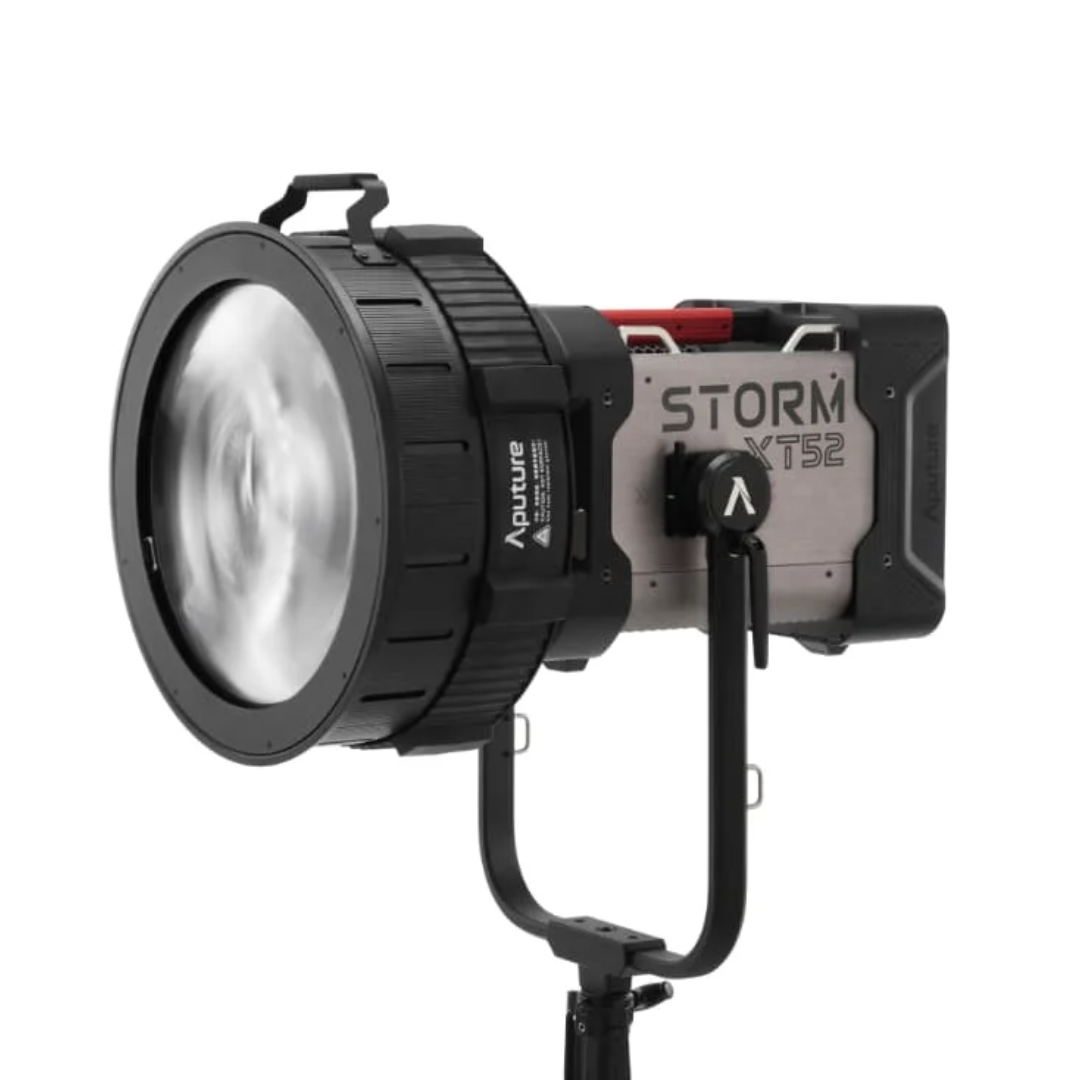

FRESNEL KIT - Aputure STORM XT52 + Aputure Motorized CF16 KIT
The FRESNEL KIT combines the Aputure STORM XT52's 5,200W BLAIR LED output with the Motorized CF16 Fresnel for remote spot-to-flood beam control on demanding film and TV productions. From Prosales, South Africa's authorised Aputure distributor.
SKU: AP070G0155
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The FRESNEL KIT, Aputure STORM XT52 + Motorized CF16 bundles the high-output STORM XT52 with the Motorized CF16 Fresnel into a single purchase. It is the complete point-source plus motorized spot system for large-format film and television production, pairing the BLAIR five-colour engine with remote-controlled spot-to-flood beam shaping.
Key Features
- STORM XT52 lamp head with 5,200W power and up to 4,800W LED output.
- BLAIR five-colour engine (Blue, Lime, Amber, Indigo, Red) covering a 2,500K to 10,000K CCT range.
- CRI greater than 96 and TLCI greater than 96 for reference-grade colour.
- Motorized CF16 Fresnel amplifying output by up to seven times.
- Motorized focus with an 18 degree to 50 degree spot-to-flood range.
- Comprehensive control via DMX, CRMX, Art-Net, sACN, and Sidus Link Pro.
- Both units IP65 rated for demanding environments.
Ideal For
- Large-format film and television productions needing high-output point-source light.
- Sets that require safe, remote beam adjustment from the ground.
- Studios building a ready-to-rig hard-light package in a single purchase.
Distributed exclusively in South Africa by Prosales.
| Light | Aputure STORM XT52 |
| Lamp Head Power | 5200W |
| Maximum LED Output | 4800W |
| Light Engine | BLAIR (Blue, Lime, Amber, Indigo, Red) |
| CCT Range | 2,500K to 10,000K |
| CRI | Greater than 96 |
| TLCI | Greater than 96 |
| Native Beam Angle | 93 degrees (no reflector) |
| Mount | Aputure Mount |
| Fresnel | Motorized CF16, 16 inch |
| Fresnel Beam Range | 18 degrees to 50 degrees |
| Fresnel Output Amplification | Up to 7 times |
| Control | DMX, CRMX, Art-Net, sACN, Sidus Link Pro |
| Weather Rating | IP65 |
| XT52 Lamp Head Weight | 27.80 kg |
| CF16 Fresnel Weight | 11.80 kg |
5200W BLAIR Plus Motorized Fresnel
The STORM XT52's 5,200W BLAIR output passes through the Motorized CF16 Fresnel, which amplifies it by up to seven times for remote spot-to-flood beam control. You shape the beam without ever touching the fixture.
Remote Beam Adjustment on Large Sets
Motorized beam control from the ground means safer, faster adjustments across an 18 to 50 degree range. No ladder calls and no interrupting the shot to reposition crew.
Complete Point-Source System
Buying the STORM XT52 and Motorized CF16 together delivers a ready-to-rig point-source package matched for large-format film and television. One purchase covers both the high-output source and its motorized spot optic, with CRI and TLCI greater than 96 throughout.
