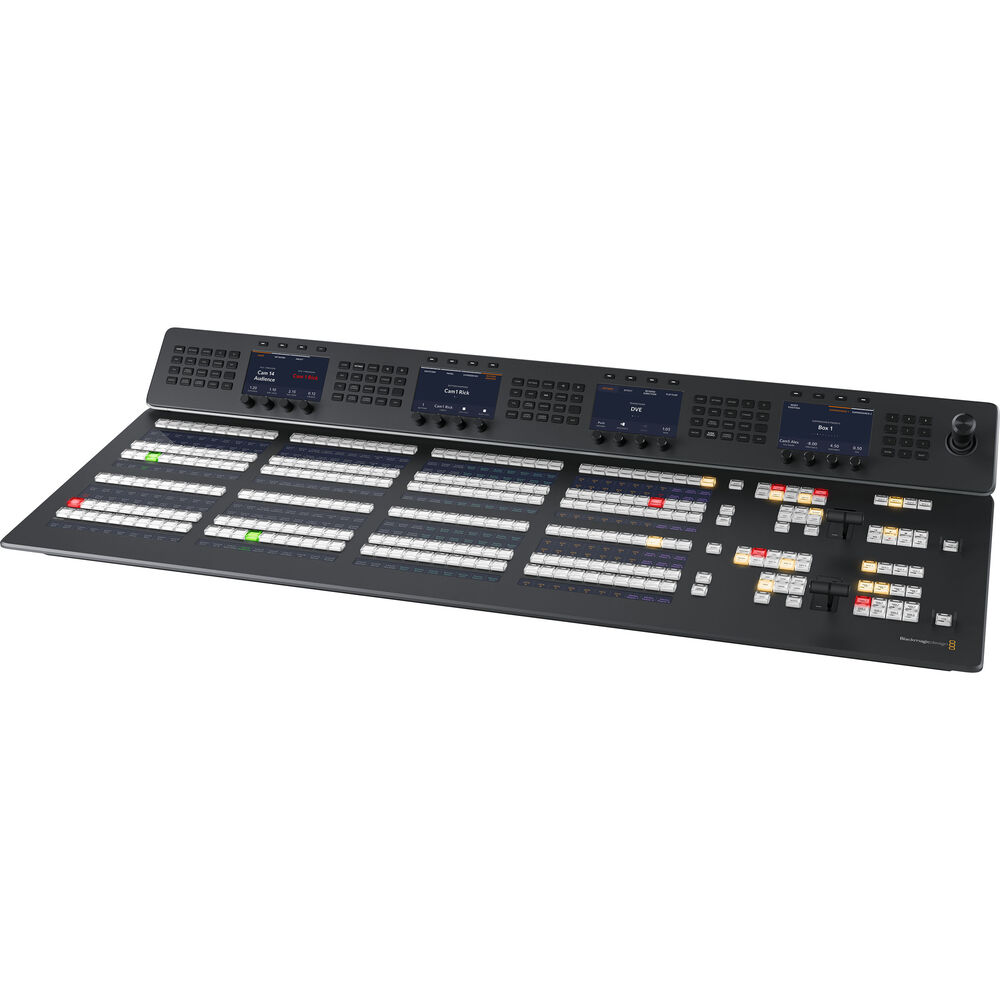

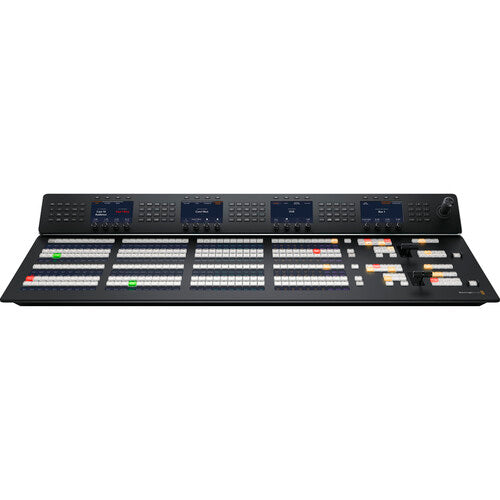

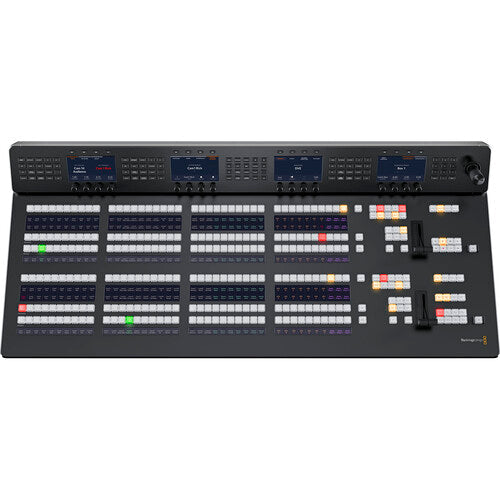

Blackmagic Design ATEM 2 M/E Advanced Panel 40
Flagship two M/E hardware control panel for ATEM switchers, with 40 input buttons per row, dual T-bars and macro banks.
SKU: BLA-SWPANELADV2ME40
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM 2 M/E Advanced Panel 40 is the flagship hardware control surface for ATEM live production switchers, with 40 input buttons on each of its two M/E rows. It is built for the largest broadcast and live event productions, where operators need direct, single press access to a very high number of sources.
Four large system control LCDs, programmable colour backlit buttons with scribble strip labelling and twin weighted T-bar faders give precise, professional control of demanding multi layer shows.
Key Features
- Two M/E rows with 40 input buttons per row
- Four large system control LCDs for menus, labels and status
- Programmable colour backlit buttons with scribble strip labelling
- Two weighted T-bar faders and a professional 3-axis joystick
- Two banks of 40 dedicated macro buttons
- Each row can control up to 4 M/Es in larger switcher systems
- Redundant dual power supplies for reliable live operation
Ideal For
- Major broadcast studios and outside broadcast trucks
- Large arena and stadium live events
- Multi camera sports production galleries
- Large houses of worship and broadcast ministries
- High end production facilities and rental fleets
Specifications
- 2 M/E rows, 40 input buttons per row
- 4 large system control LCDs
- 2 weighted T-bar faders, 3-axis joystick, 2 banks of 40 macro buttons
- 4x 10/100/1000 BASE-T Ethernet with loop output, USB-C for firmware
- Dual 100 to 240V AC redundant power, 160W
- Operating temperature 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Product type | ATEM 2 M/E Advanced hardware control panel |
| M/E rows | 2, each controls up to 4 M/Es |
| Input buttons | 40 per row |
| Crosspoint buttons | Programmable colour backlit with scribble strips |
| System control LCDs | 4 large screens |
| Fader bars | 2 weighted T-bar faders |
| Joystick | Professional 3-axis |
| Macro buttons | 2 banks of 40 |
| On-air indicators | 12 |
| Network | 4x 10/100/1000 BASE-T Ethernet with loop output |
| Firmware port | USB-C |
| Power | Dual 100 to 240V AC redundant, 160W |
| Operating temperature | 0 to 40 degrees Celsius |
| Warranty | 1 year limited |
Eighty Buttons of Direct Control
Two M/E rows with 40 input buttons each give the largest productions instant, single press access to a vast number of sources. Programmable colour backlit buttons and scribble strip labelling keep everything clear under pressure.
Four Large System LCDs
Four large system control LCDs put menus, labels and live status front and centre. Two weighted T-bar faders and a precise 3-axis joystick deliver the smooth, professional feel demanded by top tier shows.
Scales to Massive Productions
Each row can control up to 4 M/Es in larger switcher systems, and dual redundant power keeps the panel live through critical broadcasts. Four Gigabit Ethernet ports with loop output integrate it into any studio.
