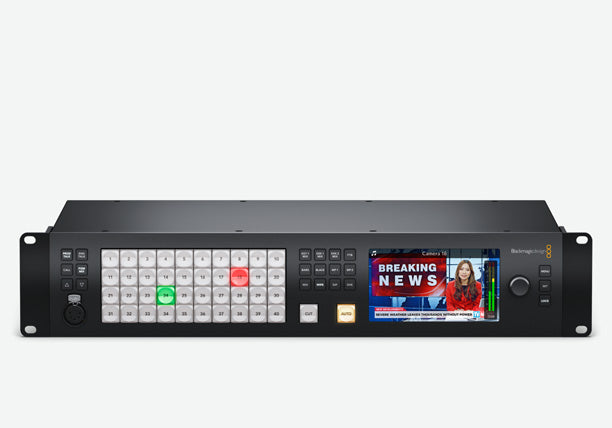

Blackmagic Design ATEM 4 M/E Constellation HD

The ATEM 4 M/E Constellation HD is a massive live production switcher designed for the most demanding broadcast and event productions. With 40 standards converted 3G-SDI inputs, 24 aux outputs and four independent mix effects rows, it delivers the processing power needed for large scale concerts, sports and multi camera shows.

Every SDI input includes a dedicated standards converter, so you can connect cameras and sources running different formats and the switcher converts them automatically. A built in Fairlight audio mixer and integrated front control panel make it a complete production hub in a single rack mount chassis.

Key Features

• 40 independent 3G-SDI inputs, each with its own standards converter
• 24 x 3G-SDI aux outputs for flexible signal routing
• 4 independent M/E rows with 16 ATEM Advanced Keyers
• 4 DVEs plus 2 SuperSource processors for 12 DVEs in total
• 4 independent HD multiviews with selectable 4, 7, 10, 13 or 16 view layouts
• Built in Fairlight audio mixer with parametric EQ, compressor, limiter, expander and noise gate per input
• USB-C webcam output and built in front panel control

Ideal For

• Major concerts and live music events
• Multi camera sports broadcasts
• Large scale corporate and conference productions
• Houses of worship with many camera angles
• Outside broadcast and flyaway kits

Specifications

• 40 x 3G-SDI inputs with standards conversion
• 24 x 3G-SDI aux outputs
• 4 M/E rows, 16 ATEM Advanced Keyers
• 12 total DVEs (4 DVEs plus 2 SuperSource)
• Supports 720p, 1080i and 1080p HD formats
• MADI audio output and input, plus Fairlight mixer
• 5-pin XLR and RJ12 talkback connections

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
