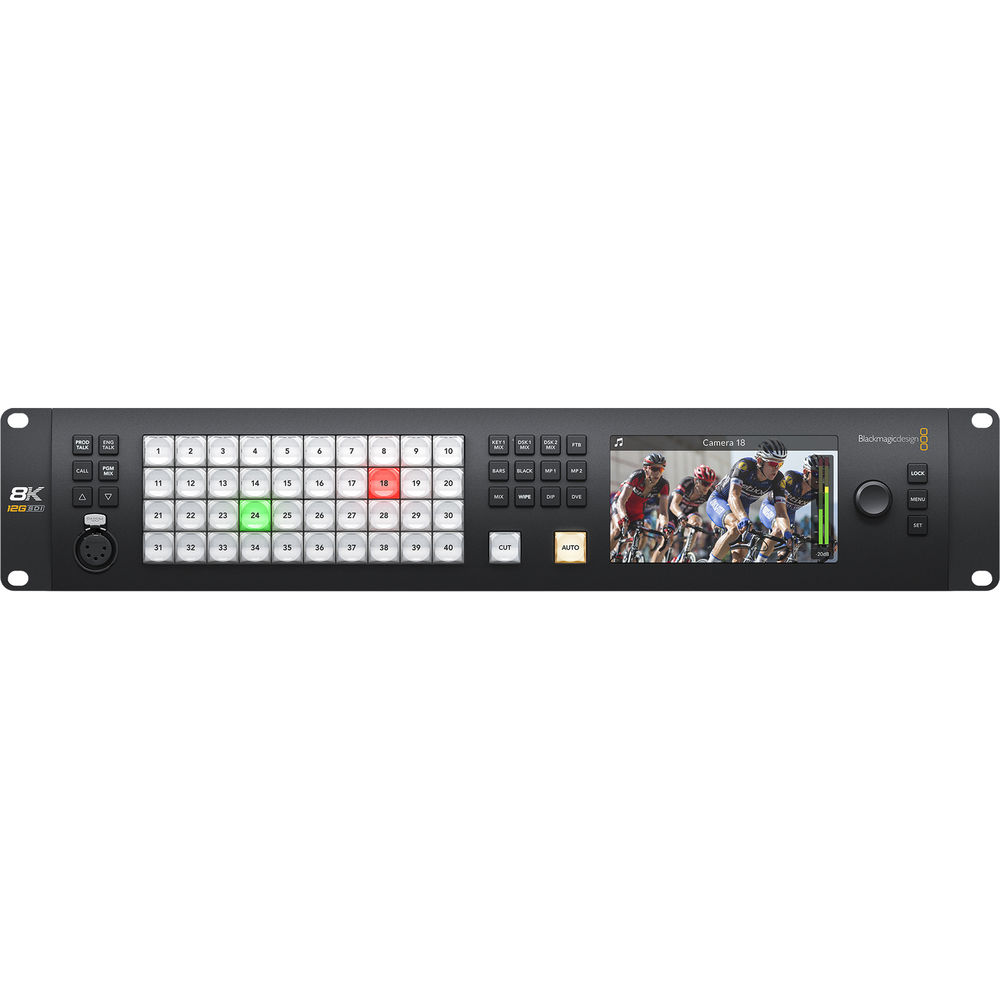

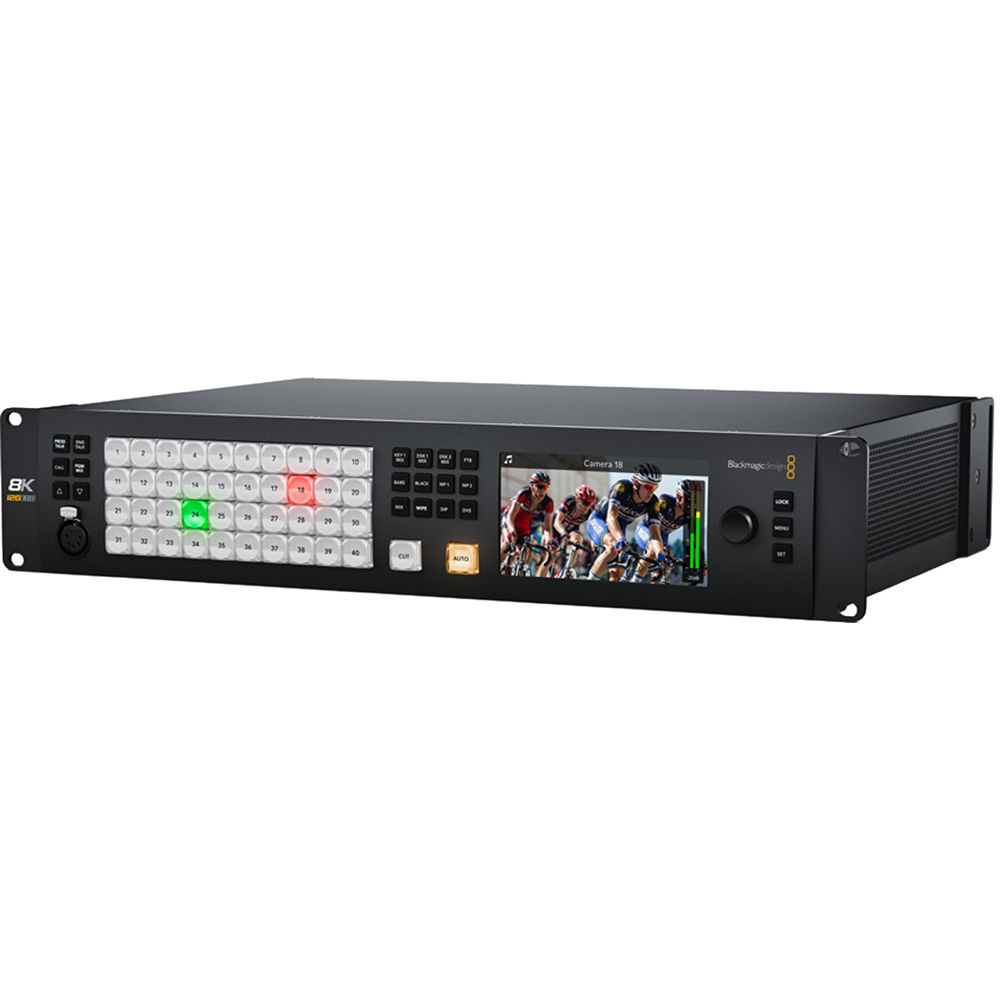

Blackmagic Design ATEM Constellation 8K

The ATEM Constellation 8K is a powerful 4 M/E live production switcher with 40 12G-SDI inputs, making it one of the most capable SDI switchers Blackmagic Design builds. It works natively in HD, Ultra HD and full 8K, so a single unit can grow with your production needs.

With 16 advanced chroma keyers, multiple SuperSource processors and a built in 156 channel audio mixer, the Constellation 8K packs an entire production studio into a compact 2 rack unit chassis.

Key Features

• 4 M/E switcher with 40 12G-SDI inputs and 24 aux outputs
• Native HD, Ultra HD and 8K operation in one unit
• 16 ATEM Advanced Chroma Keyers for clean live keying
• 2 SuperSource processors and 4 DVEs for layered effects
• 156 channel Fairlight audio mixer with EQ and dynamics
• 4 independent multi-view outputs for full monitoring

Ideal For

• Broadcast studios working across HD, Ultra HD and 8K
• Live sports and entertainment with many SDI sources
• Outside broadcast and flyaway production kits
• Large houses of worship and live events
• Facilities standardising on 12G-SDI infrastructure

Specifications

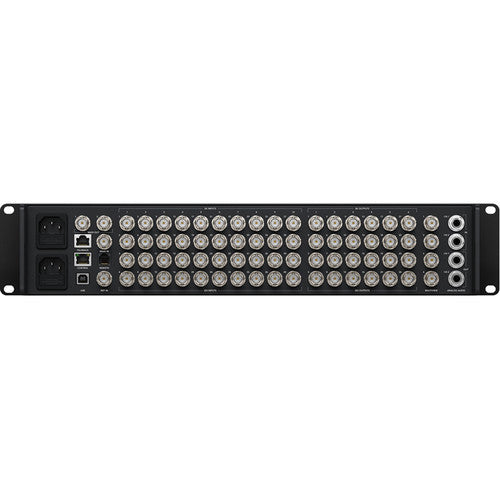

• 40 12G-SDI inputs and 24 12G-SDI aux outputs
• HD and Ultra HD up to 2160p60, 8K up to 4320p60
• 16 advanced chroma keyers, 2 SuperSource, 4 DVEs
• 300W power draw in a 2 rack unit chassis
• 10-bit 4:2:2 with Rec. 709 and Rec. 2020

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
