Blackmagic Design ATEM Monitoring Rack Panel 20

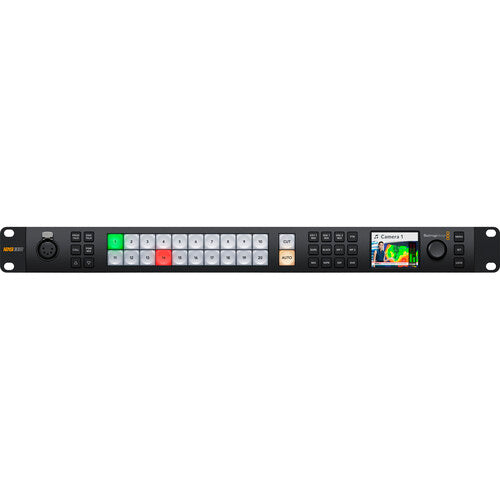

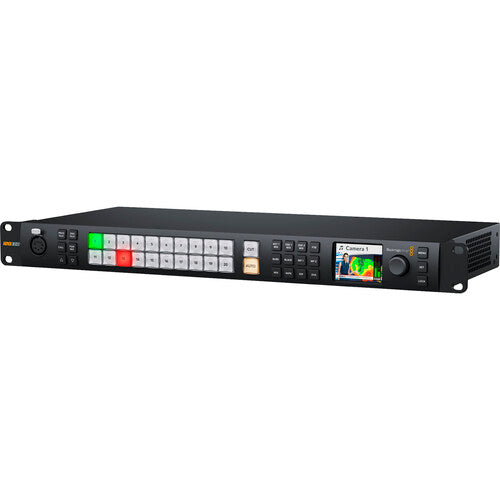

The ATEM Monitoring Rack Panel 20 is a 1RU rack mount control panel and monitoring converter built for IP based ATEM Constellation live production. It combines twenty physical source buttons for controlling a local ATEM switcher with a built in SMPTE-2110 to baseband monitoring converter, so engineers regain hands on front panel control plus local video monitoring in a single rack unit.

Redundant 10G Ethernet connections receive SMPTE-2110 IP video and convert it to 12G-SDI and HDMI outputs, with SMPTE ST 2022-7 seamless protection switching for broadcast grade reliability.

Key Features

• Twenty input buttons for direct control of a local ATEM switcher.
• Dual redundant 10G Ethernet connections for SMPTE-2110 IP video.
• SMPTE ST 2022-7 seamless protection switching for redundancy.
• Two 12G-SDI outputs and one HDMI output for local monitoring.
• Front panel LCD with real time monitoring and a 5-pin talkback interface.
• 1G Ethernet management port with NMOS support for IP control and discovery.

Ideal For

• IP based ATEM Constellation broadcast facilities.
• Outside broadcast and flypack production systems.
• Studios migrating to SMPTE-2110 workflows.
• Master control and engineering monitoring positions.

Specifications

• 1RU rack mount form factor.
• Dual redundant 10G Ethernet SMPTE-2110 inputs.
• Two 12G-SDI outputs and one HDMI output.
• Twenty source control buttons and front LCD.
• Dual 100V to 240V AC power supplies.

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
