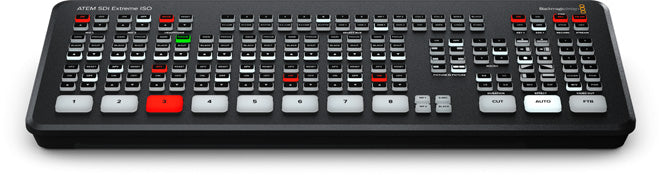

Blackmagic Design ATEM SDI Extreme ISO
Flagship 8 input 3G-SDI live switcher with multiview, SuperSource, streaming and 9 stream ISO recording.
SKU: BLA-SWATEMMXEPCEXTISO
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM SDI Extreme ISO is the flagship of the ATEM SDI family, packing 8 independent 3G-SDI inputs, advanced multiview, SuperSource compositing and a powerful Fairlight audio engine into a single compact switcher. It is designed for larger live productions that need more cameras, more monitoring and more creative effects.
It records 9 separate H.264 video streams in real time, capturing every input plus the program output, and saves a DaVinci Resolve project file so the entire show can be rebuilt and refined in post.
Key Features
- 8 x 3G-SDI inputs with re-sync and format conversion on every input
- Records 9 ISO streams in real time as H.264 .mp4 files
- Direct RTMP streaming over Ethernet or USB-C
- Configurable multiview up to 16 views
- SuperSource for picture in picture compositing
- 11 input by 2 channel Fairlight audio mixer
- 4 SDI program outputs plus 2 auxiliary outputs
Ideal For
- Large multi-camera live events and conferences
- Sports and worship productions with many SDI cameras
- Streaming studios needing full ISO capture
- Productions using SuperSource compositing
- Post workflows built on DaVinci Resolve project export
Specifications
- 8 x 3G-SDI inputs, 4 SDI program plus 2 auxiliary outputs
- HD formats up to 1080p60, 4:2:2 YUV 10-bit
- Multiview configurable to 16, 13, 10, 7 or 4 views
- 2 x USB Type-C 3.1 Gen 1, Ethernet 10/100/1000 BaseT
- External 12V DC power supply, 36W usage
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Video inputs | 8 x 3G-SDI, 10-bit HD, embedded audio |
| Video outputs | 4 x SDI program plus 2 auxiliary |
| Input processing | Re-sync and format conversion on all 8 inputs |
| HD input formats | 720p50 to 1080p60, 1080i50 to 1080i60 |
| HD output formats | 1080p23.98 to 1080p60 |
| Colour | 4:2:2 YUV, 10-bit, Rec 709 |
| Multiview | 16, 13, 10, 7 or 4 view layouts |
| Streaming | RTMP over Ethernet or USB-C |
| ISO recording | 9 streams as H.264 .mp4 up to 70Mb/s |
| Audio mixer | 11 input by 2 channel Fairlight |
| USB | 2 x USB Type-C 3.1 Gen 1 |
| Ethernet | 10/100/1000 BaseT |
| Power | External 12V DC, 36W |
| Operating temperature | 5 to 40 degrees Celsius |
Eight Cameras, One Box
Connect up to eight 3G-SDI cameras, each with automatic re-sync and format conversion. This lets you mix sources that do not perfectly match without external converters.
Nine Stream ISO Recording
Record all eight clean inputs plus the program output as separate H.264 files in real time. A DaVinci Resolve project is saved automatically so the show can be re-edited later.
Multiview and SuperSource
A configurable multiview with up to 16 views keeps every source on one monitor. SuperSource adds picture in picture compositing for polished, layered live graphics.
