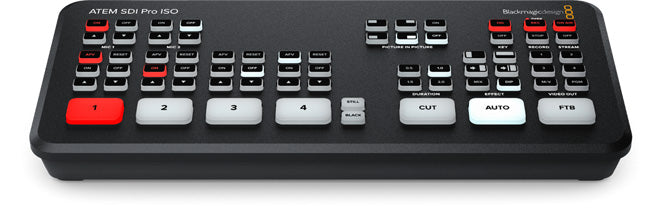

Blackmagic Design ATEM SDI Pro ISO
Compact 4 input 3G-SDI live switcher with built-in streaming, ISO recording and a full Fairlight audio mixer.
SKU: BLA-SWATEMMXEPBPRISO
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The ATEM SDI Pro ISO is a professional live production switcher built for SDI based broadcast and event workflows. It combines 4 independent 3G-SDI inputs, a built-in hardware streaming engine, multi-channel ISO recording and a full Fairlight audio mixer in a single compact unit.
Every camera input can be recorded as its own clean ISO file alongside the program output, and the switcher even saves a ready to edit DaVinci Resolve project so editors can rebuild and refine the live edit afterwards.
Key Features
- 4 x 3G-SDI inputs with 10-bit HD switching and embedded audio
- Direct live streaming via RTMP over Ethernet or USB-C
- Records all 4 SDI inputs plus program as H.264 .mp4 ISO files
- Generates a DaVinci Resolve project file for fast re-editing
- Full Fairlight audio mixer with compressor, gate, limiter and 6-band EQ
- 2 x SDI program outputs plus an auxiliary output
Ideal For
- Live event and conference production
- Multi-camera streaming to social and broadcast platforms
- Sports and church services with SDI camera chains
- Studios needing ISO recordings for post production
- Productions wanting a re-editable DaVinci Resolve timeline
Specifications
- 4 x 3G-SDI inputs, 2 x SDI program outputs plus 1 auxiliary
- HD formats up to 1080p60, 4:2:2 YUV 10-bit
- Ethernet 10/100/1000 BaseT and USB Type-C 3.1 Gen 1
- 6 input by 2 channel Fairlight audio mixer
- External 12V DC power supply, 36W usage
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Video inputs | 4 x 3G-SDI, 10-bit HD, embedded audio |
| Video outputs | 2 x SDI program plus 1 auxiliary |
| HD input formats | 720p50 to 1080p60, 1080i50 to 1080i60 |
| HD output formats | 1080p23.98 to 1080p60 |
| Colour | 4:2:2 YUV, 10-bit, Rec 709 |
| Streaming | RTMP over Ethernet or USB-C |
| ISO recording | 4 SDI inputs plus program as H.264 .mp4 |
| Audio mixer | 6 input by 2 channel Fairlight |
| Audio inputs | 2 x 3.5mm stereo plus 4 x SDI embedded |
| Ethernet | 10/100/1000 BaseT |
| USB | 1 x USB Type-C 3.1 Gen 1 |
| Power | External 12V DC, 36W |
| Operating temperature | 5 to 40 degrees Celsius |
| Warranty | 1 year limited |
Stream Direct to Air
A built-in hardware streaming engine sends your program feed straight to platforms using RTMP over Ethernet or USB-C. There is no separate computer or encoder required.
ISO Record Every Camera
All four SDI inputs and the program output are recorded as individual H.264 files. The switcher also saves a DaVinci Resolve project so the whole show can be re-edited later.
Broadcast Grade Audio
The integrated Fairlight mixer gives you a compressor, gate, limiter and 6 bands of parametric EQ on every channel. Mix analog and embedded SDI audio together with full control.
