Blackmagic Design ATEM Streaming Bridge
Converts an H.264 stream from an ATEM switcher back to SDI and HDMI video for remote contribution over Ethernet.
SKU: BLA-SWATEMMINISBPR
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

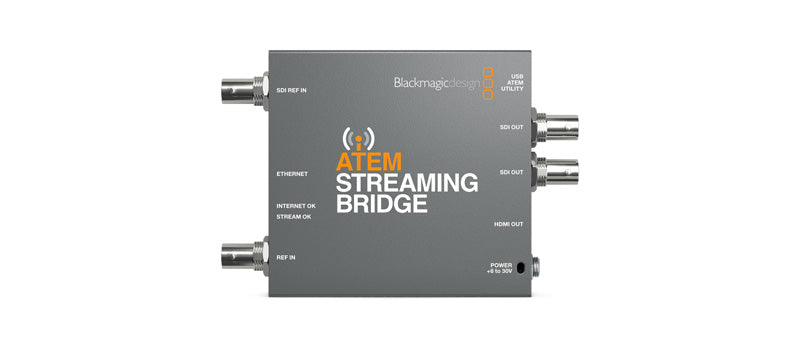

The ATEM Streaming Bridge is a compact video converter that receives an H.264 stream over Ethernet from an ATEM Mini Pro or ATEM SDI switcher and converts it back to SDI and HDMI video. It lets you send a live feed to a remote location anywhere on your local network or, with the right setup, across the internet.
Because it uses efficient H.264 compression, you get high quality video at very low data rates, making remote contribution and overflow rooms simple and reliable.
Key Features
- Converts an incoming H.264 stream back to SDI and HDMI
- 2 x 3G-SDI outputs plus an HDMI type A output
- Receives RTMP streams from ATEM Mini, ATEM SDI and Web Presenter
- SDI reference input with black burst and tri-sync
- Works across a local network or the wider internet
- Very low power draw at just 6W maximum
Ideal For
- Remote contribution feeds between venues
- Overflow rooms and second screen relays
- Distributing a live program over Ethernet
- Connecting ATEM Mini Pro streams to SDI infrastructure
- Multi-site events and campuses
Specifications
- 2 x 3G-SDI outputs plus HDMI type A output
- HD formats from 1080p23.98 to 1080p60 and 1080i
- Ethernet 10/100/1000 BaseT, USB Type-C for configuration
- H.264 codec, embedded 2 channel audio
- Power 6 to 30V DC, 6W maximum, 12V supply included
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI output | 2 x 3G-SDI |
| HDMI output | 1 x HDMI type A |
| SDI reference input | 1 x 3G-SDI, black burst and tri-sync |
| HD formats | 1080p23.98 to 1080p60, 1080i50 to 1080i60 |
| Stream input | RTMP from ATEM Mini, ATEM SDI, Web Presenter |
| Codec | H.264 compression |
| Audio | 2 channels embedded in SDI and HDMI |
| SDI colour | 10-bit YUV |
| Ethernet | 10/100/1000 BaseT |
| USB | 1 x USB Type-C for configuration |
| Power consumption | 6W maximum |
| Voltage range | 6 to 30V DC |
| Power supply | 12V universal, international adapters |
| Warranty | 1 year limited |
Stream Back to SDI
Receive a compressed H.264 feed over Ethernet and convert it straight back to clean 3G-SDI and HDMI. This bridges streaming workflows into traditional broadcast infrastructure.
Remote Locations Made Easy
Send a live program to another room, building or city over your network or the internet. Efficient H.264 compression keeps the data rate low while preserving picture quality.
Compact and Efficient
Drawing just 6W maximum, the bridge runs cool and quiet from a wide 6 to 30V DC range. An SDI reference input with black burst and tri-sync keeps it locked to your facility.
